Dual-Petal LED Surgical Operating Light YDE700/500

● Advanced LED optical system for bright, uniform and low-glare illumination.

● Ultra-thin hollow design with excellent laminar airflow compatibility.

● Intelligent control with electronic focus and color compensation technology.

DESCRIPTION

● Utilizes advanced LED cold light technology, with each LED module equipped with an independent optical lens for precise light focusing and uniform illumination.
● Features a new diamond-surface lens design with optimized optics for enhanced light efficiency, reduced glare, and improved visual comfort.
● The ultra-thin hollow lamp head provides excellent laminar airflow penetration and complies with DIN 1946-4 requirements for laminar flow operating rooms.
● Equipped with two integrated operating handles, allowing convenient positioning while minimizing contamination retention for easier cleaning and sterilization.
● The premium spring arm system is durable, lightweight and flexible, enabling 360° rotation and precise positioning for various operating room layouts.
● Electronic focusing function allows convenient spot size adjustment via the control panel for optimal surgical illumination.
● Automatic illumination compensation technology intelligently offsets shadow obstruction to maintain ideal brightness in the surgical field.
● Dual lamp mutual control function enables synchronized control of another surgical light’s power, brightness, color temperature and spot size via touchscreen interface.
● RGB color compensation technology enhances red and green spectrum rendering for improved vascular tissue recognition, optimized color performance, and better clinical visualization.

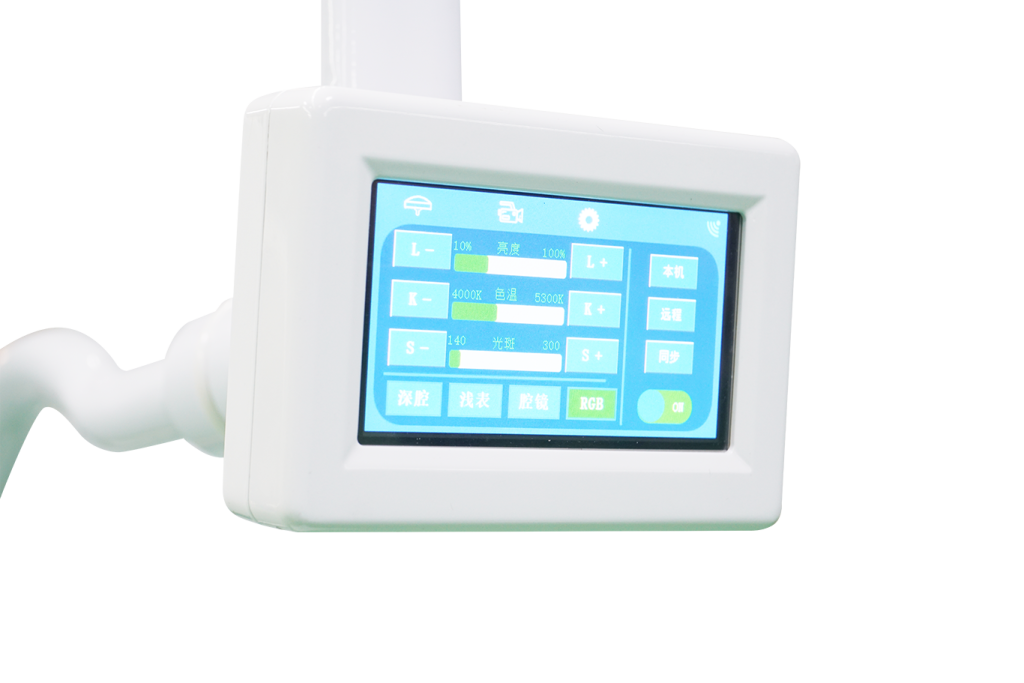

● The LCD control panel allows easy adjustment of power, illuminance and color temperature, while the high-quality ABS housing offers corrosion resistance and supports 134°C steam sterilization of the central handle.

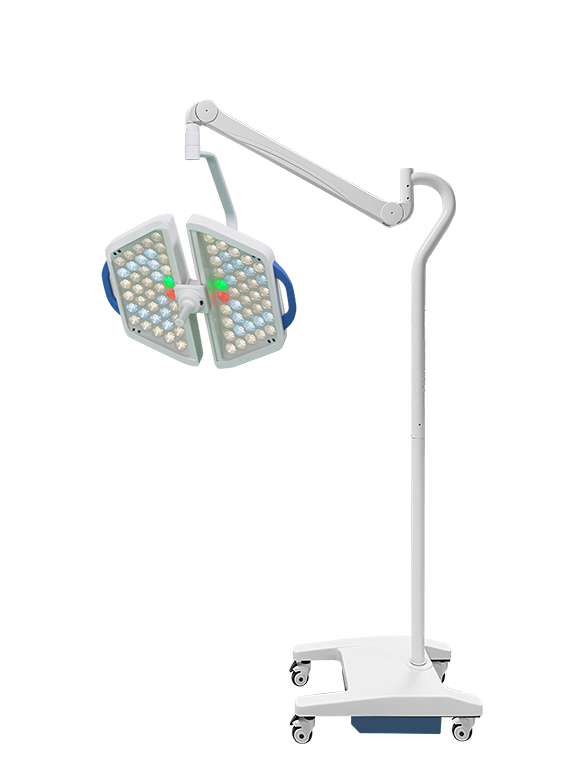

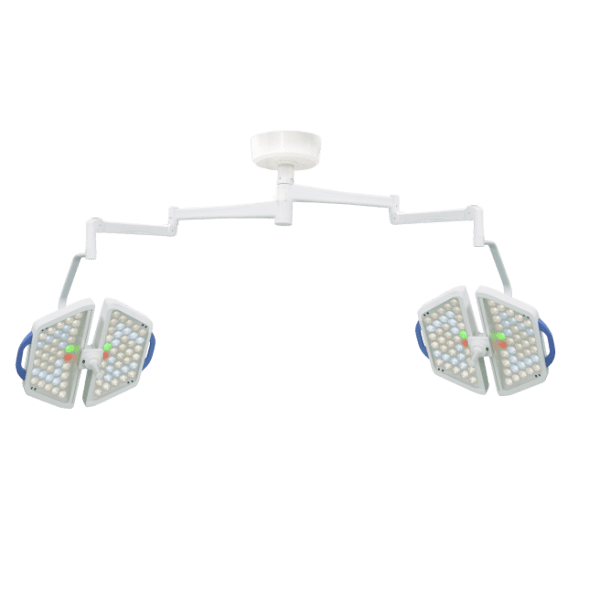

Dual-petal LED surgical operating light YDE700/500

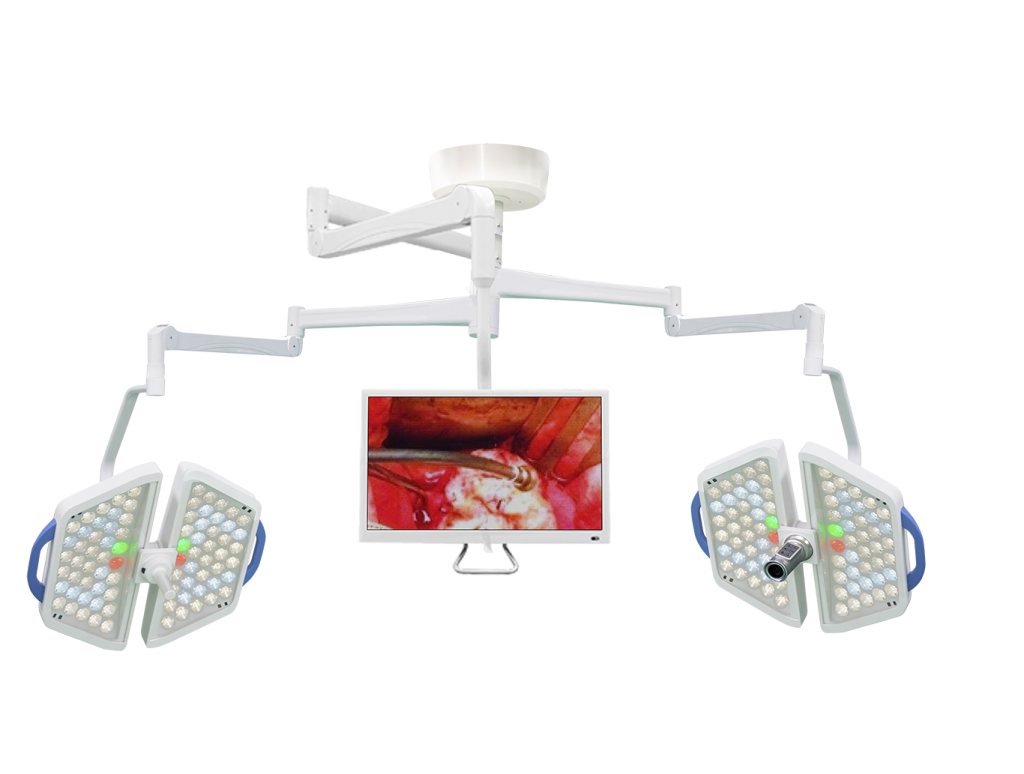

Modern surgical lighting system YDE700/500

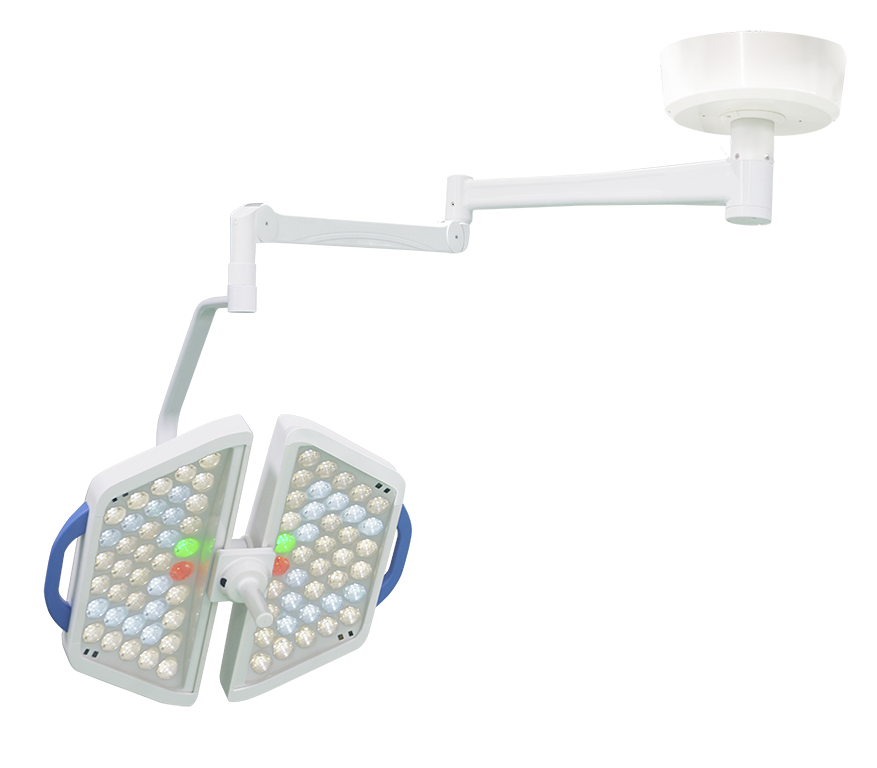

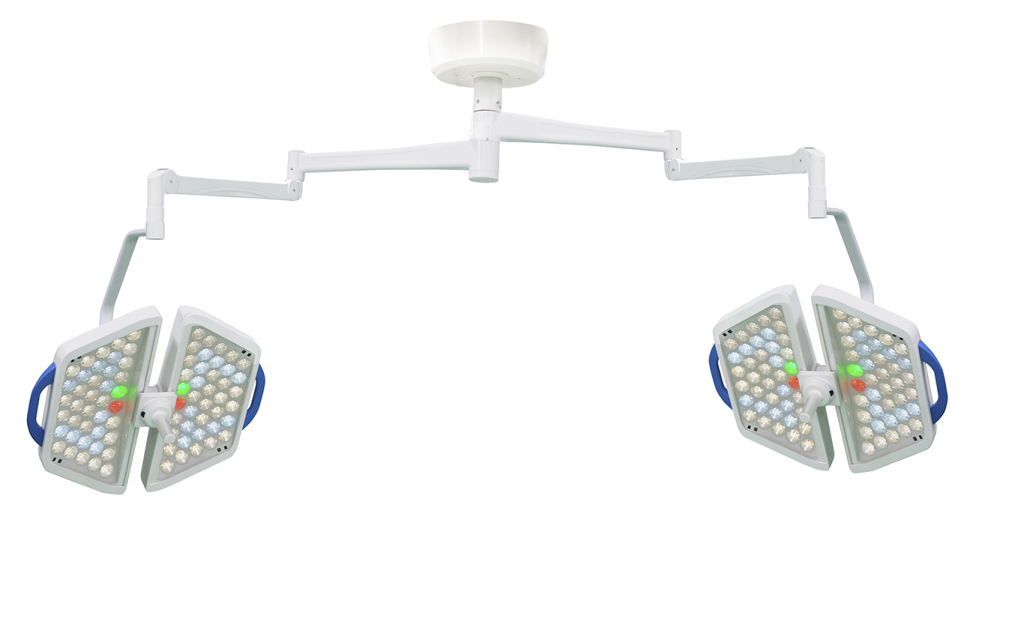

LED operating room surgical light

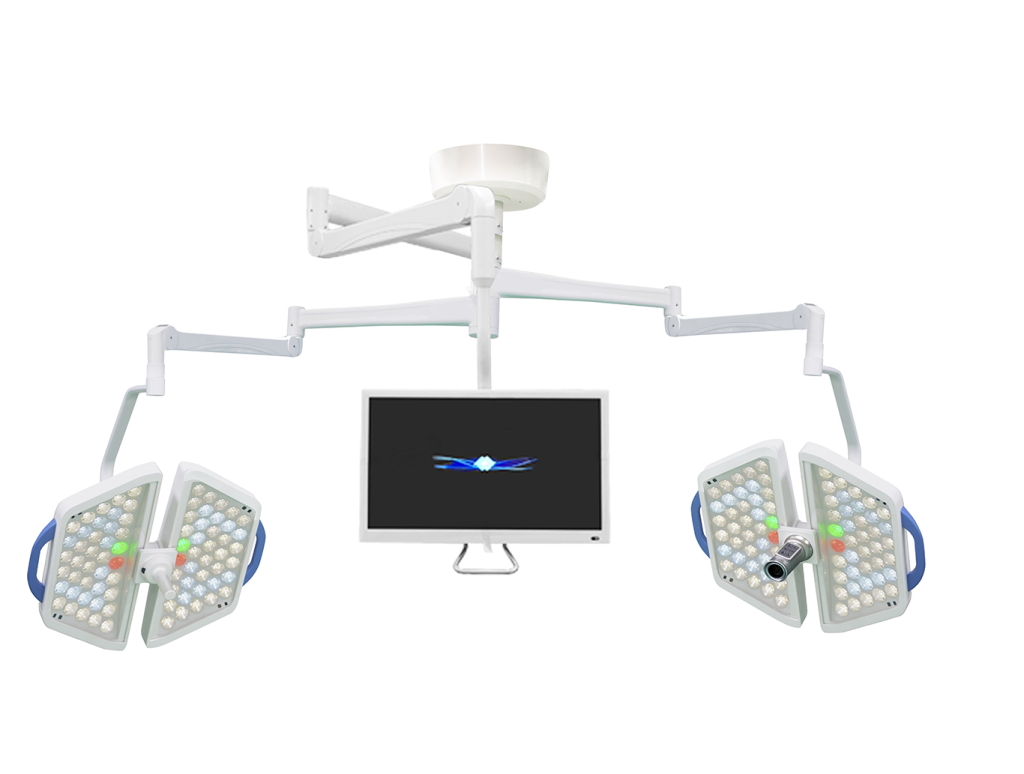

LED operating room surgical light

LED operating room surgical light

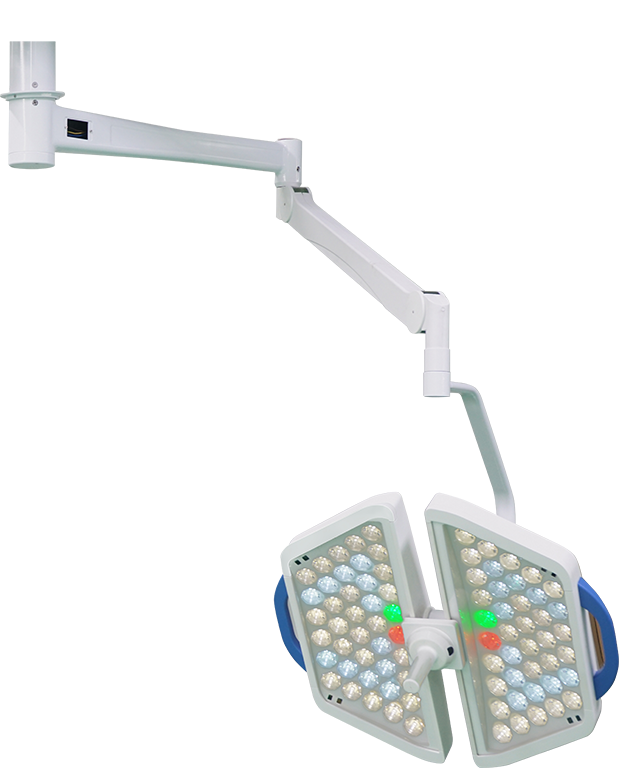

LED operating room surgical light adjustable brightness

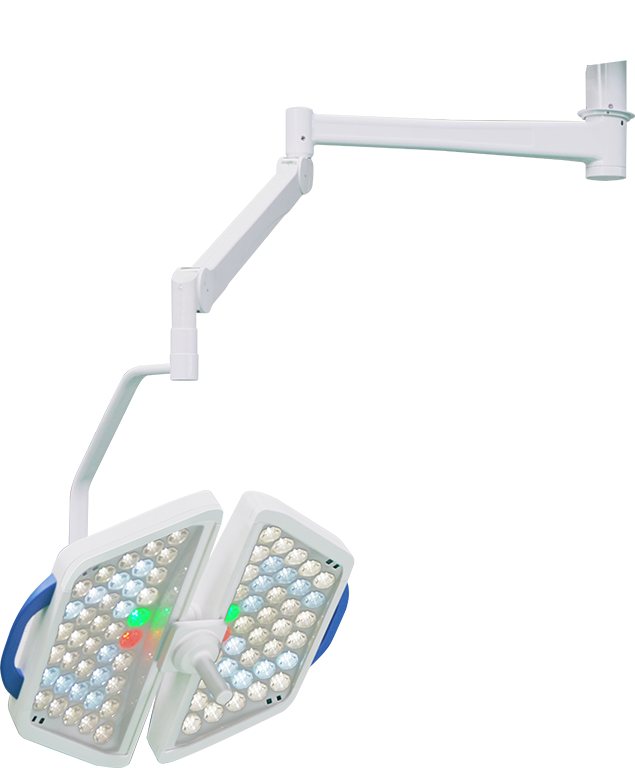

Hospital shadowless OT lamp YDE700/500

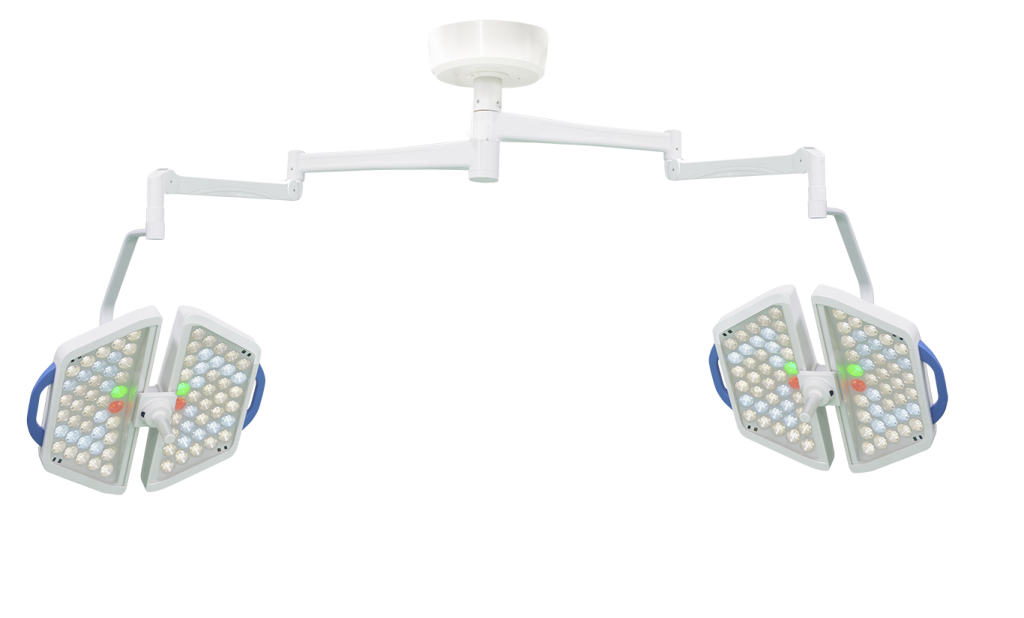

Dual-petal LED surgical operating light YDE700/500

PARAMETER

Parameter Unit 700 Lamp Head (I) 700 Lamp Head (II)
Central Illuminance Lux 40,000–160,000 40,000–160,000
Color Temperature K 4000–5700 4000–5700
Color Rendering Index (CRI, Ra) ≥96 ≥96
Light Field Depth mm ≥1100 ≥1100
Irradiance at Wavelength <400 nm W/m² ≤0.006 ≤0.006
Focus Adjustment Electronic Focusing Electronic Focusing
LED Configuration W / pcs 1 W × 80 LEDs 1 W × 80 LEDs
Power Supply AC 220 V, 50 Hz AC 220 V, 50 Hz
Input Power W 100 100
Average LED Service Life h 100,000 100,000
Minimum Installation Height m 2.8 2.8

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
