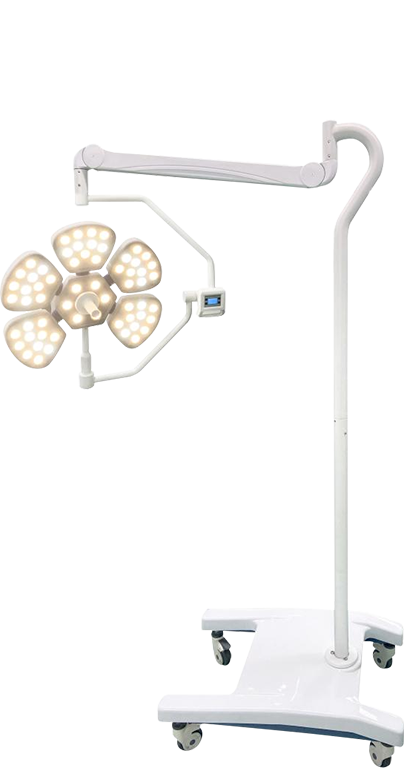

Petal-Type Mobile LED Surgical Operating Light YDE500D

● Flicker-free DC power for reliable, efficient operation.

● Low-heat streamlined design with stable and flexible positioning.

● Premium OSRAM LED for bright, clear and shadow-free illumination.

DESCRIPTION

● The petal-series surgical light supports vertical cyclic movement, allowing flexible height and angle adjustment for various surgical needs.
● Built with multiple high-brightness white LED modules connected in independent parallel groups, ensuring continuous operation even if one LED module fails.
● Equipped with premium OSRAM LED chips and a specialized optical system, delivering 360° uniform shadow-free illumination with excellent clarity and tissue color reproduction.
● Provides stable color temperature under all brightness levels, ensuring consistent illumination quality throughout procedures.
● LED cold light technology is mercury-free, impact-resistant, and emits no infrared or ultraviolet radiation for safer surgical lighting.
● The flat streamlined lamp head produces minimal heat and reduces airflow disturbance, making it ideal for modern laminar airflow operating rooms.
● Features a high-quality balancing system that prevents arm drift and ensures smooth, stable positioning during operation.
● Finished with advanced AkzoNobel anti-glare powder coating, offering corrosion resistance, durability, and easy cleaning.
● The aerodynamic full-arm design minimizes turbulence and fully complies with modern operating room airflow standards.
● Powered by pure DC supply, eliminating flicker, reducing eye fatigue, and preventing harmonic interference with surrounding medical equipment.

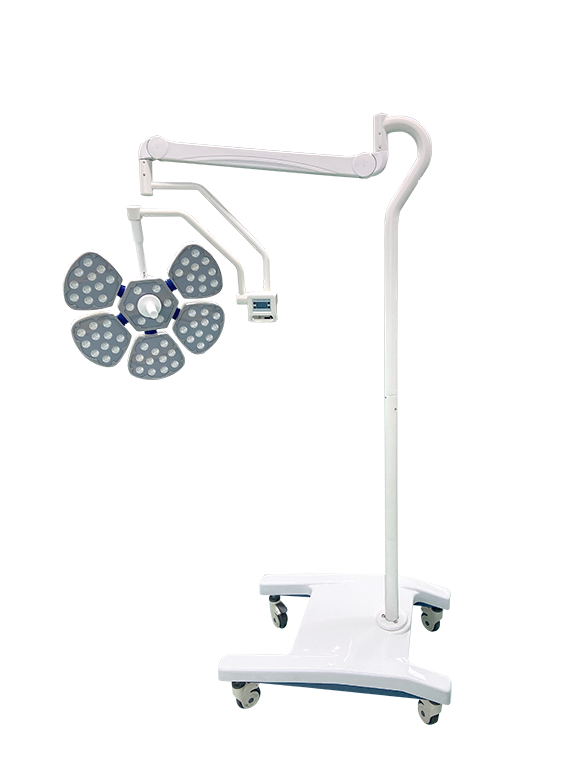

Petal-type mobile LED surgical operating light YDE500D

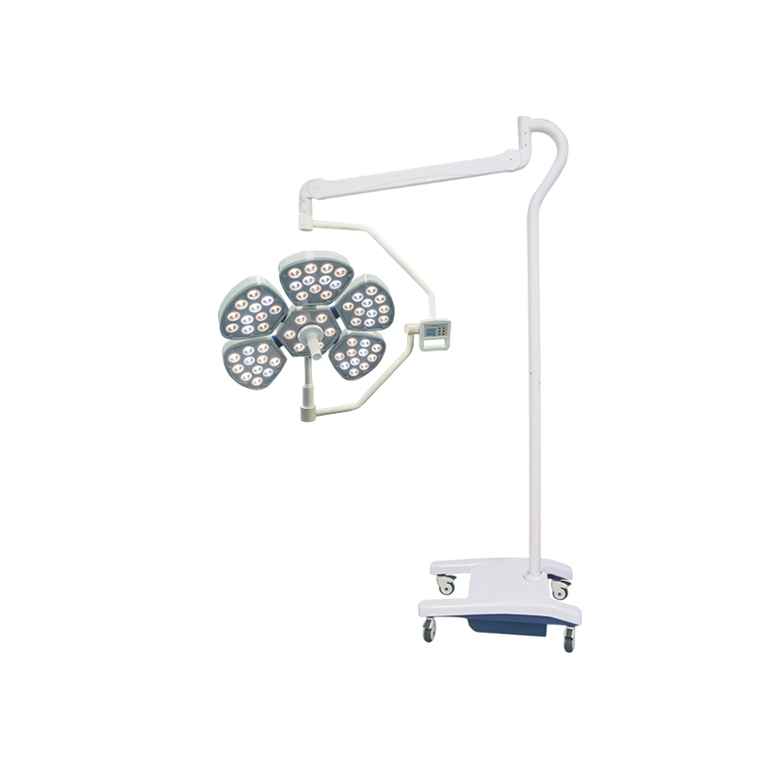

Petal-type mobile LED surgical operating light YDE500D

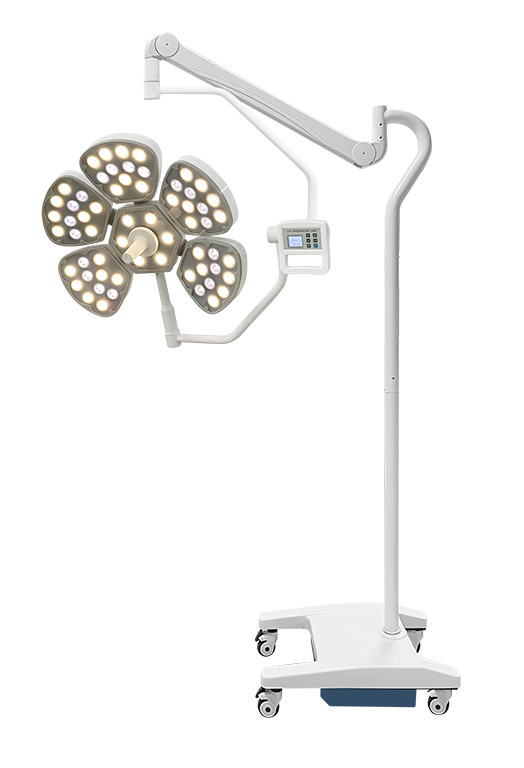

Petal-type mobile LED surgical operating light YDE500D

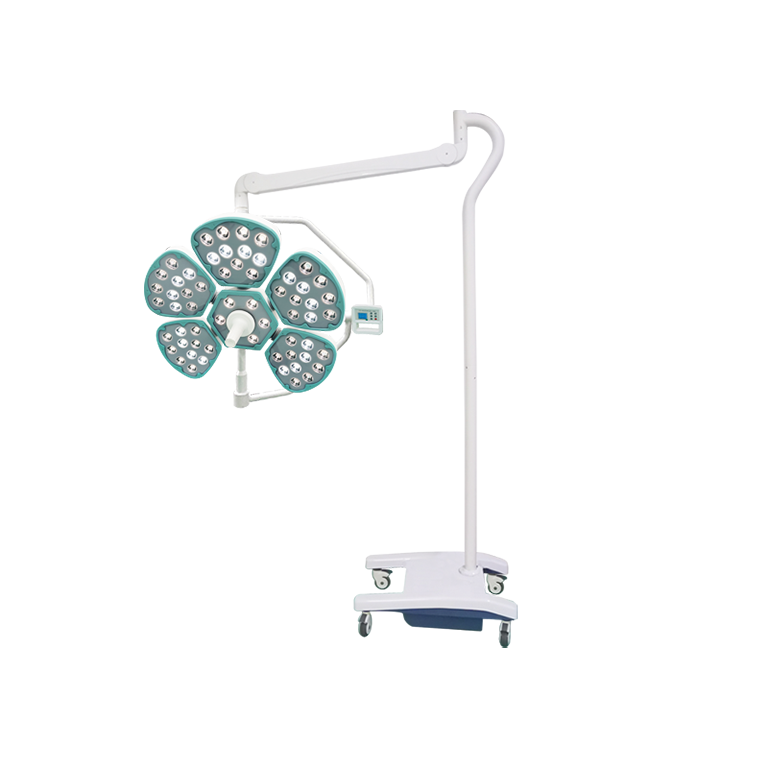

Petal-type mobile LED surgical operating light YDE500D

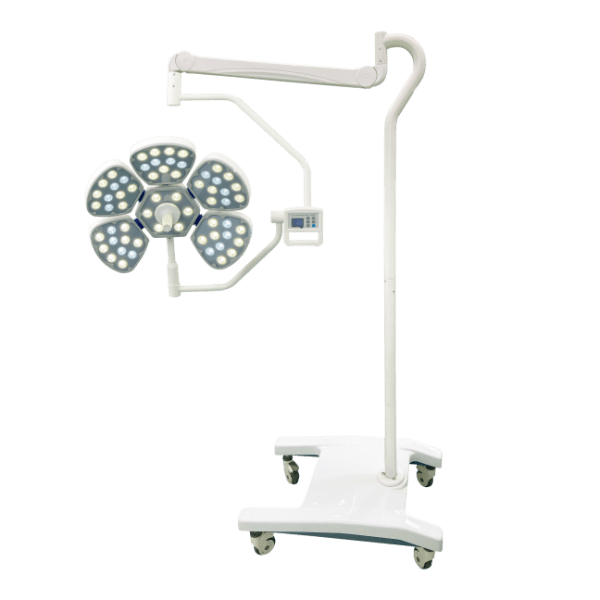

Petal-type mobile LED surgical operating light YDE500D

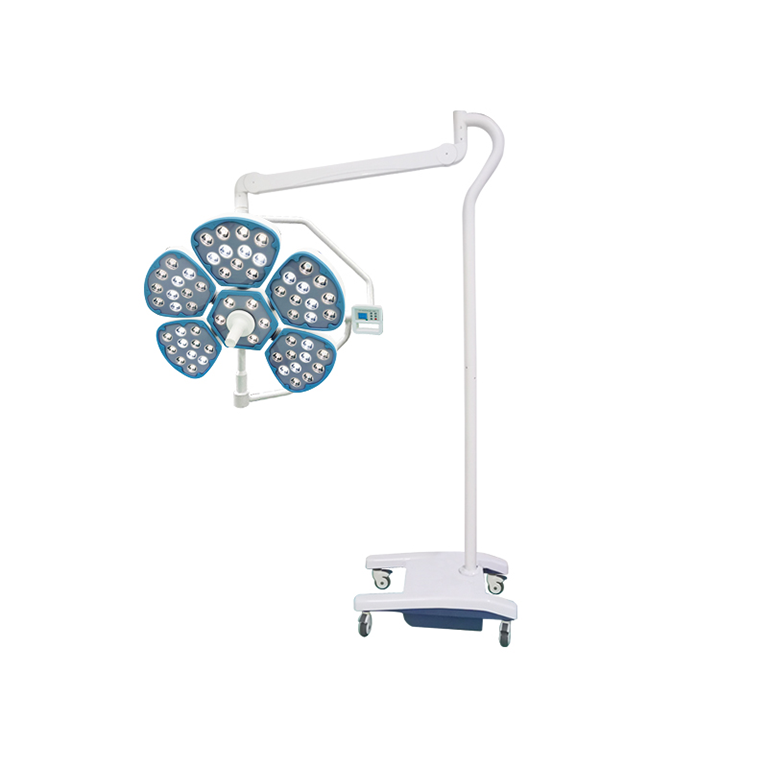

Petal-type mobile LED surgical operating light YDE500D

PARAMETER

Parameter Unit 700 Lamp Head (5-Petal Design)
Central Illuminance Lux ≤160,000
Color Temperature K 4300 ±500
Light Spot Diameter mm 100–300
Color Rendering Index (CRI, Ra) ≥90
Light Field Depth mm 1100
Operating Voltage / Rated Power V / W 220 / 100
Endoscopy Mode Standard
Average LED Service Life h 100,000

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
