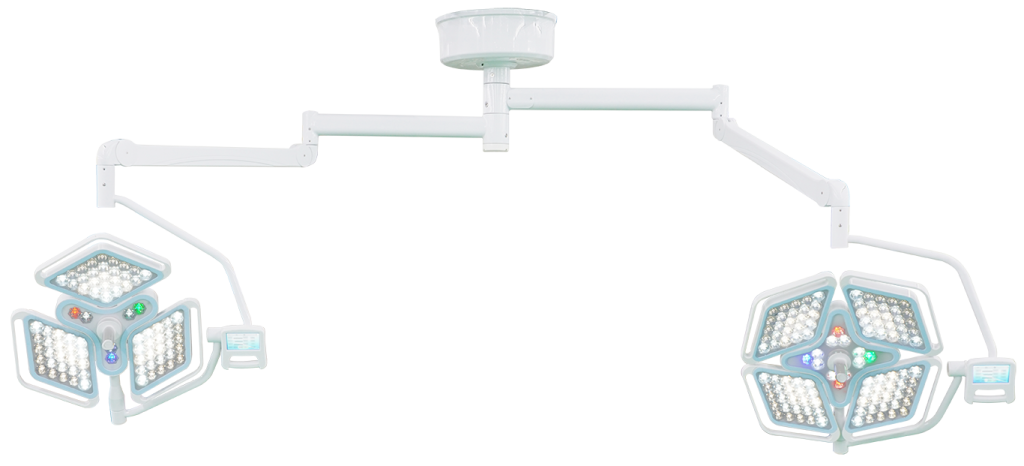

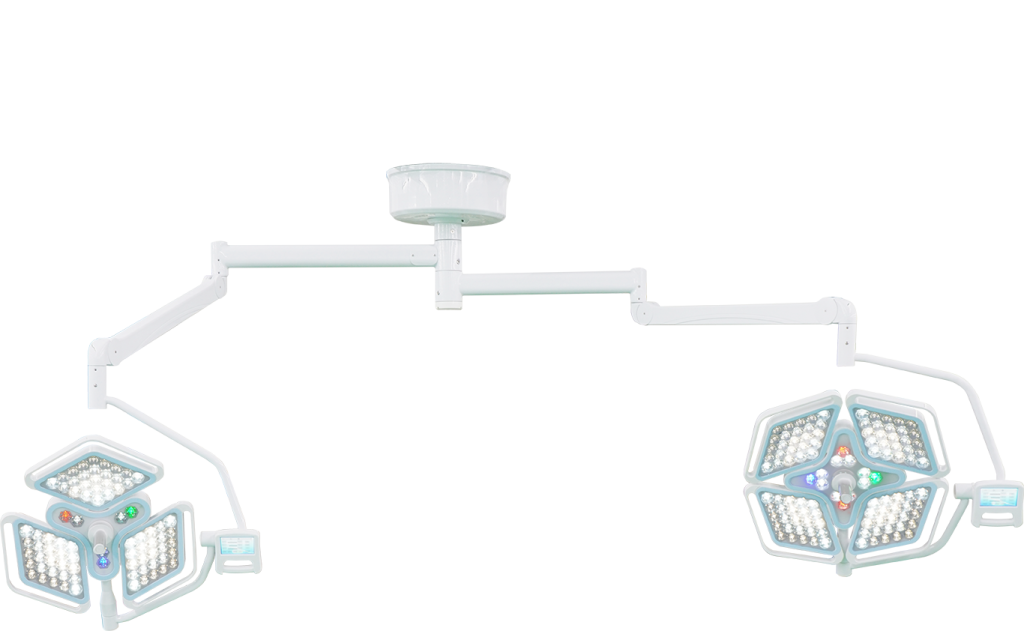

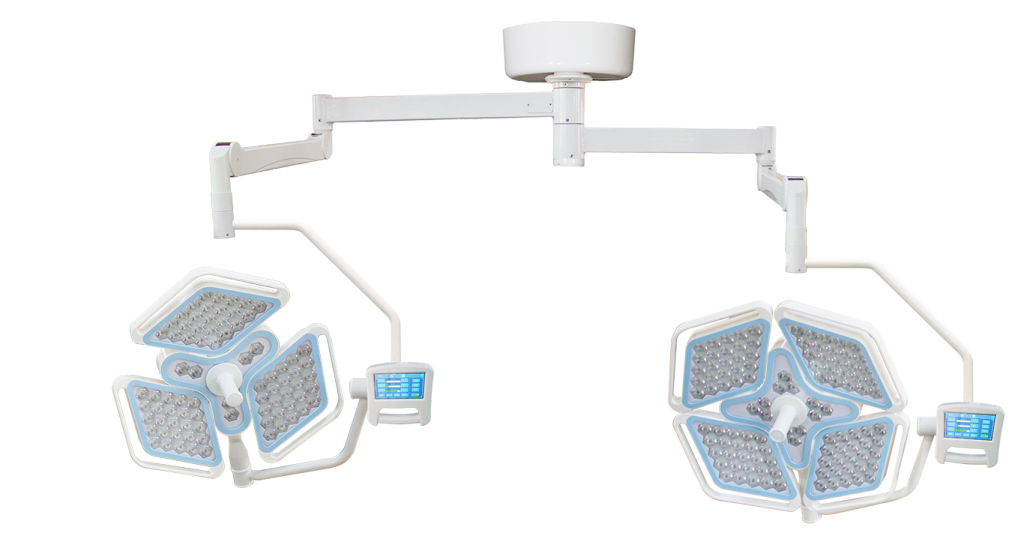

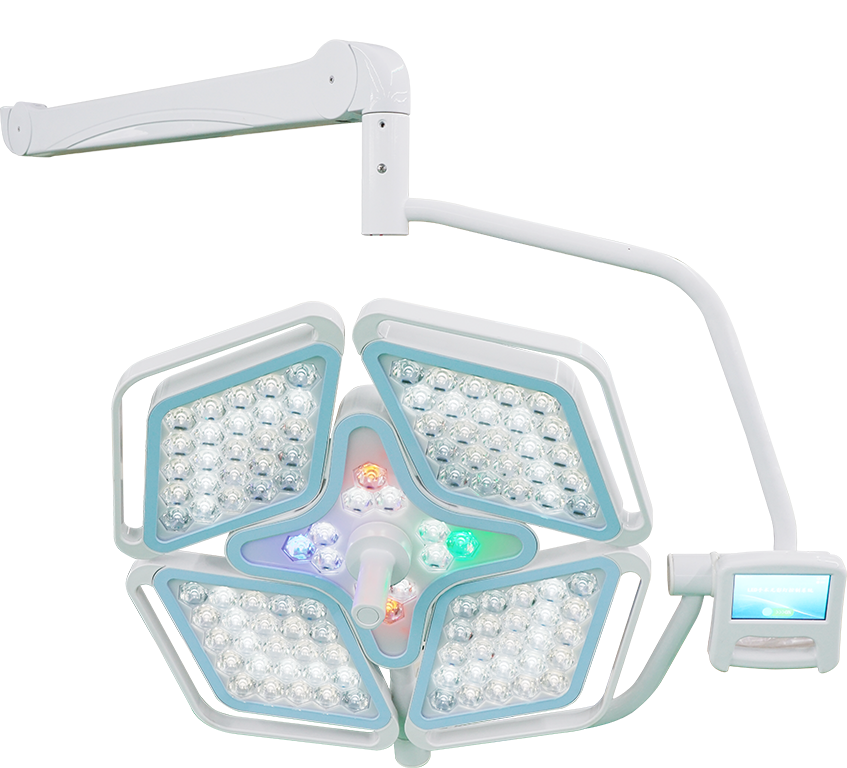

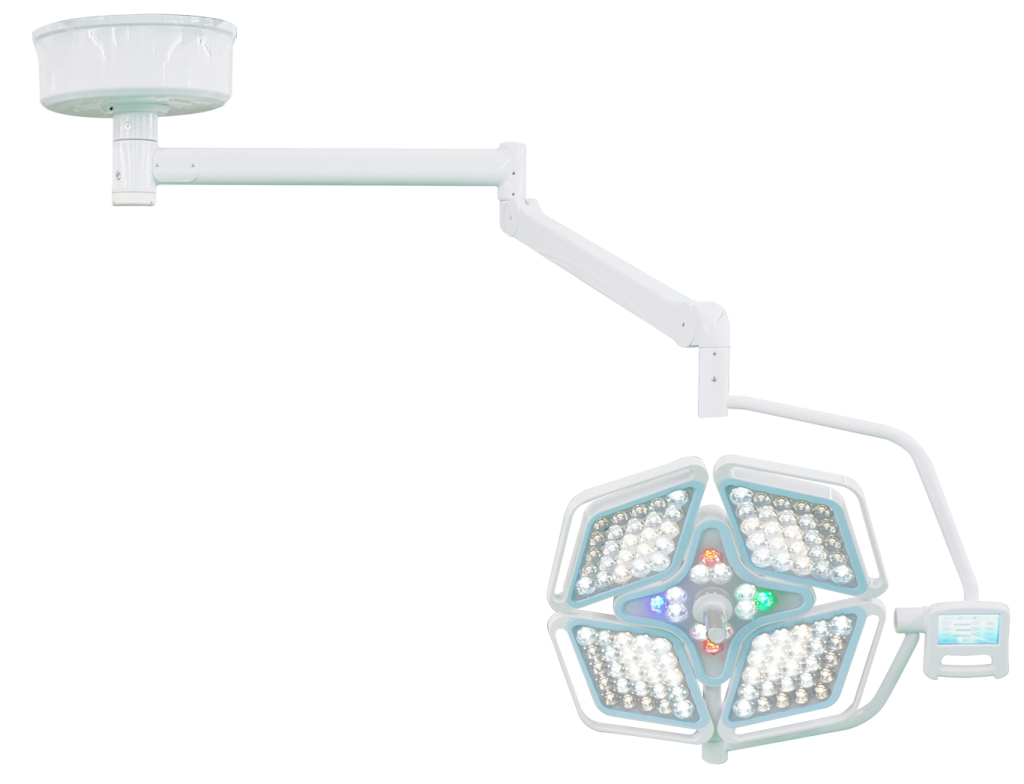

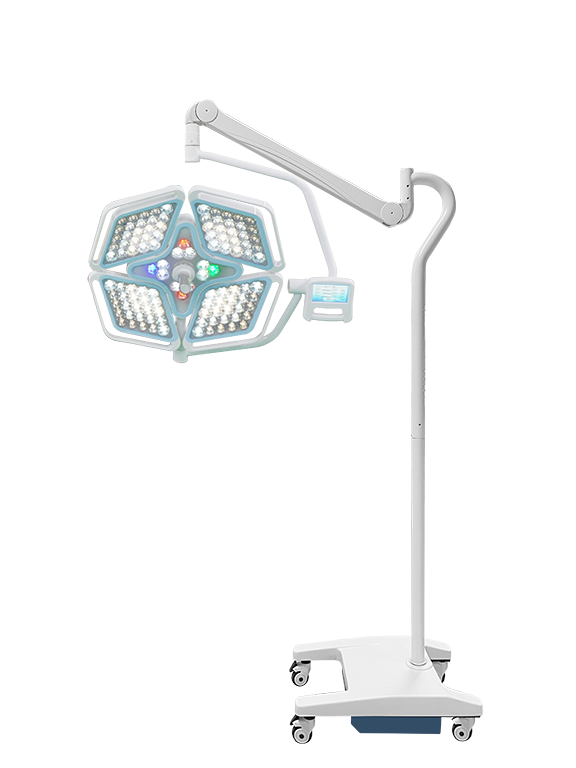

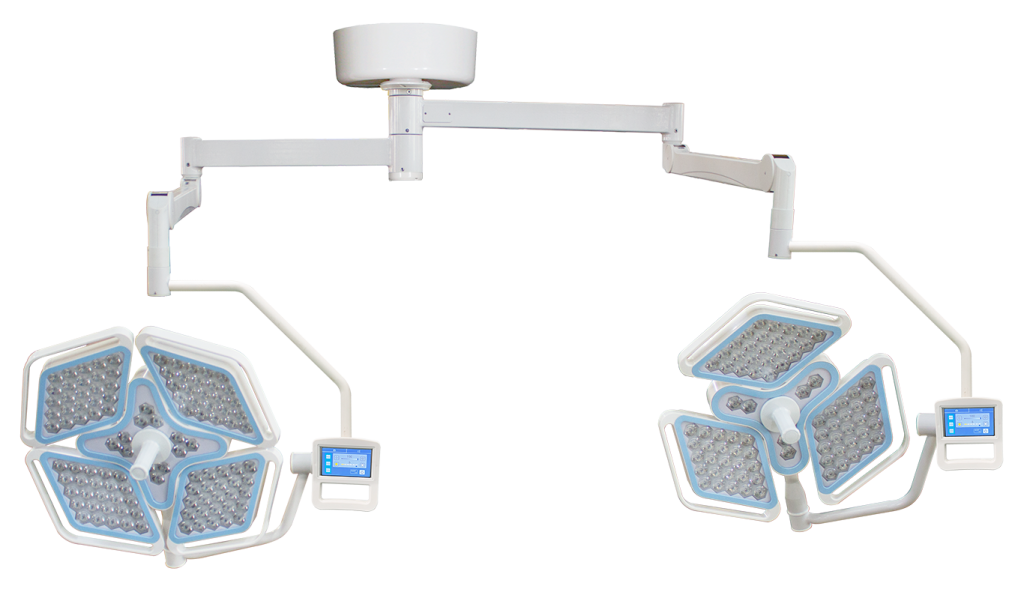

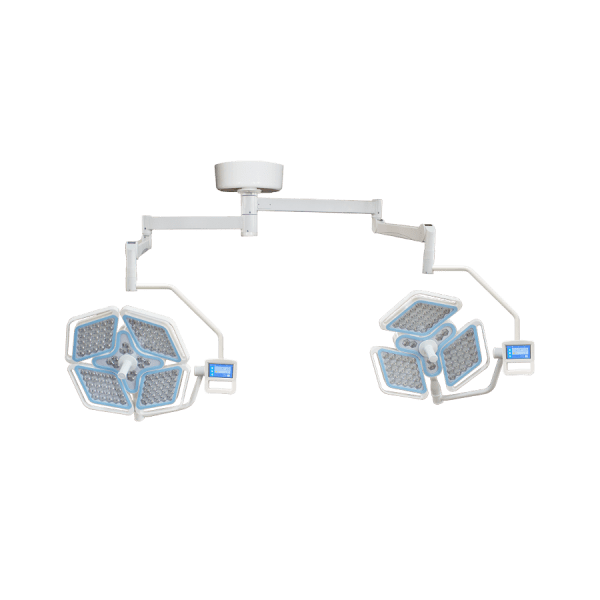

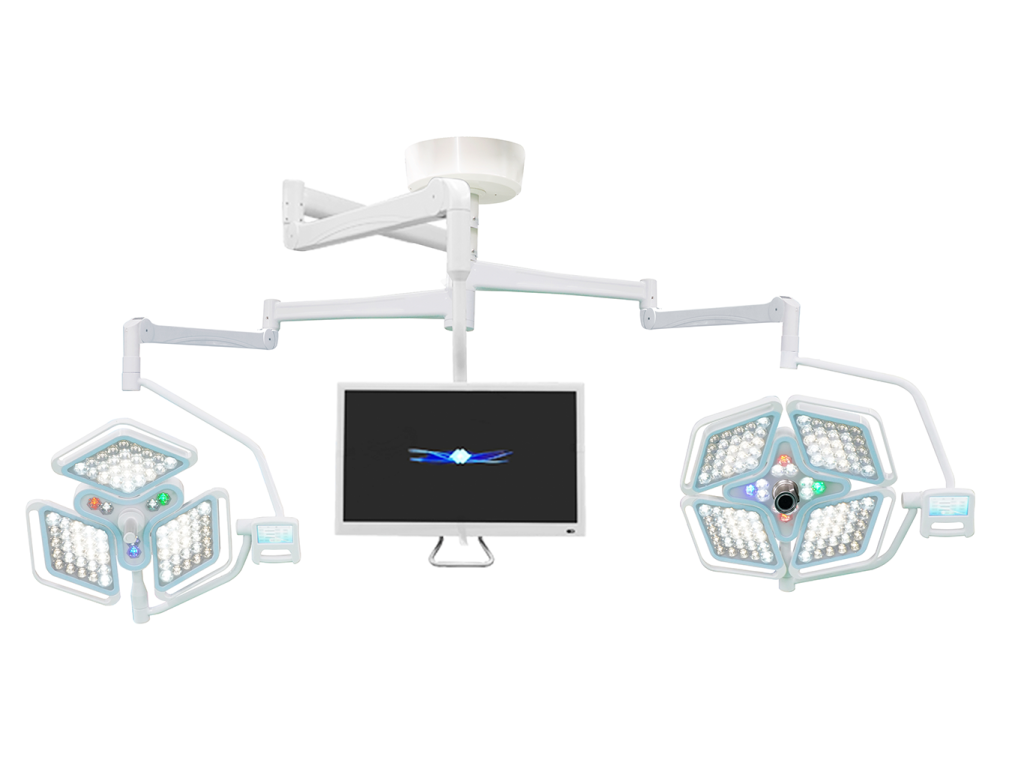

Diamond-Shaped LED Surgical Operating Light YDE700/500

● Ultra-thin laminar flow design with intelligent control system.

● Advanced LED cold light source with long lifespan and minimal heat rise.

● Deep, shadow-free illumination with adjustable focus and color temperature.

DESCRIPTION

● Modern laminar flow lamp head with ultra-thin petal-shaped design (≤100 mm thickness), delivering excellent airflow performance; high-quality ABS housing offers superior corrosion, acid and alkali resistance for extended service life.
● Advanced imported LED cold light source provides energy-efficient, eco-friendly illumination with a lifespan of up to 60,000 hours, while maintaining minimal heat rise at the surgeon’s head (<1°C).
● True cold light technology produces no infrared or ultraviolet radiation, minimizes tissue heating, promotes wound healing, and delivers stable color temperature with soft, natural daylight-like illumination.
● Precision focusing system with manual stepless focus adjustment for easy operation; detachable handle supports high-temperature sterilization (≤160°C).
● Deep illumination performance with modular multi-LED optical design, achieving over 1200 mm illumination depth, central illuminance up to 160,000 lux, and adjustable color temperature from 3700K–5000K.
● Superior shadow control through scientific arc design and multi-point light source distribution, ensuring uniform illumination and excellent shadow reduction even under partial obstruction.
● Advanced LCD control system with adjustable power, illuminance and color temperature, plus digital memory function for quick recall of preferred lighting settings.

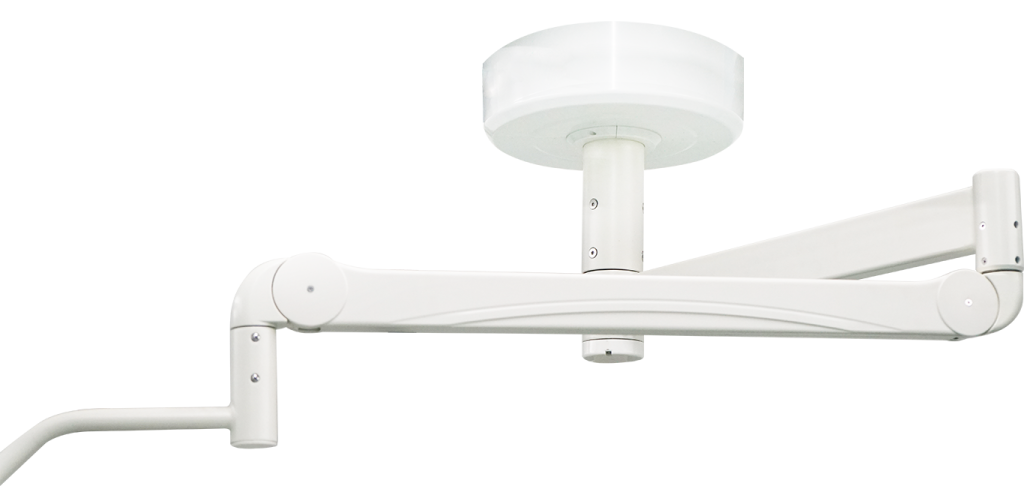

● Universal suspension system with lightweight alloy arm, precision positioning, wide adjustment range, and fatigue correction mechanism for long-term stable operation.

PARAMETER

Parameter Specification
Number of LED Bulbs 112 pcs / 81 pcs
Central Illuminance 80,000–160,000 Lux / 60,000–140,000 Lux
Color Temperature 3700–5000 K
Light Spot Diameter 160–350 mm
Color Rendering Index (CRI) 85–98 (adjustable)
Light Field Depth ≥1200 mm
Temperature Rise at Surgeon’s Head <1°C
Power Supply AC 100–240 V, 50/60 Hz
Input Power 400 W

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
