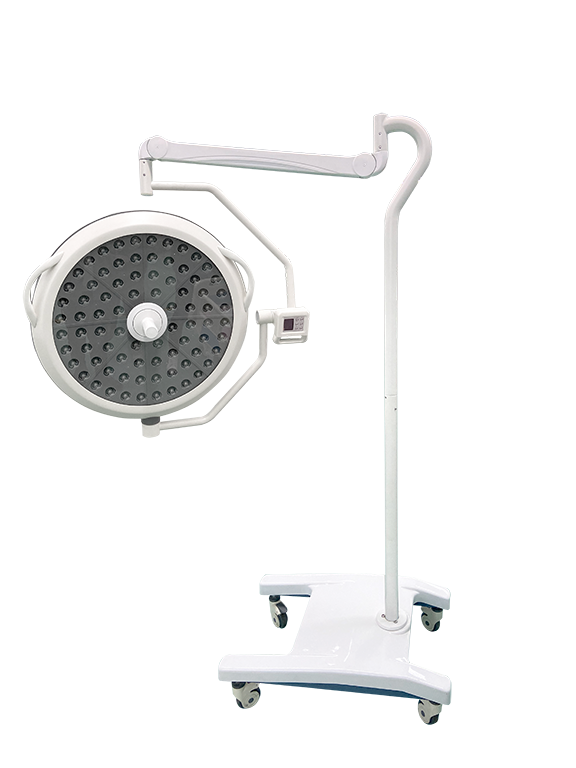

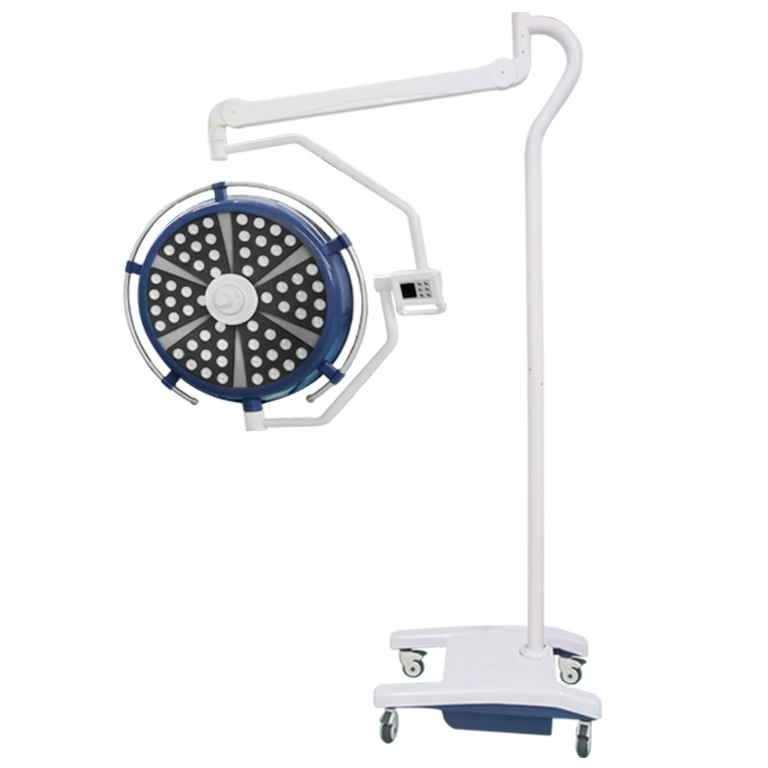

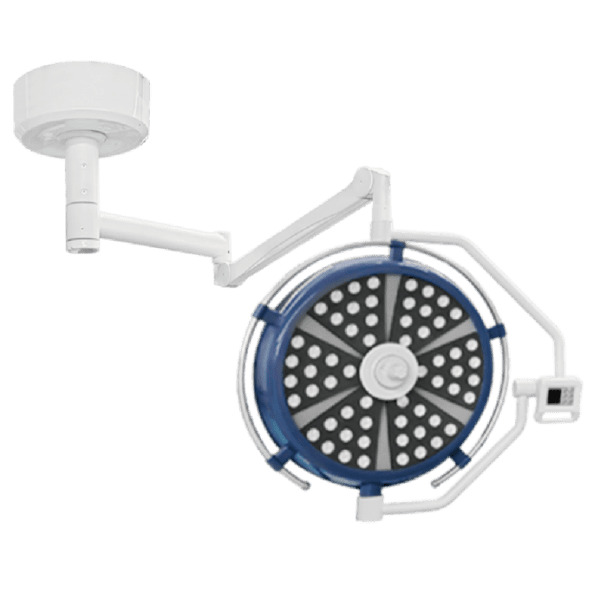

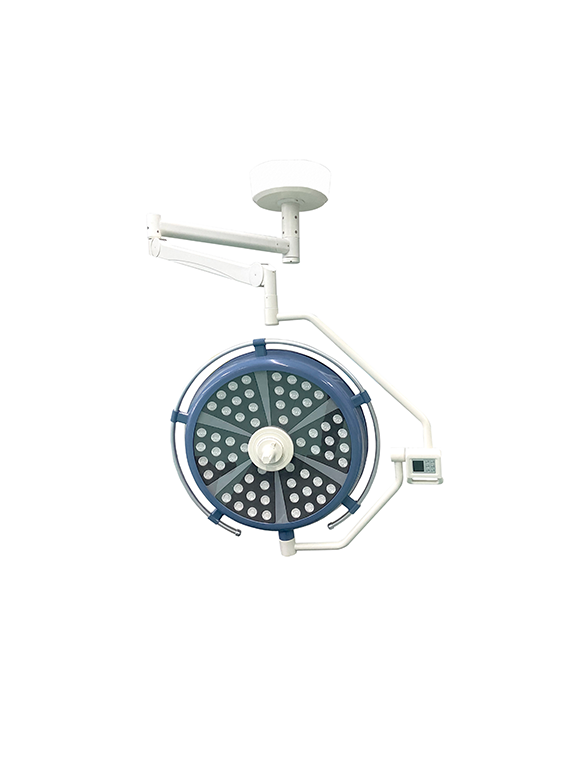

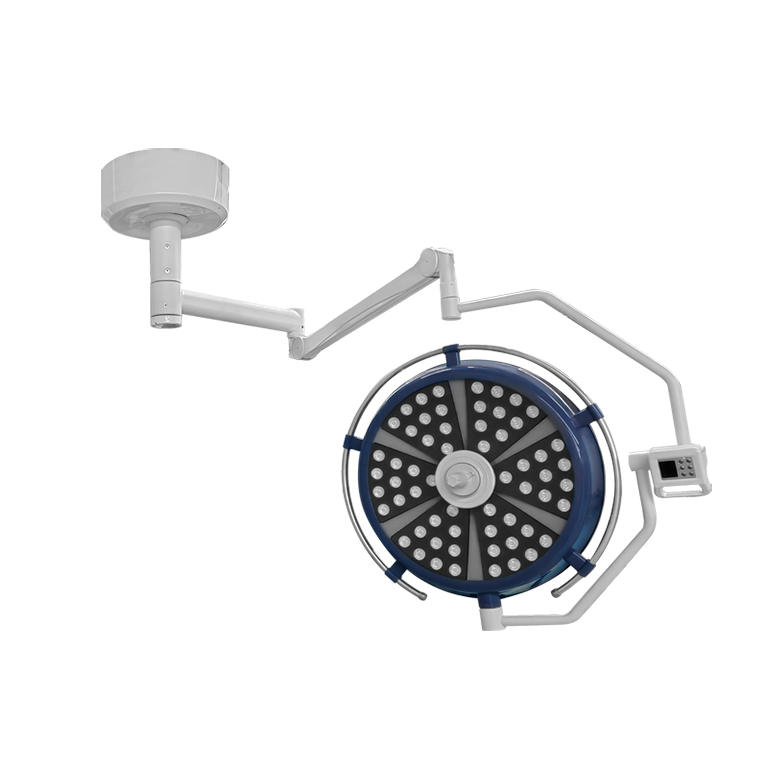

Aluminum-Type LED Surgical Operating Light YDE700

DESCRIPTION

● Equipped with premium OSRAM LED modules featuring adjustable color temperature from 3000K–6700K while maintaining CRI ≥90 for accurate tissue differentiation.
● Provides bright, uniform illumination up to 160,000 lux through high-performance optical lenses, with independent stepless digital brightness adjustment for each lamp head.
● Features a highly reliable modular LED design, where each module contains independent electronic controls to ensure continuous operation even if a single LED fails.
● The electric focusing system enables smooth spot size adjustment while maintaining excellent shadow-free illumination for both open and minimally invasive procedures.
● LED cold light technology generates minimal heat with virtually no infrared or ultraviolet radiation, improving surgical comfort and tissue safety.
● Offers an ultra-long service life of up to 100,000 hours, significantly reducing maintenance and replacement frequency.
● Energy-efficient optical layout optimized through 3D simulation achieves high lighting performance with lower power consumption.
● The laminar airflow compatible design minimizes airflow disturbance while maintaining optimal operating temperature for extended LED lifespan.
● Equipped with a premium spring arm suspension system for smooth 360° rotation, flexible movement and precise positioning.
● The removable handle cover supports 135°C steam sterilization and allows convenient adjustment of lamp position and angle.

PARAMETER

Parameter Unit 700 Lamp Head
Central Illuminance Lux ≤160,000
Color Temperature K 3000–6700
Color Rendering Index (CRI, Ra) ≥90
Light Field Depth mm 1100
Irradiance at Wavelength <400 nm W/m² ≤0.006
Focus Adjustment Motorized Focusing
LED Configuration W / pcs 1 W × 60 LEDs
Power Supply AC 220 V, 50 Hz
Input Power W 100
Average LED Service Life h 100,000
Minimum Installation Height m 2.8

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
