DESCRIPTION
Product Advantages & Features
● Adjustable color temperature using premium OSRAM LED modules, with a range of 3000K–6700K while maintaining CRI ≥90 for optimal tissue differentiation.
● Bright and uniform illumination with specially designed high-performance optical lenses, delivering up to 160,000 lux with stepless digital brightness adjustment for each lamp head.
● Highly reliable LED modular design, where each module has an independent electronic control system, ensuring single LED failure does not affect overall lamp performance.
● Electric focusing system provides flexible spot size adjustment while maintaining high illuminance for both major open surgeries and minimally invasive procedures.
● Low heat generation with virtually no infrared or ultraviolet radiation, reducing thermal impact on the surgical field.
● Ultra-long service life of up to 100,000 hours, significantly exceeding conventional halogen or gas-discharge surgical lights.
● Energy-efficient LED arrangement optimized through 3D optical simulation to achieve high performance with lower power consumption.
● Laminar airflow compatible design minimizes airflow disturbance while maintaining optimal operating temperature for extended LED lifespan.
● Premium spring arm suspension system enables smooth 360° rotation, precise positioning, and wide adjustment range for different operating room layouts.
● Removable sterilizable handle cover supports high-temperature sterilization up to 135°C for enhanced infection control.

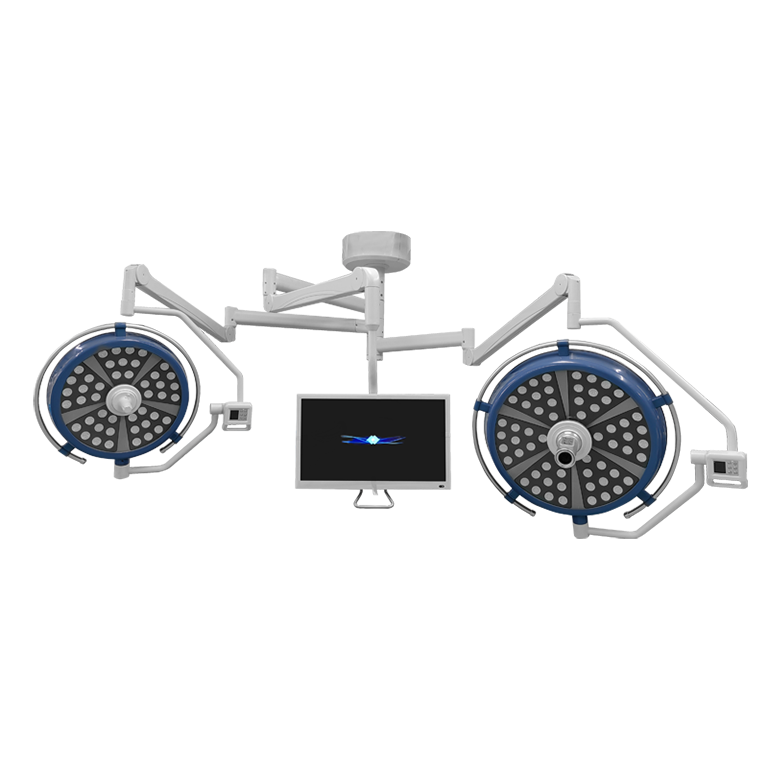

Integrated Camera System
● Built-in high-definition imaging system with fast autofocus, highlight suppression, anti-flicker technology, and integrated ND filter for clear, true-color surgical imaging under intense operating light conditions.
● Fast startup (<10s) and low video latency (<100ms) ensure stable real-time surgical video capture and transmission.
● Supports SDI, UART, RS485, VISCA, and Pelco P/D protocols for flexible integration with operating room control systems.
● Compact camera module design (60 mm diameter / 190 g) allows easy integration inside the surgical light housing.
● Equipped with 22-inch Full HD display, 3G-SDI input, 4-channel 1080P network video access, 1TB local storage, USB 3.0 recording, H.265 compression, and HDMI/VGA output for advanced recording and display management.
