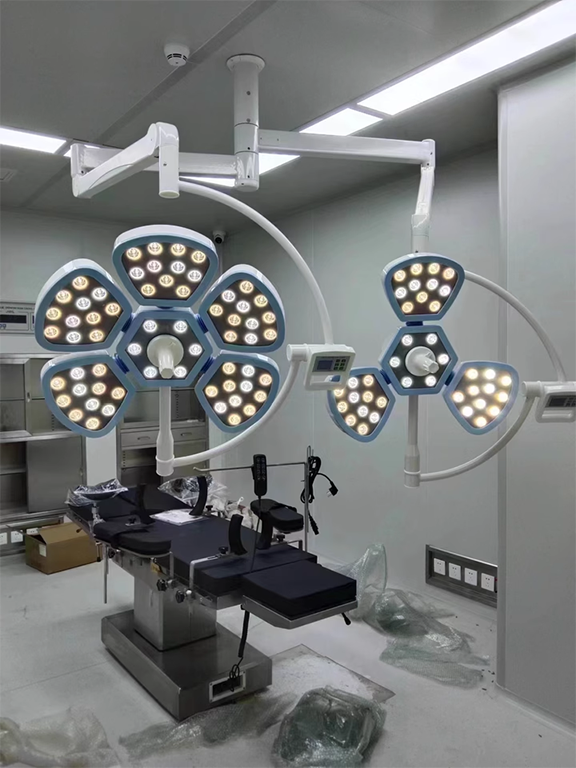

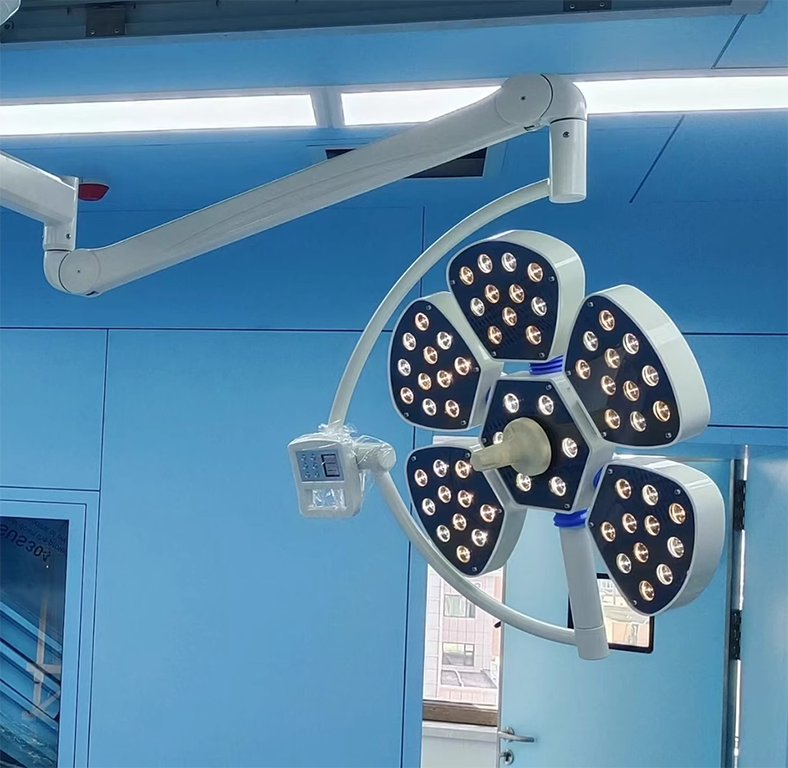

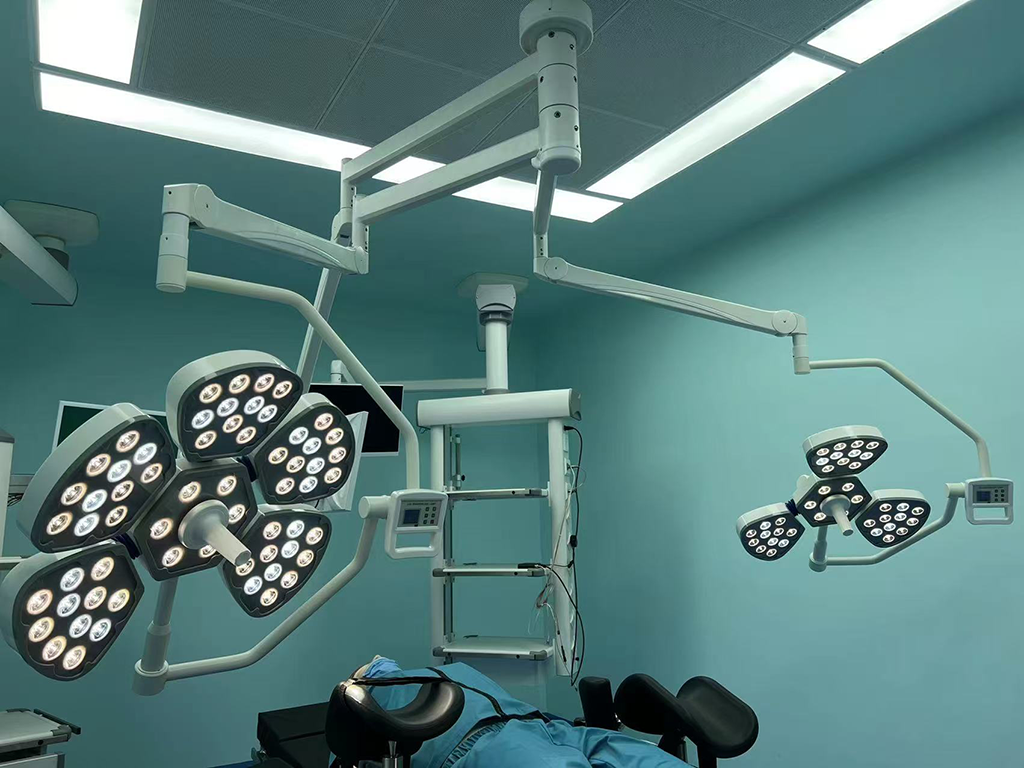

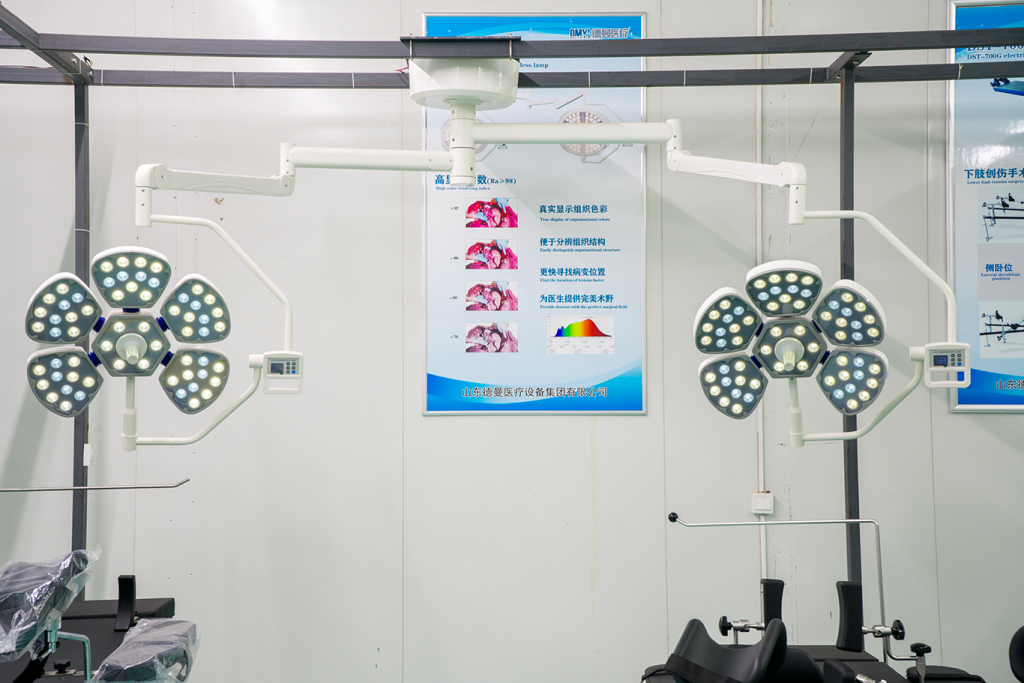

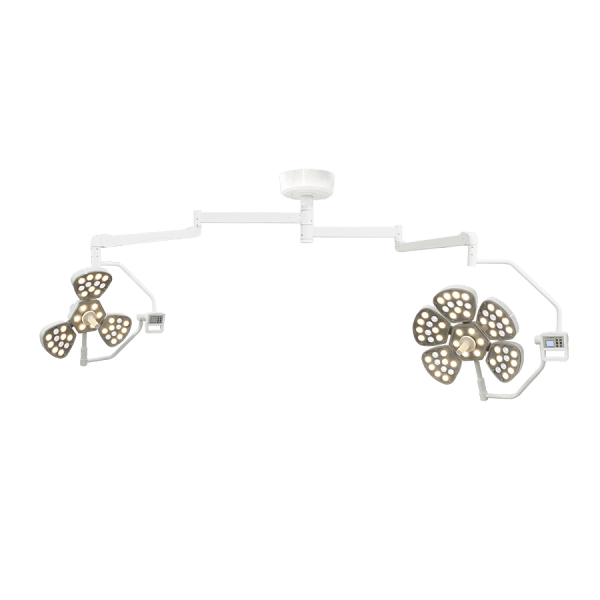

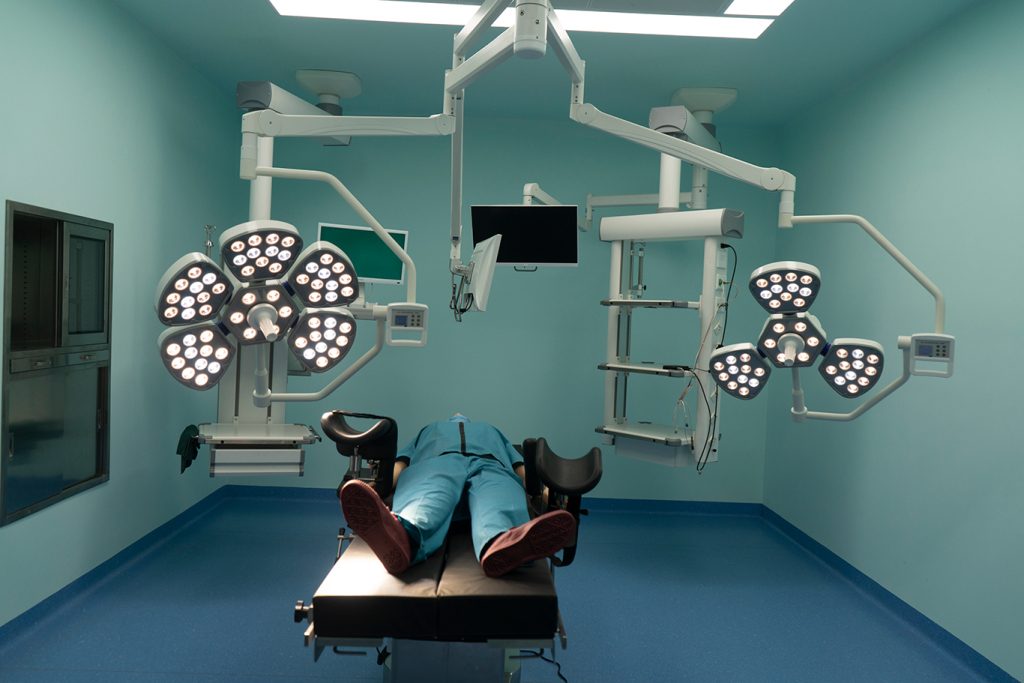

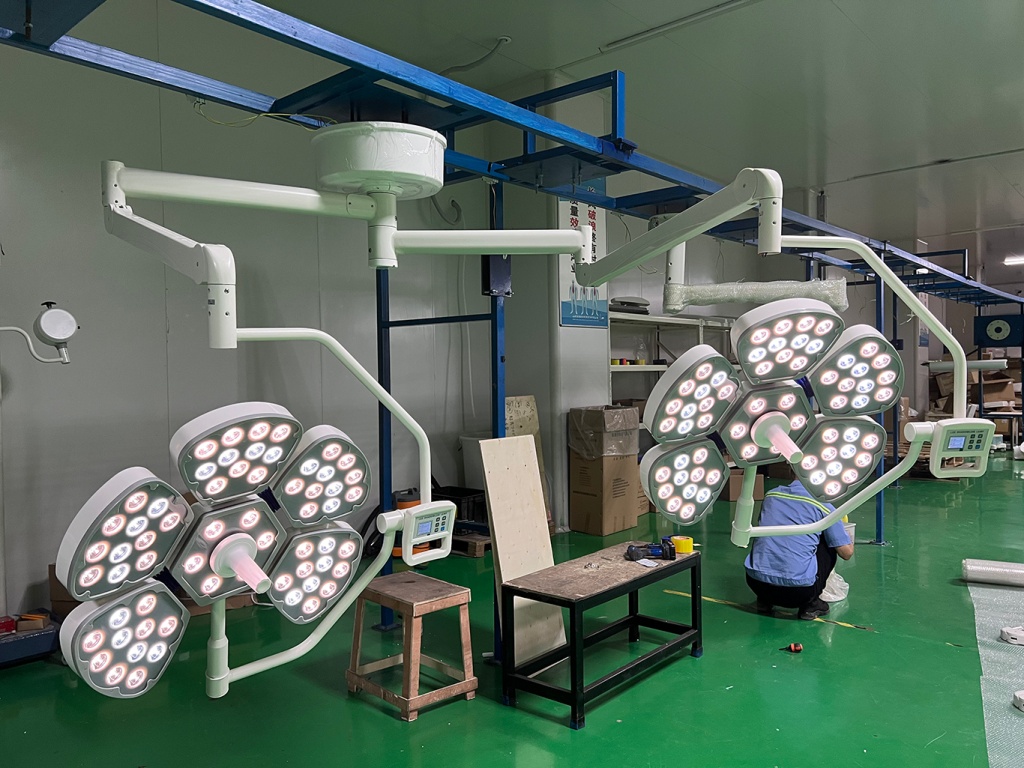

3+5 Petal-Type Dual Head LED Surgical Operating Light YDE700/500

● Stable positioning system with flicker-free, reliable performance.

● Streamlined low-heat design with excellent laminar airflow compatibility.

● Advanced OSRAM LED system for bright, uniform and shadow-free illumination.

DESCRIPTION

● The petal-series surgical light supports vertical circulation movement, allowing flexible height and angle adjustment to meet various surgical positioning requirements.
● Composed of multiple high-brightness white LED modules connected in independent parallel groups, ensuring continuous illumination even if a single LED or module fails, greatly improving operational reliability.
● The flat streamlined lamp head design with low heat generation minimizes disruption to laminar airflow, fully complying with modern laminar flow operating room standards.
● Equipped with premium OSRAM LED chips, featuring a specialized optical system that delivers 360° uniform shadow-free illumination, high clarity, excellent color rendering, and consistent color temperature under all brightness levels.
● The LED system is mercury-free, impact-resistant, and emits no infrared or ultraviolet radiation, ensuring safe, environmentally friendly cold light illumination.
● The high-quality balancing system provides precise control, preventing arm drift or instability for improved positioning accuracy and operational safety.
● Surface coating uses advanced AkzoNobel powder coating with anti-glare treatment, offering excellent durability and visual comfort under surgical lighting conditions.
● Pure DC power supply eliminates flicker, reduces eye fatigue, minimizes harmonic interference with surrounding medical equipment, and improves overall operating efficiency.

PARAMETER

Parameter Unit 700 Lamp Head (5-Petal Design) 500 Lamp Head (3-Petal Design)
Central Illuminance Lux 40,000–160,000 40,000–120,000
Color Temperature K 4300 ±500 4300 ±500
Light Spot Diameter mm 120–300 120–300
Color Rendering Index (CRI, Ra) ≥90 ≥90
Light Field Depth mm ≥1100 ≥1100
Operating Voltage / Rated Power V / W 220 / 100 220 / 80
Endoscopy Mode Standard Standard
Average LED Service Life h 100,000 100,000
Minimum Installation Height m 2.8 2.8

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
