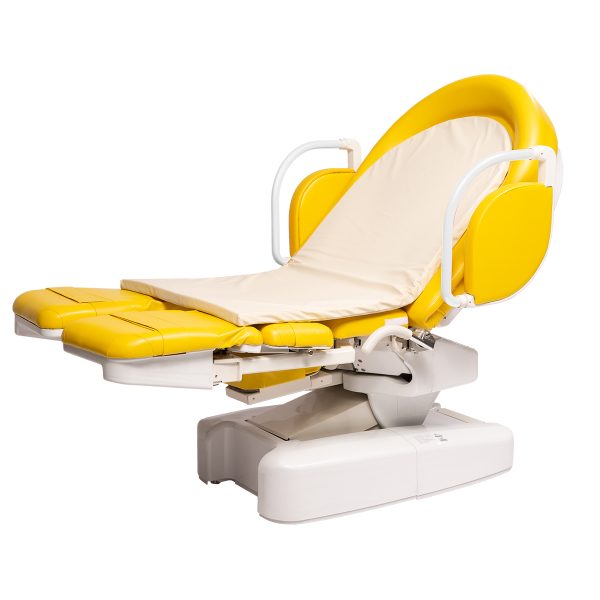

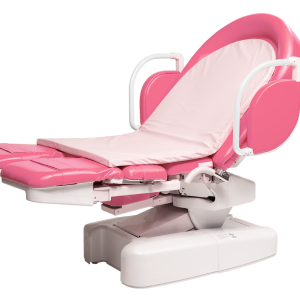

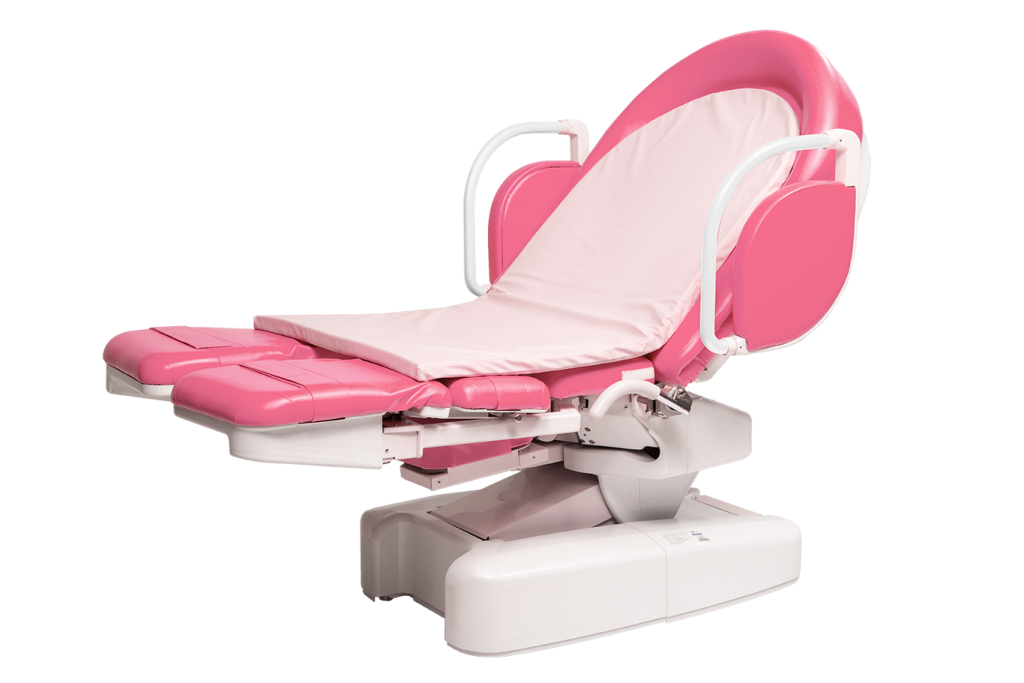

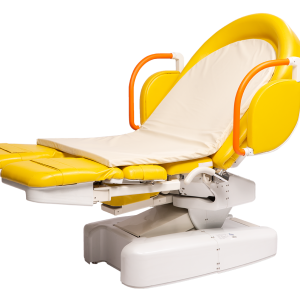

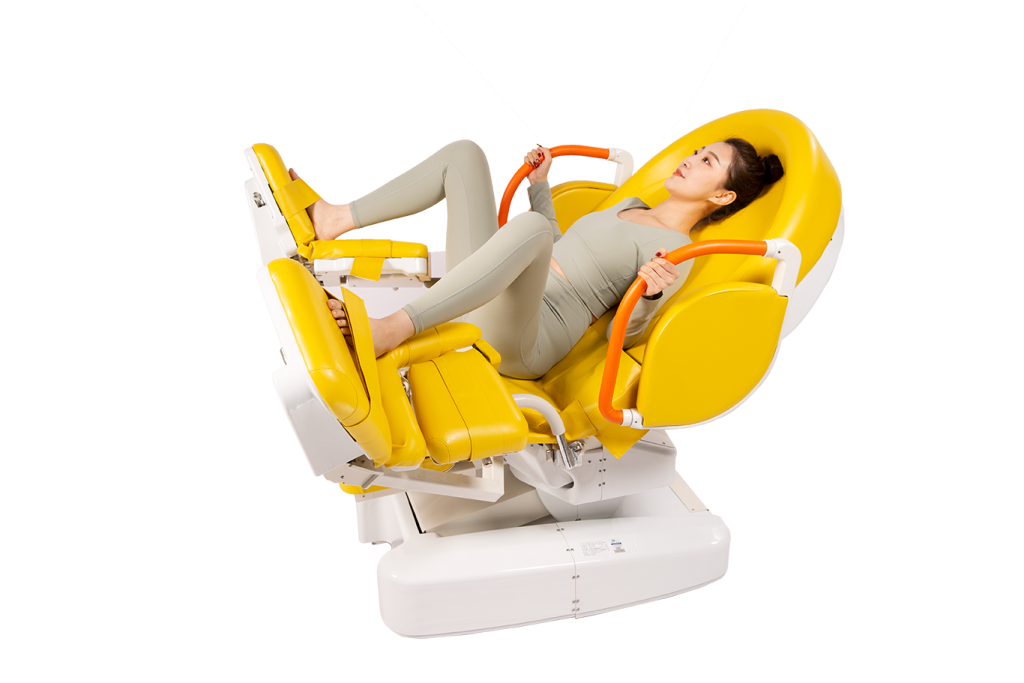

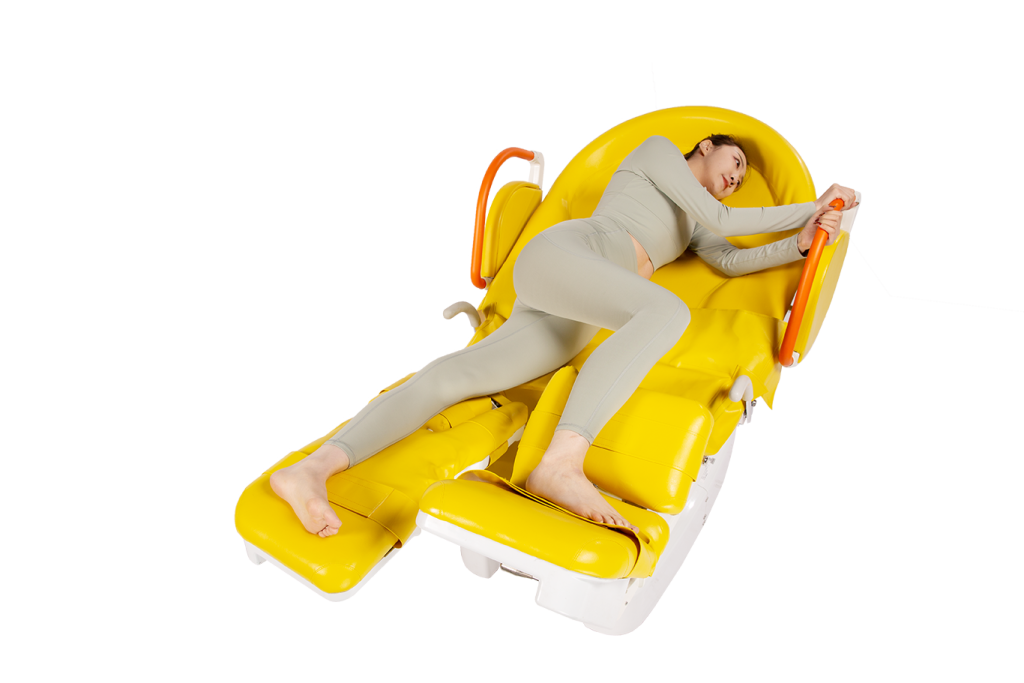

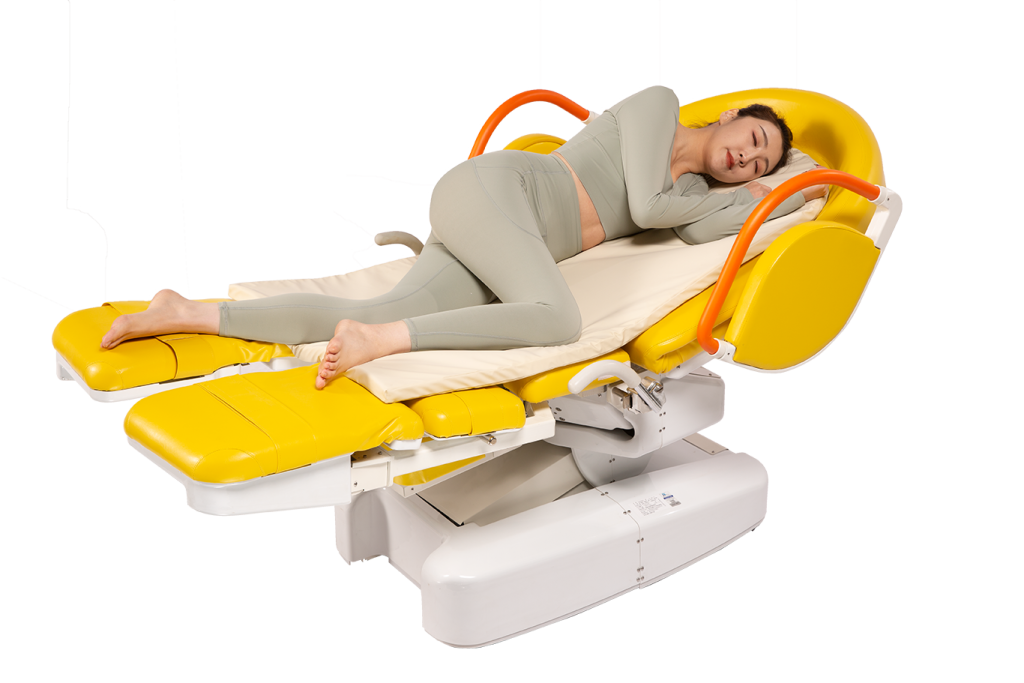

Luxury Electric Gynecological Operating Table DST-3003

● Stable structure with 550 mm low height.

● For delivery, gynecological surgery and examinations.

● Flexible adjustment with smooth, low-noise operation.

DESCRIPTION

● Designed for obstetrics and gynecology procedures including delivery and C-section.

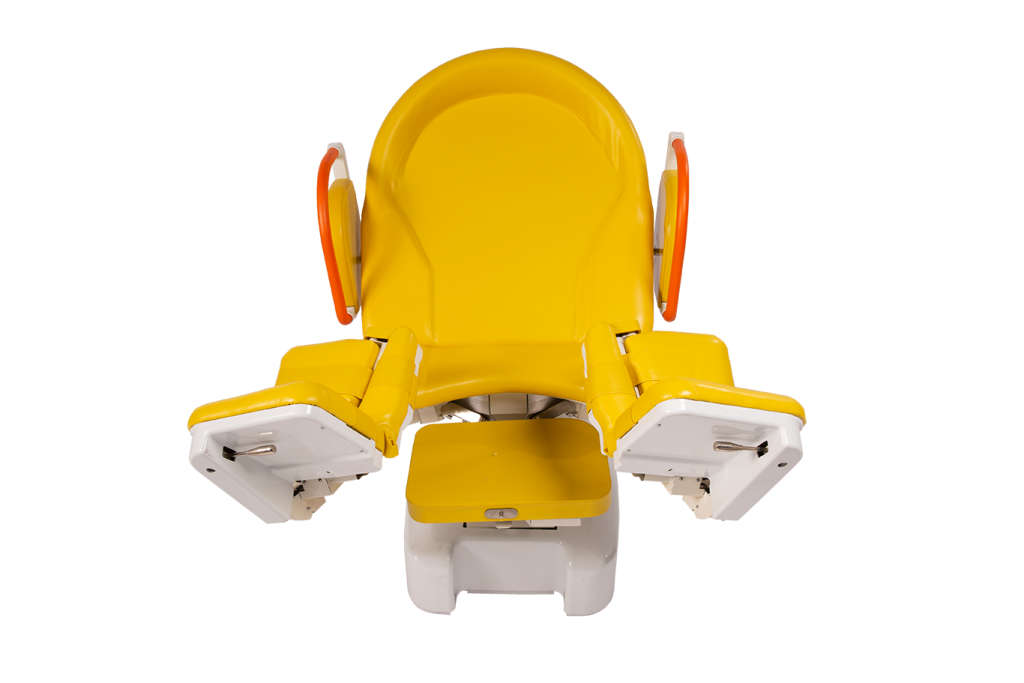

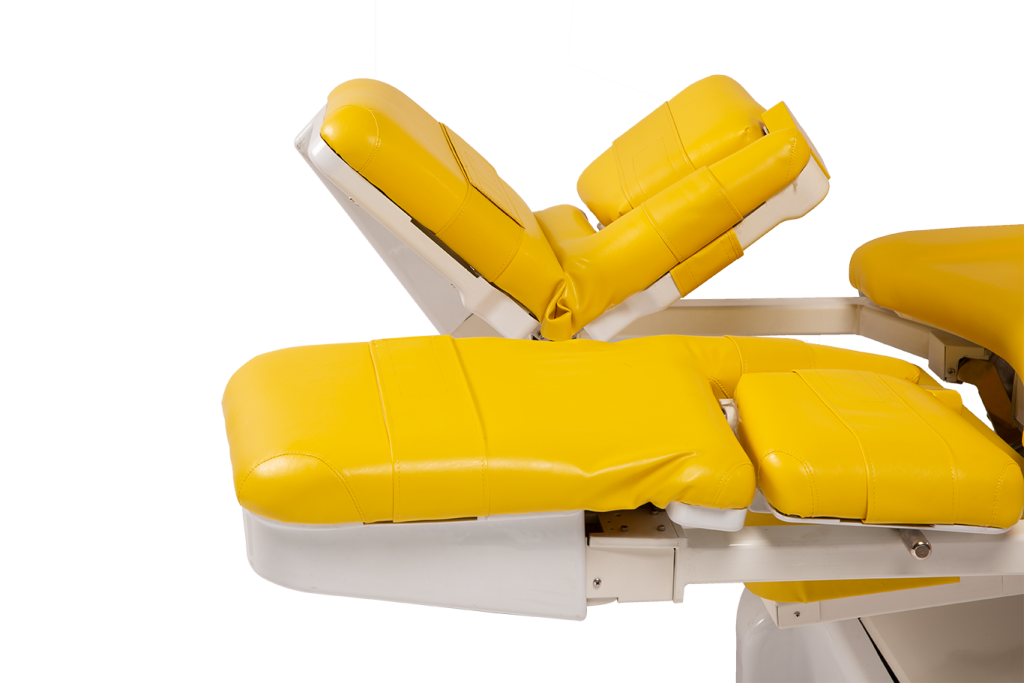

● Multi-section tabletop with flexible positioning for optimal surgeon access and patient comfort.
● Low minimum height of 550 mm for convenient clinical operation.
● Linear actuator system with low noise, stable performance and precise positioning.
● Strong steel structure with ABS base cover and anti-glare finish.

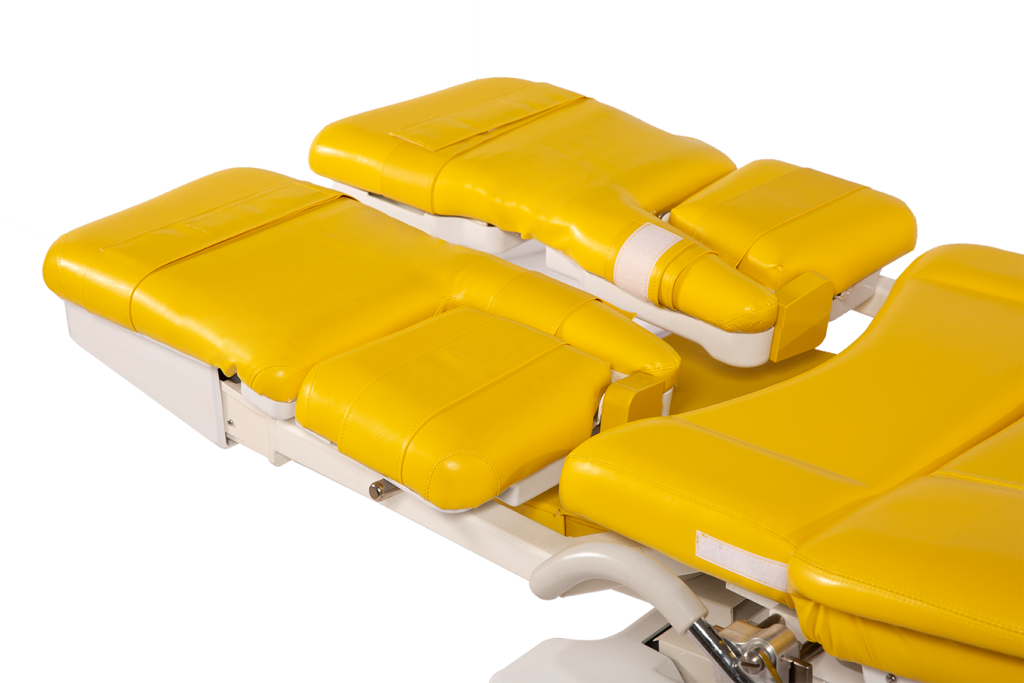

● Three-layer tabletop design for enhanced comfort, cushioning and thermal insulation.
● Rotatable newborn platform and smooth, vibration-free operation.





PARAMETER

Parameter Specification
Overall Dimensions 2058 × 1080 × 550 mm
Minimum Height 550 ±10 mm
Net Weight 305 kg
Power Supply AC 230 V, 2.5 A, 50 Hz
Height Adjustment Stroke 360 ±10 mm (electric)
Back Section Adjustment Up: 60° ±2° (electric) / Down: 10° ±2° (electric)
Seat Section Adjustment Up: 25° ±2° (electric) / Down: 25° ±2° (electric)

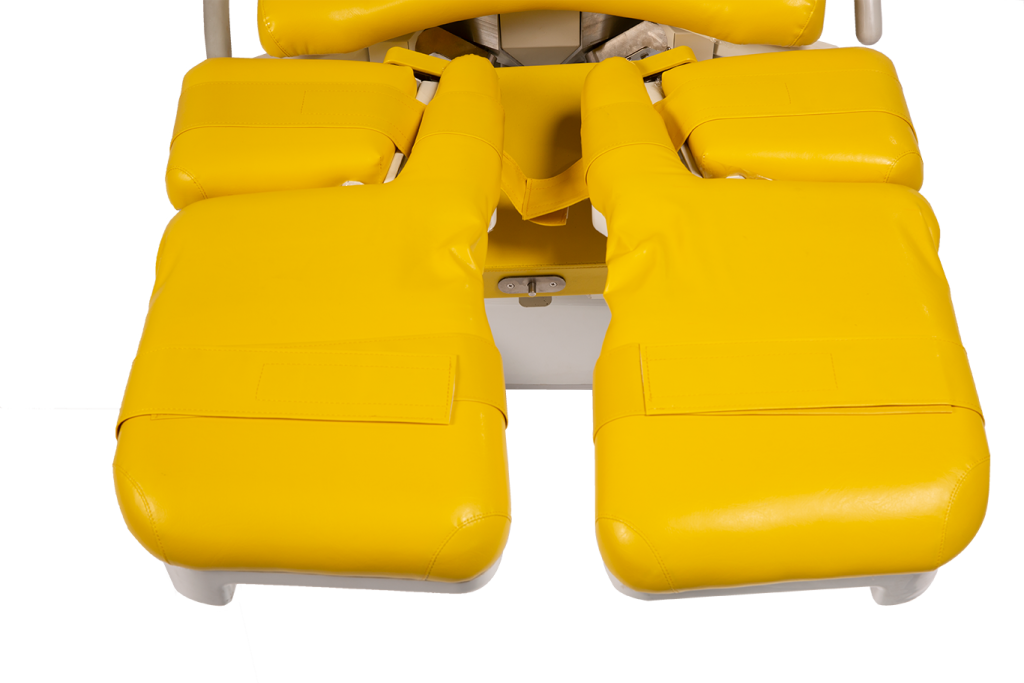

Foot Support Plate Lateral Tilt Right: 0°–33° ±3° (electric) / Left: 0°–33° ±3° (electric)

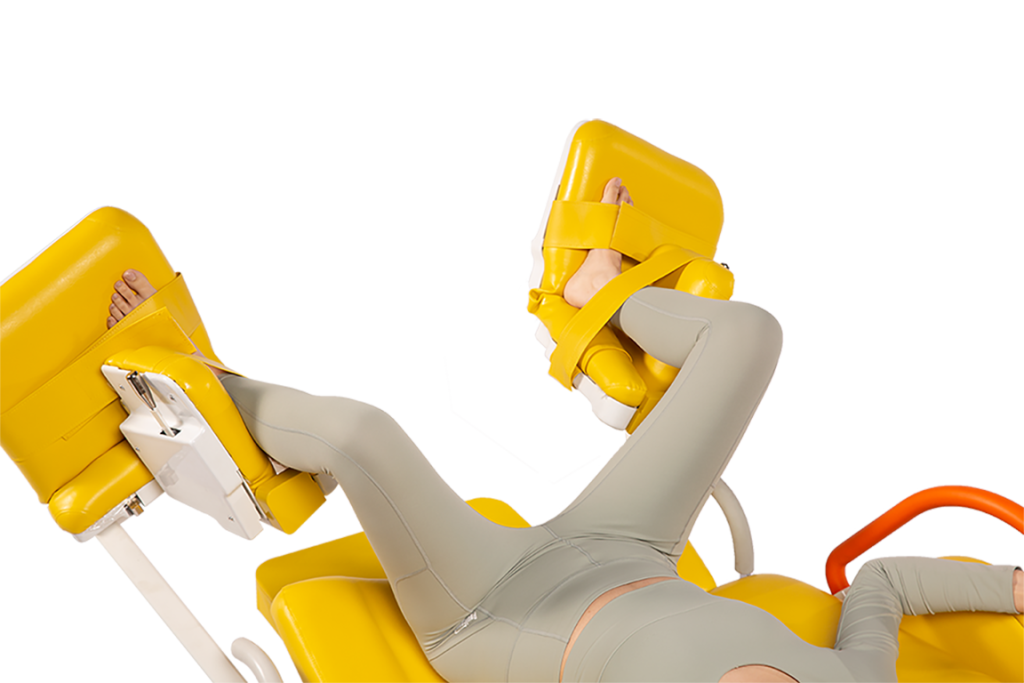

Foot Support Plate Adjustment 0°–90° ±2° (manual, gas spring assisted)

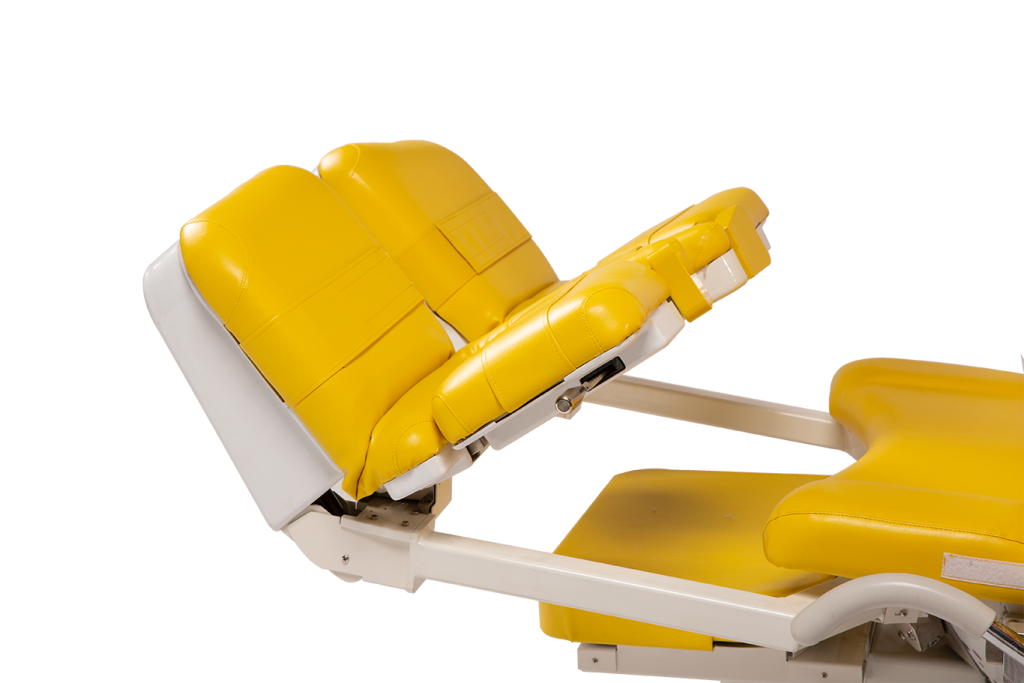

Leg Section Adjustment 75° ±2° (manual)
Side Armrest Rotation 180° (manual)
Tray Support Longitudinal Travel 150 ±3 mm (manual)
Tray Support Rotation 90° ±3° (manual)
Rotating Tray Support Longitudinal Travel 60 ±5 mm (manual)

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
