PRODUCT

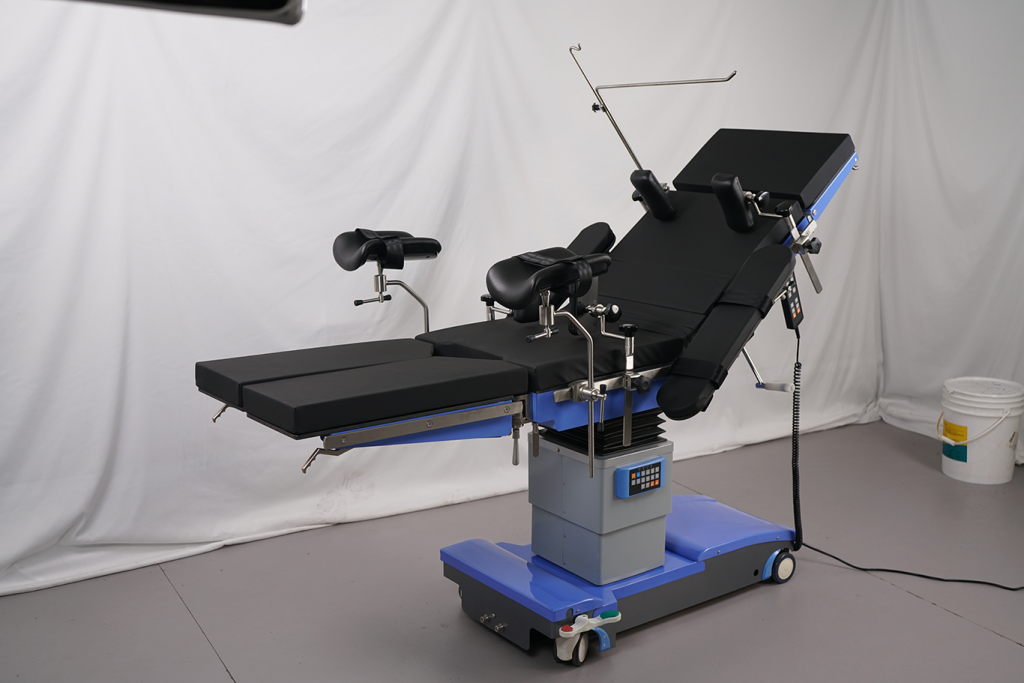

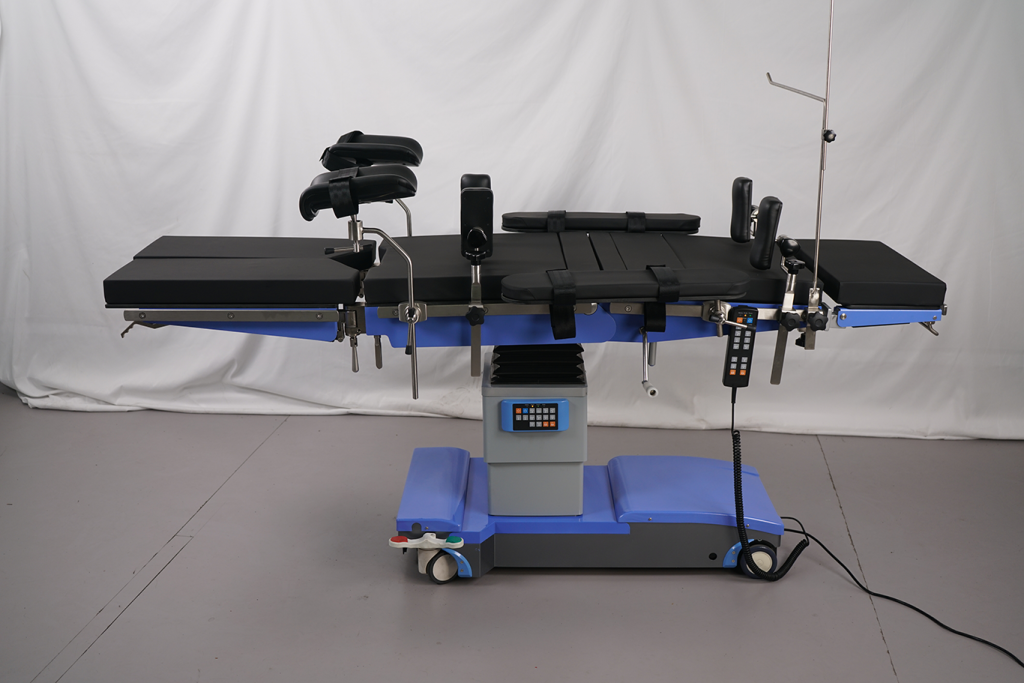

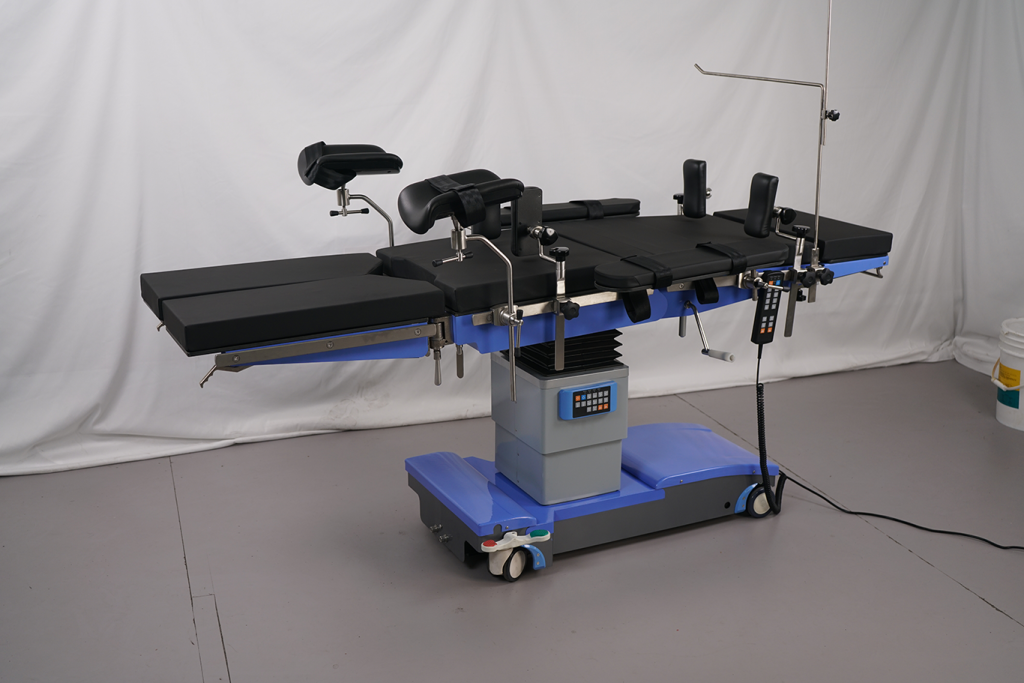

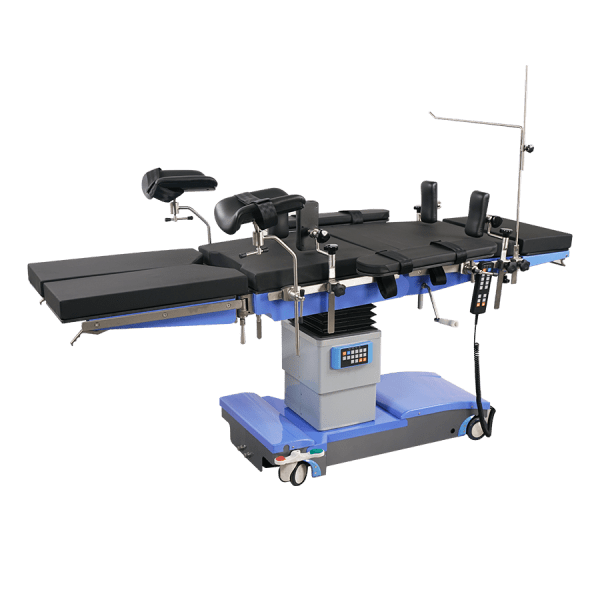

● Electric hydraulic drive system for precise, smooth, and reliable positioning.

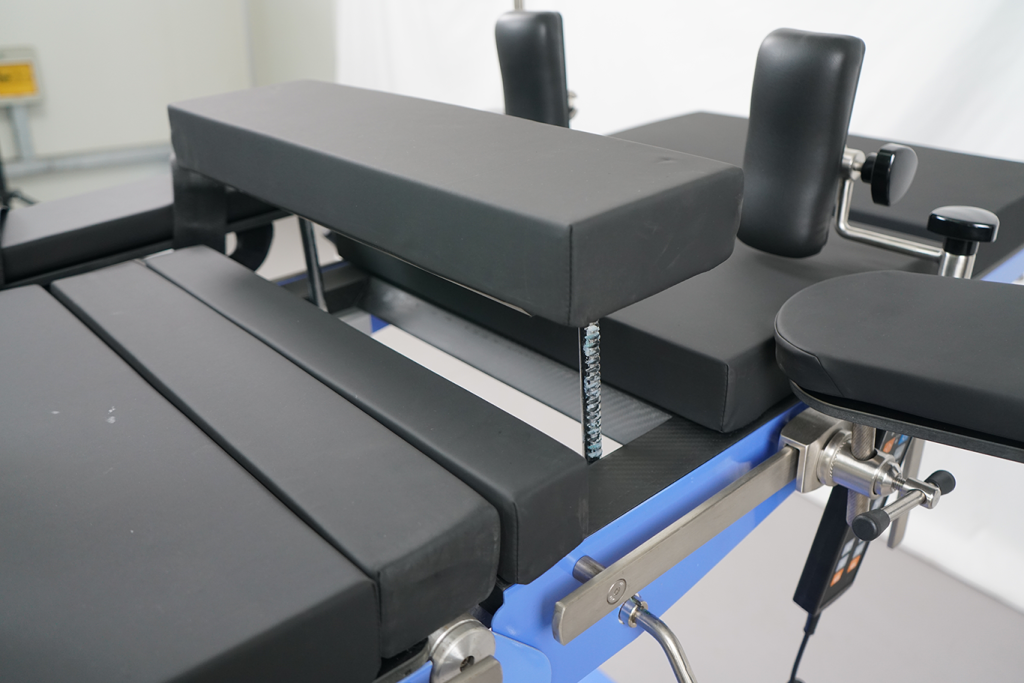

● Radiolucent tabletop with carbon fiber back plate for full-body imaging without patient repositioning.
● 330 mm longitudinal slide for accurate and convenient C-arm positioning.
● Independent power system for all movements (height, tilt, lateral tilt, longitudinal shift).
● High-precision linear guides ensuring stable and smooth operation.
● Durable structure with ABS base cover – anti-glare, easy to clean and disinfect.

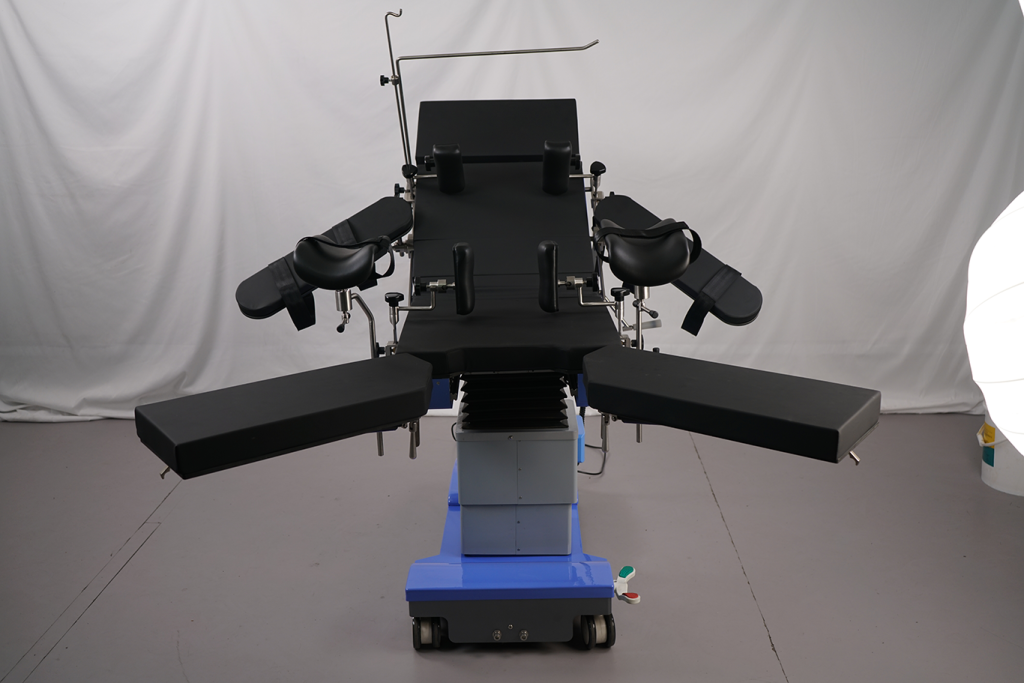

● Optimized base design providing ample space for C-arm and medical staff movement.

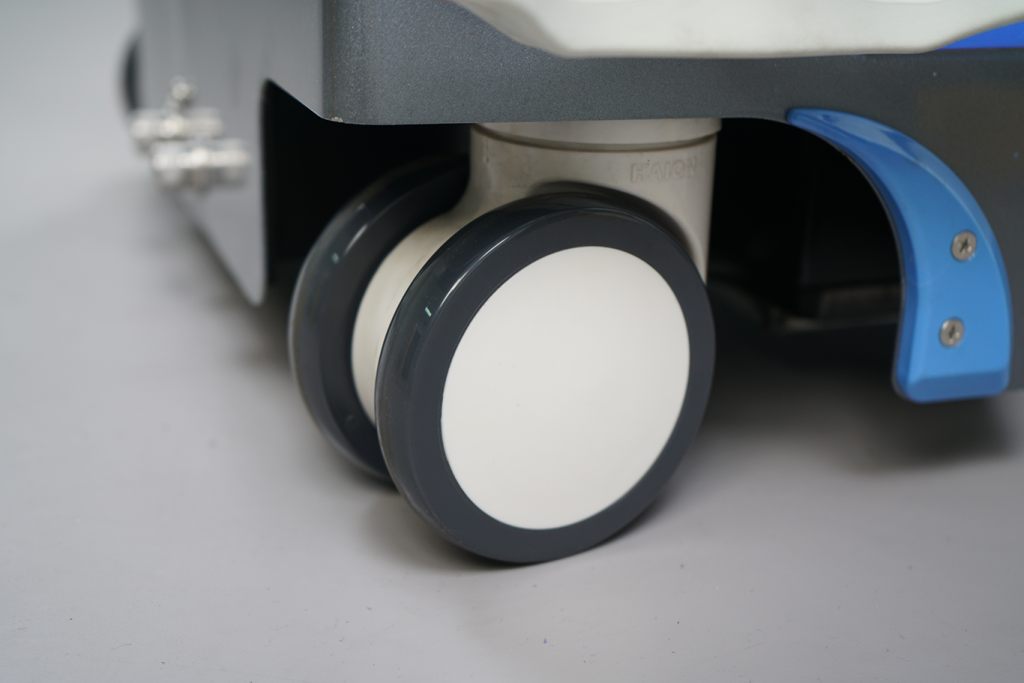

● Large casters (≥100 mm) for flexible mobility.

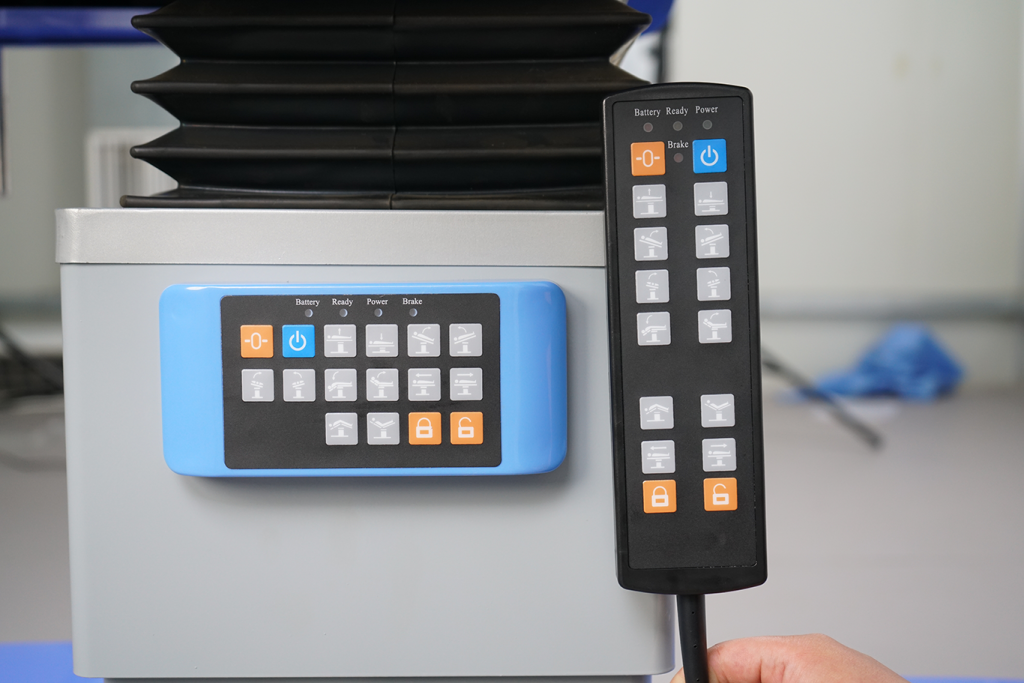

● Dual control systems (remote + backup panel) for enhanced safety and reliability.
● User-friendly features including memory foam mattress, one-key reset, and quick positioning (∧ / ∨ modes).
PARAMETER
| Project | Parameter |
| Bed panel dimensions | （2150×540）±10mm |
| Worktop height (excluding base) | Minimum height: (650±20) mm
Maximum height: (1000±20) mm |
| lift stroke | (350±20) mm (electric) |
| longitudinal travel of bed surface | (330±20) mm (electric) |

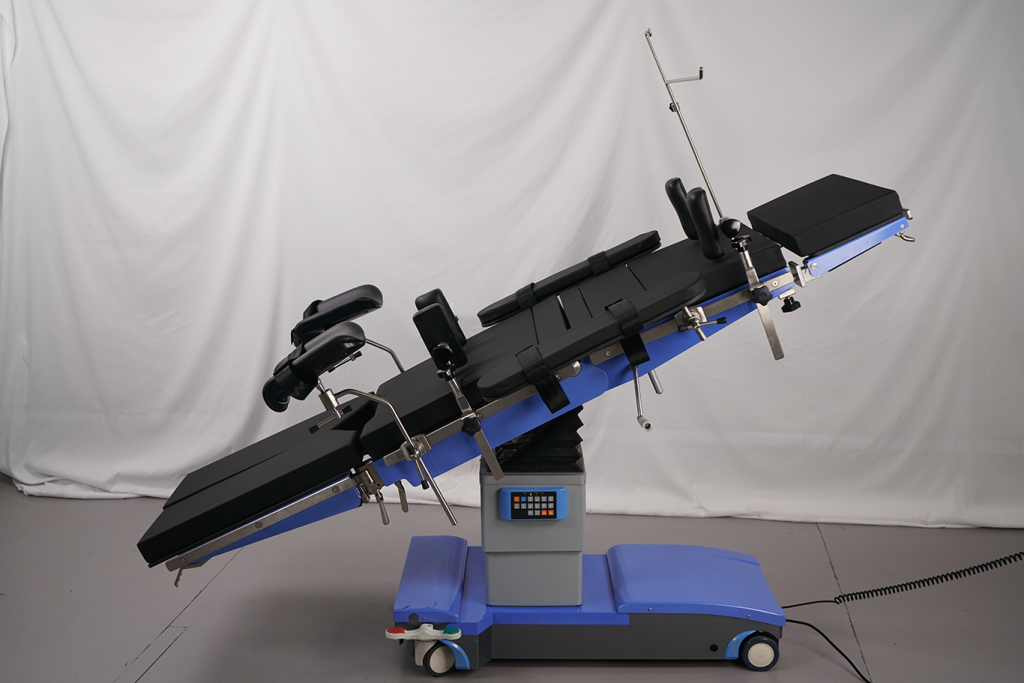

| cephalopodal tilt angle | Head tilt: 28°±2° (electrically controlled)
Foot inclination: 28°±2° (electric) |
| roll angle | Left: 23°±2° (electric)
Right: 23°±2° (electric) |

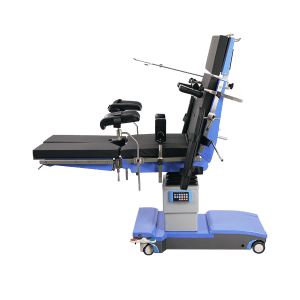

| back angle | Upper angle: 78°±2° (electric)
Lower angle: 40°±2° (electric) |

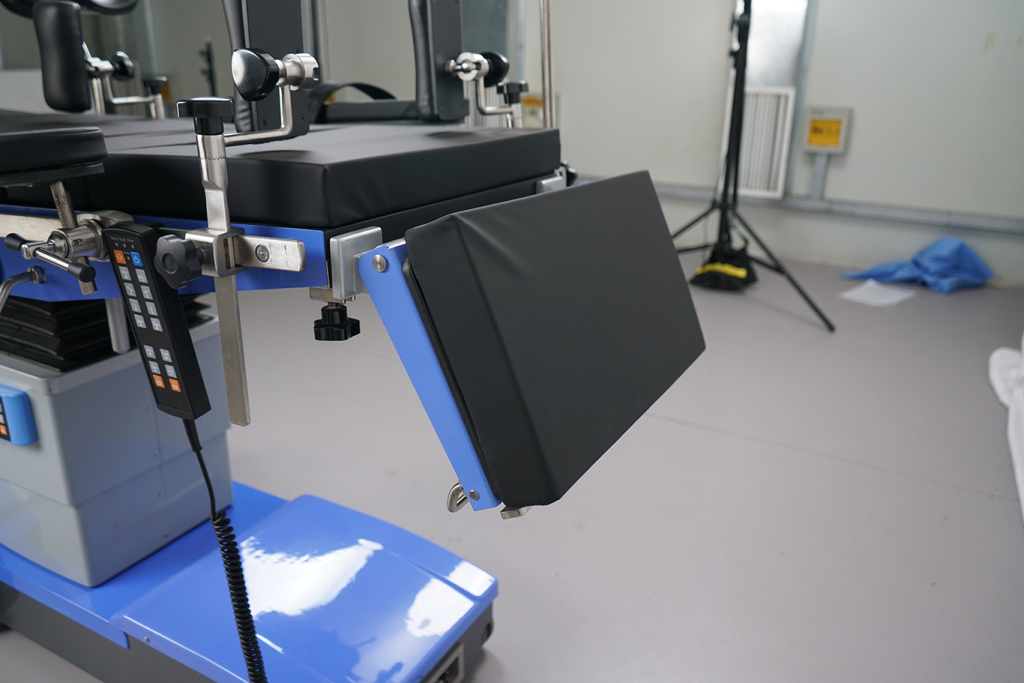

| leg fold angle | Upward tilt: 30°±2° (manual)
Lower fold: 90°±2° (manual) |
| headboard angle | Upward tilt: 50°±2° (manual)
Lower fold: 90°±2° (manual) |
| source | 220V 50Hz 300VA |
| net weight | Approximately 260kg |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
