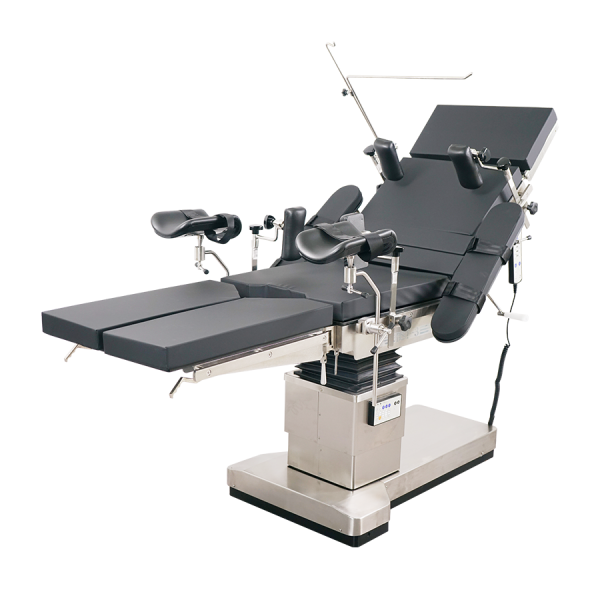

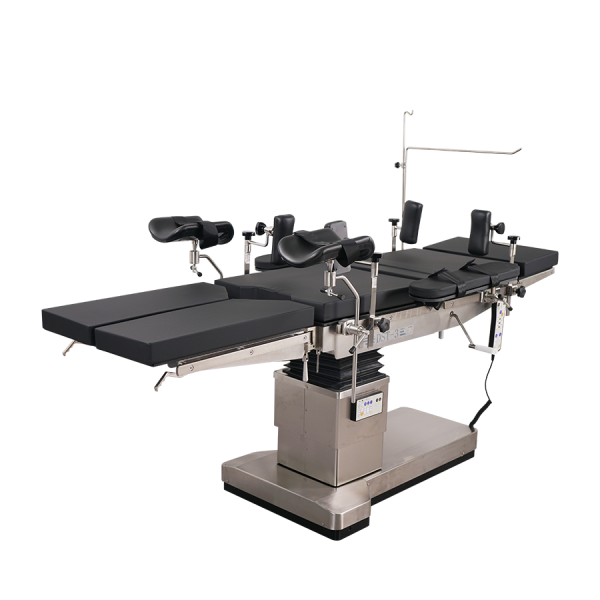

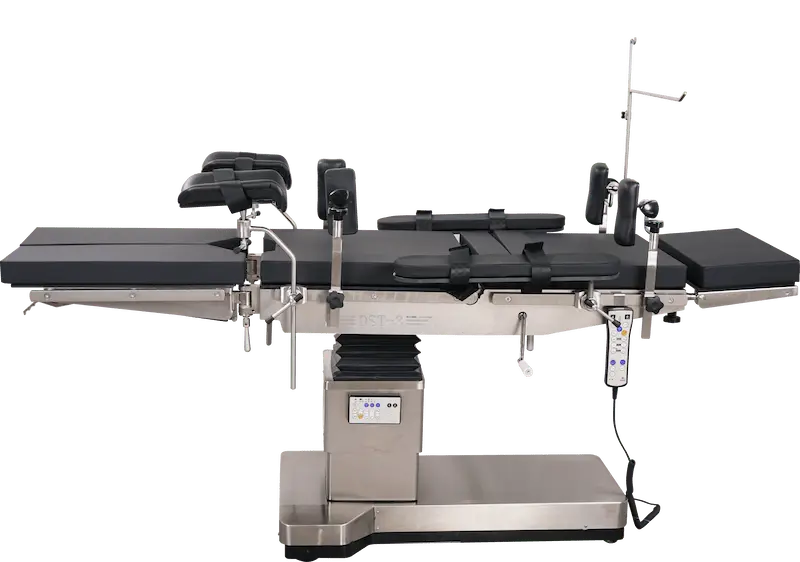

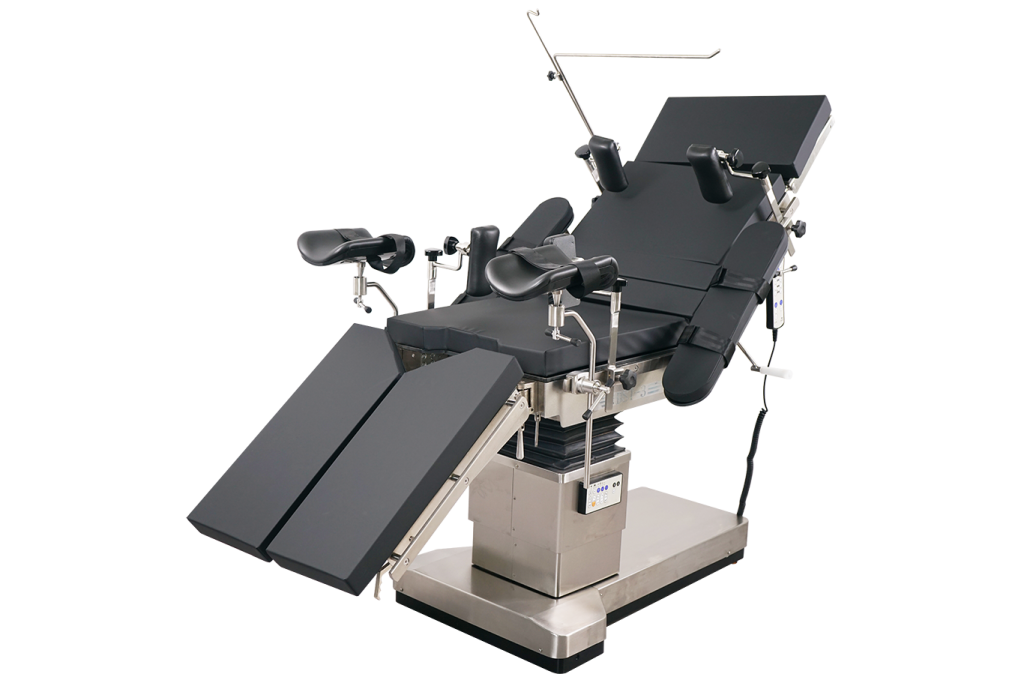

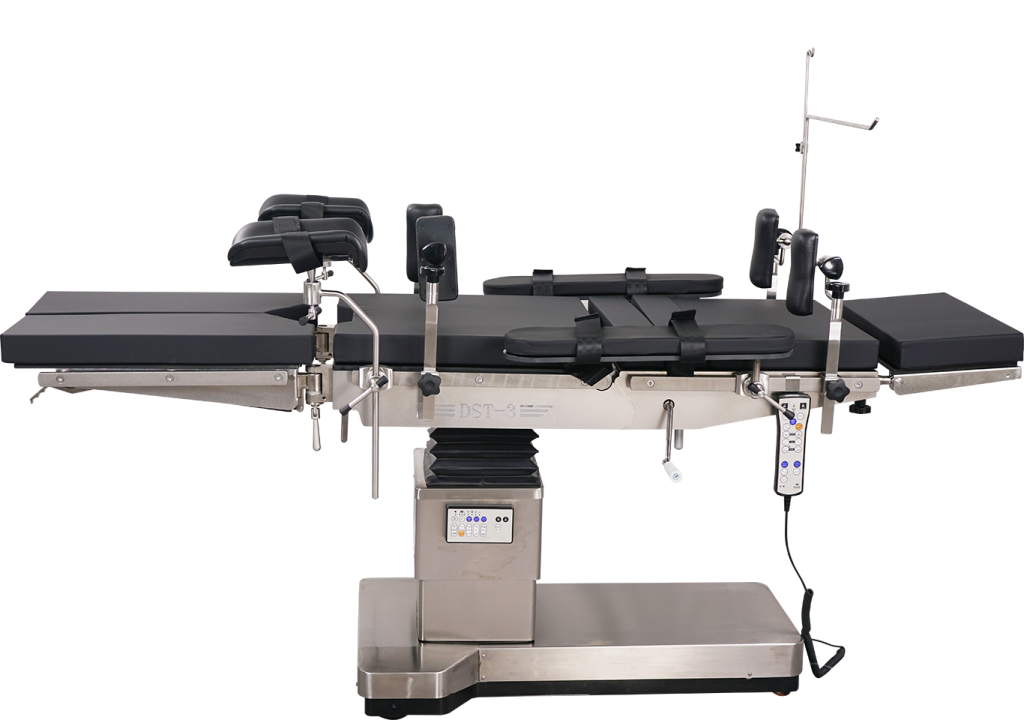

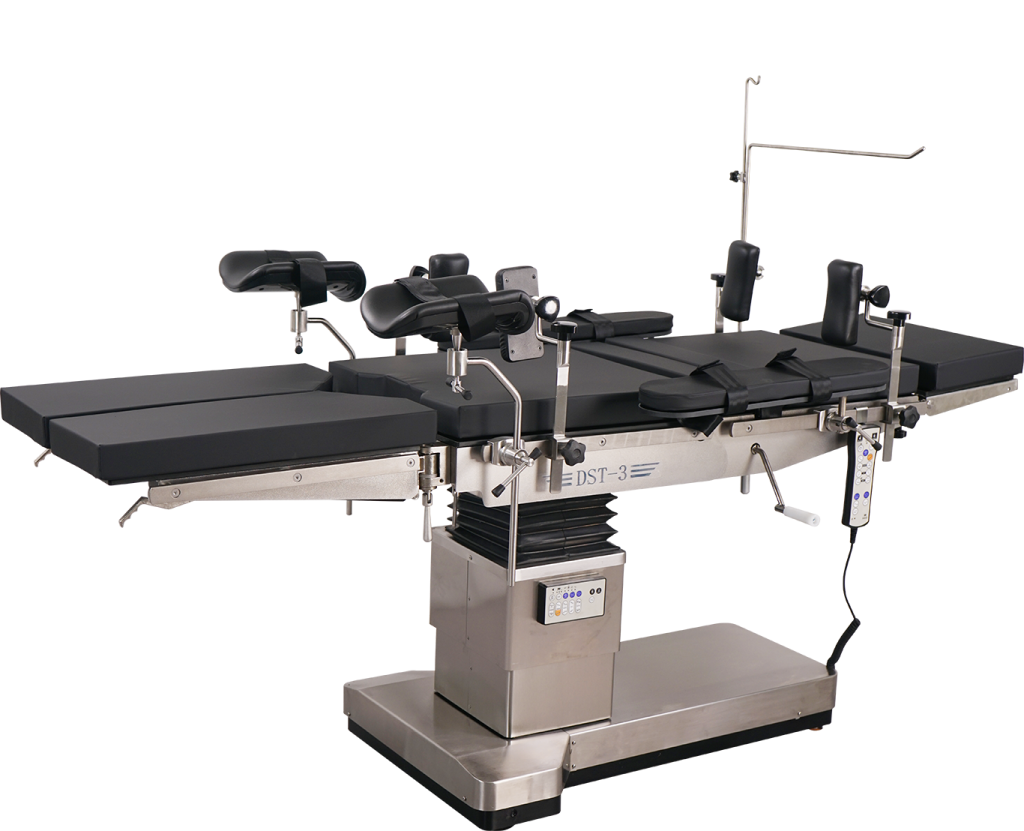

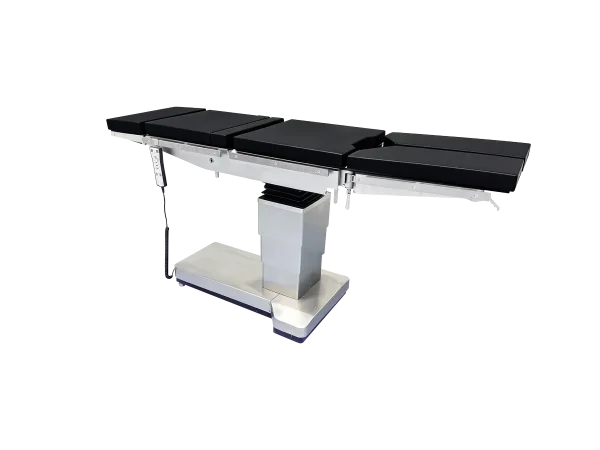

Electro-Hydraulic Operating Table DST-3 (T)

● Precise, stable hydraulic positioning.

● Comfortable memory foam mattress.

● Durable stainless steel with radiolucent top.

DESCRIPTION

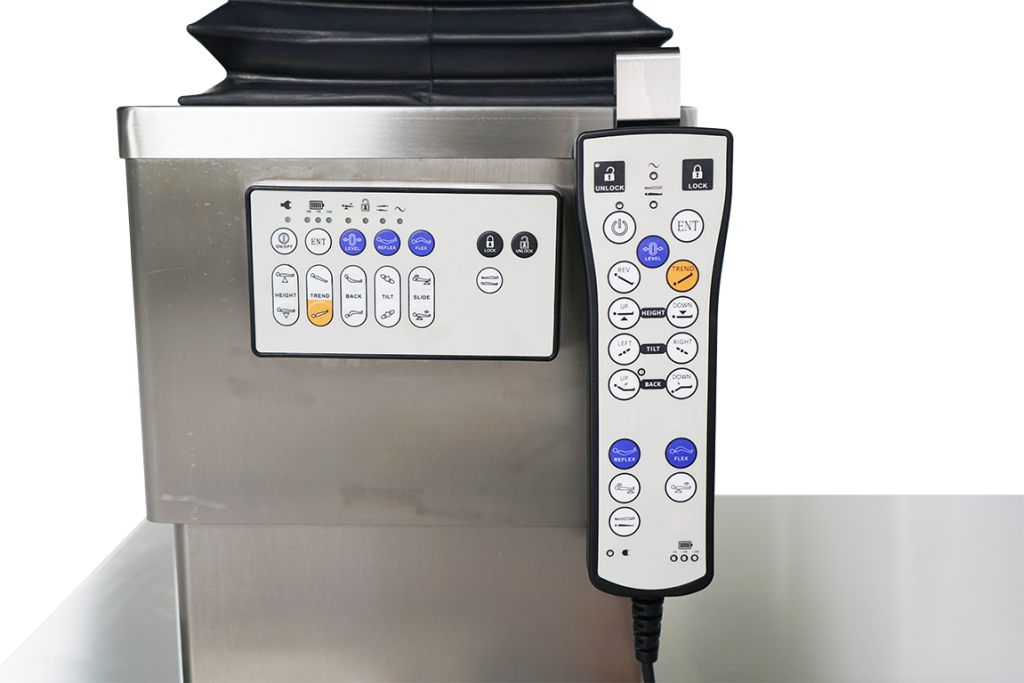

● Precise bed positioning with electric hydraulic drive for smooth, uniform movement.
● High-density, soft integral foam mattress with memory recovery function to reduce localized pressure.
● Durable nickel-chromium stainless steel construction and accessories, resistant to rust and damage.
● Radiolucent, horizontally adjustable tabletop for accurate C-arm X-ray imaging.

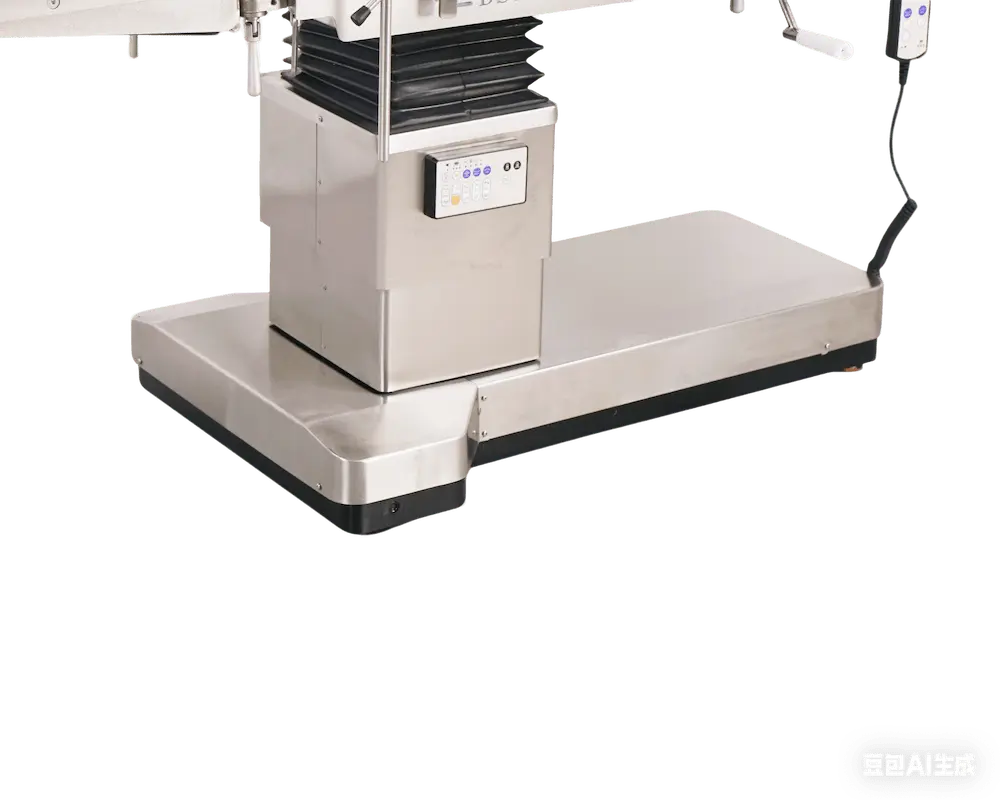

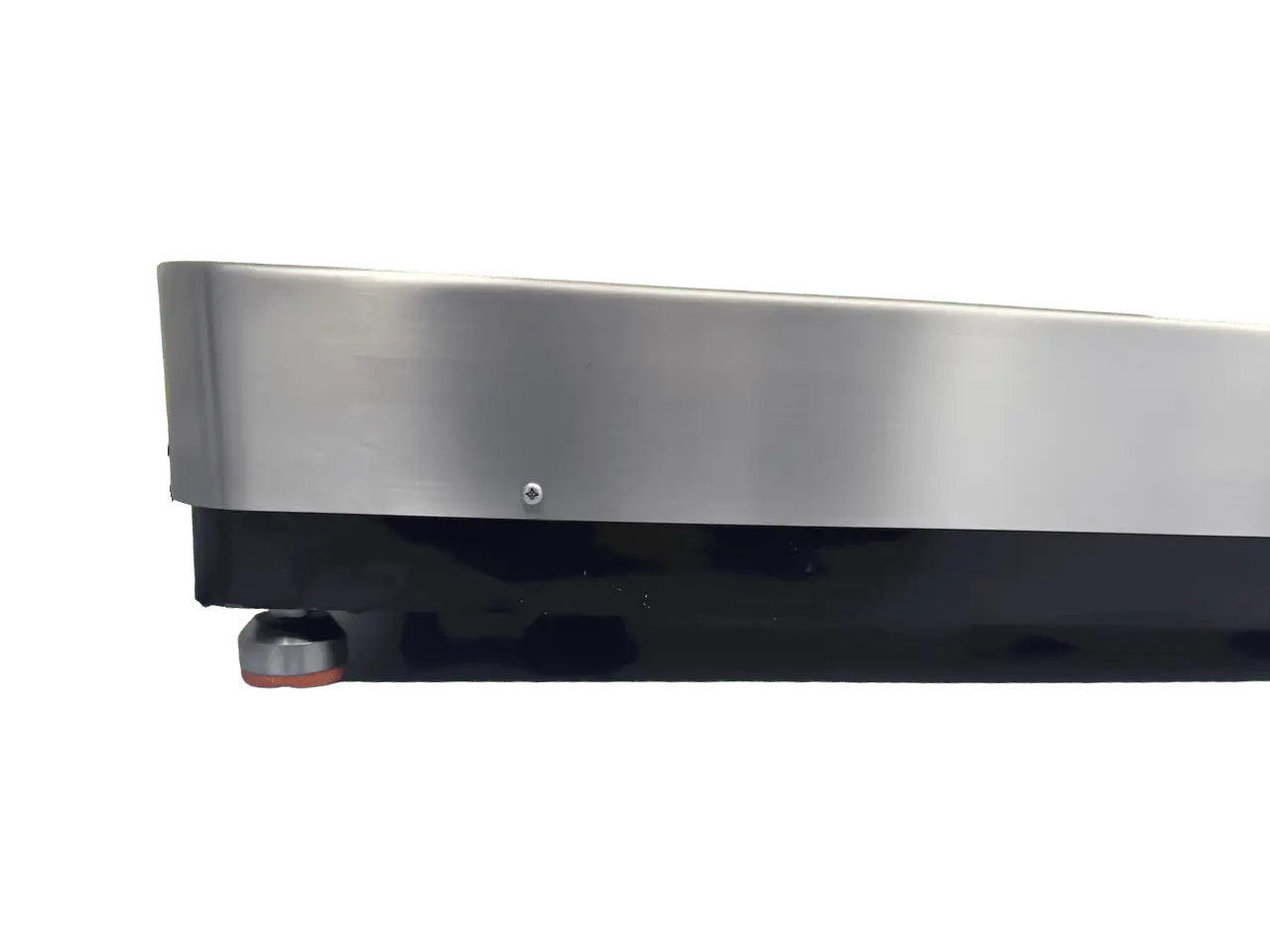

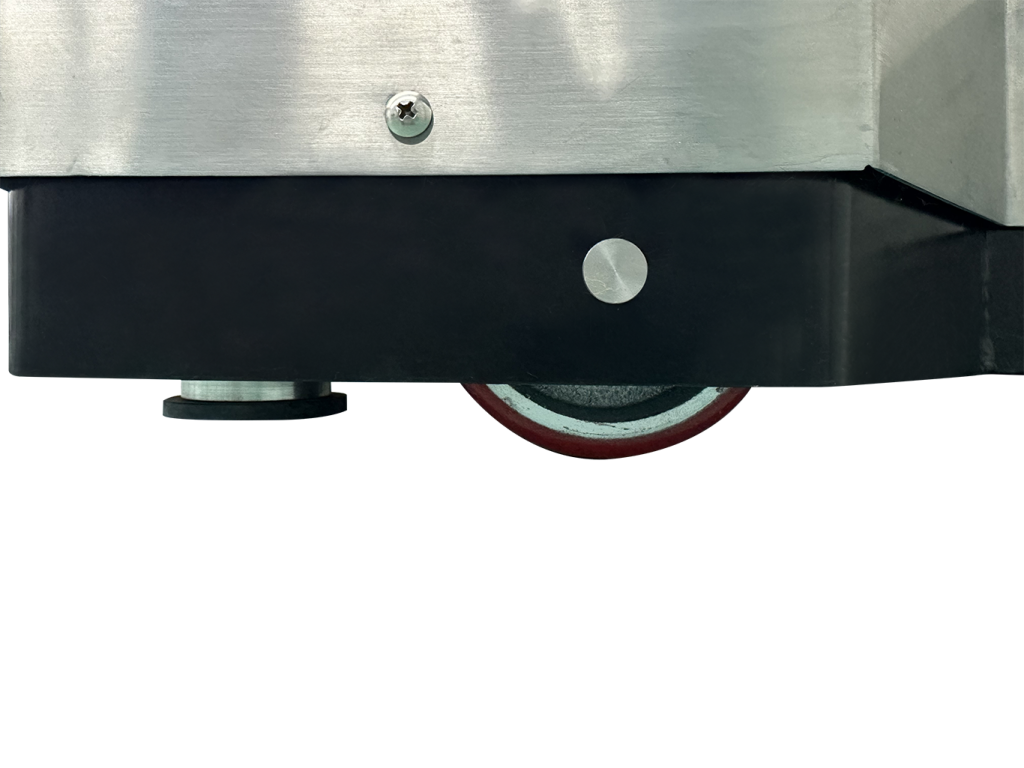

● Scientifically designed base providing ample C-arm clearance while ensuring table stability and balance.
● High-precision linear guide rails for stable and smooth operation.





PARAMETER

Table size(Length/Width) 2150×540mm±10mm
Height(min/max) 660-1000mm±10mm
Elevation range 340mm±10mm

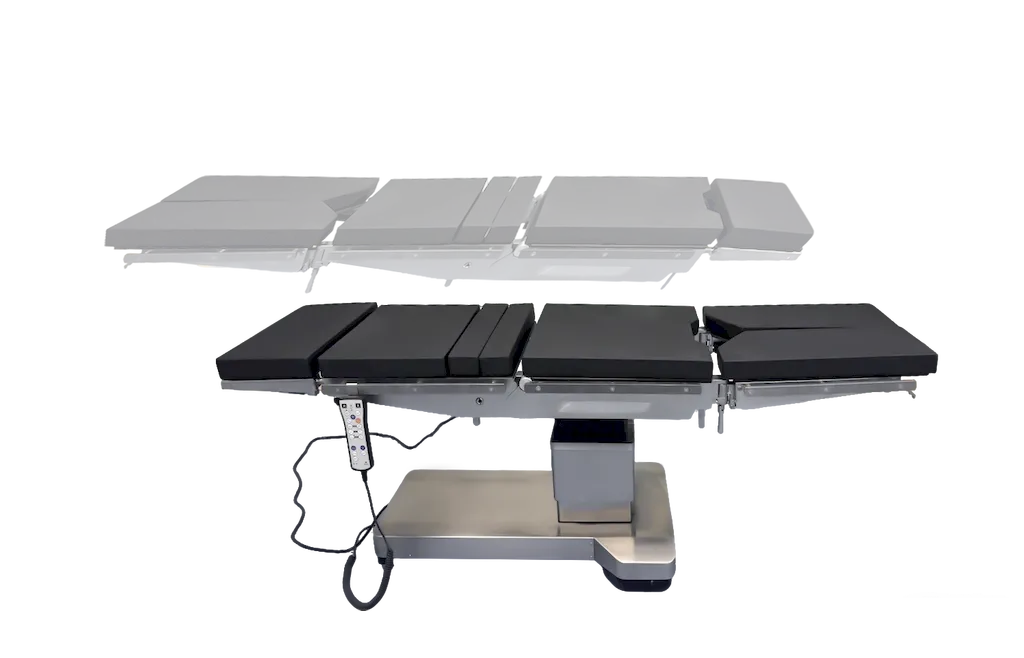

Horizontial slide 330mm±10mm
Trendelenburg 25°±2°
Reverse Trendelenburg -25°±2°
Lateral tilt movement +22°/ -22°±2°

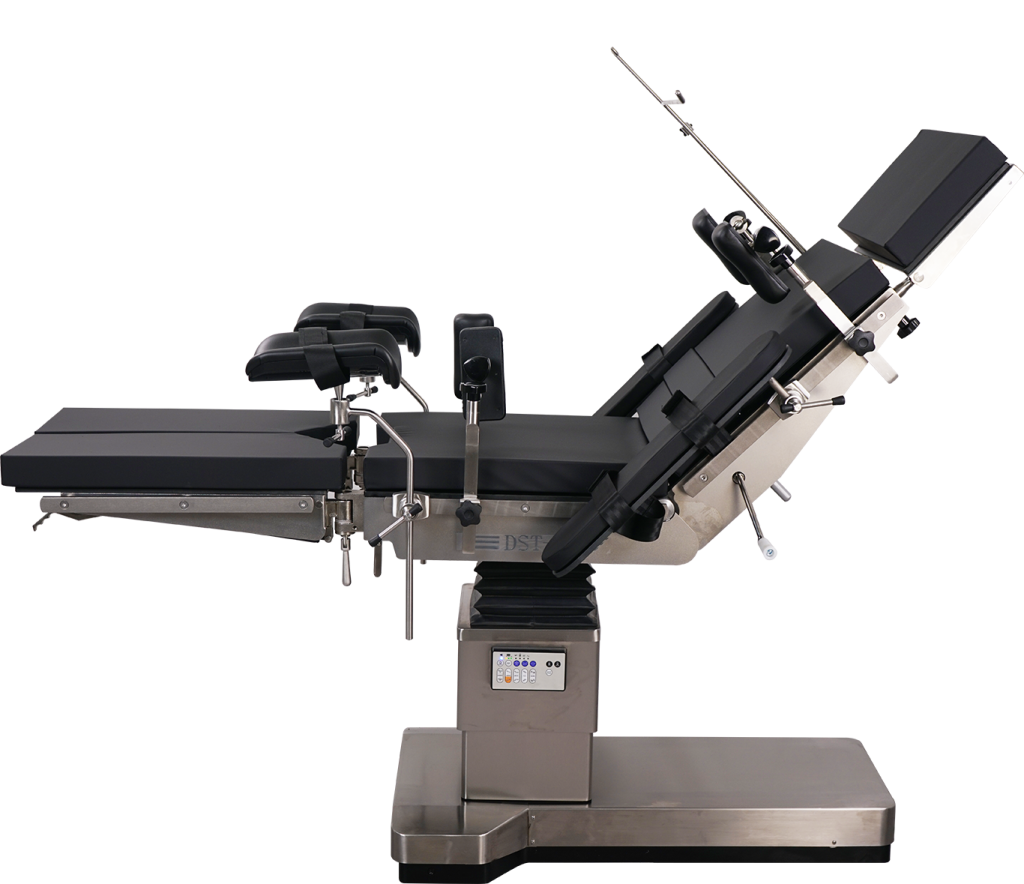

Back rest movement +80°/ -45°±2°

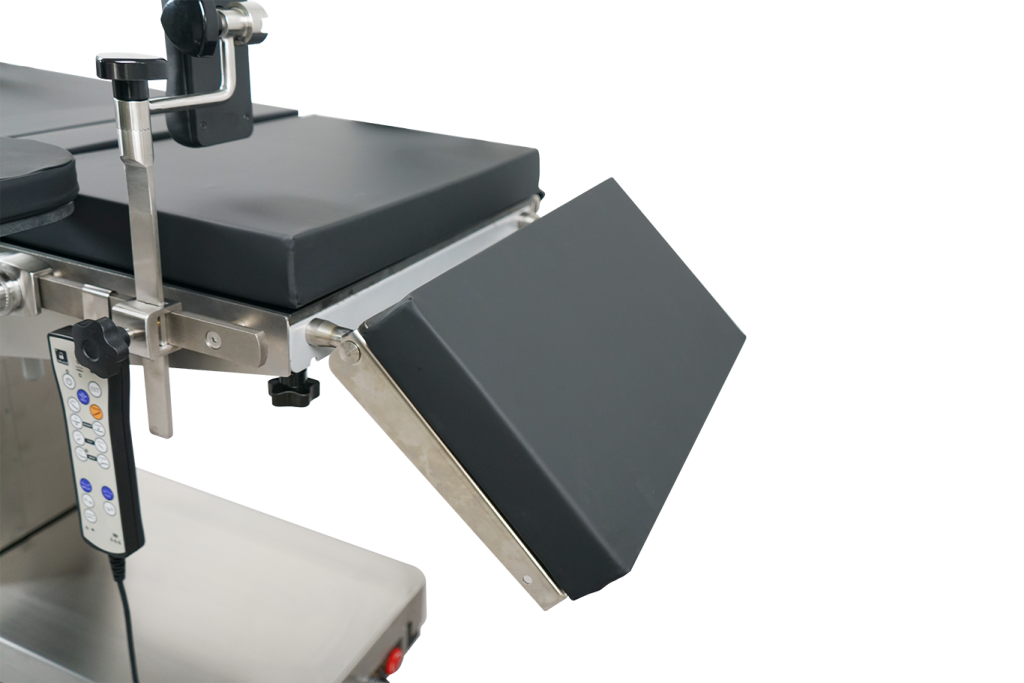

Leg rest up/down +28°/ -90°±2°
Head rest movement +30°/ -90°±2°

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
