DESCRIPTION

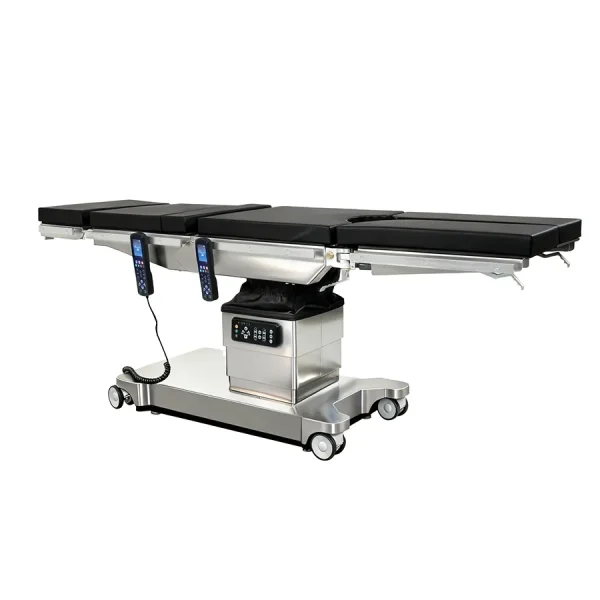

● Electro-hydraulic system for smooth, precise multi-directional adjustments.

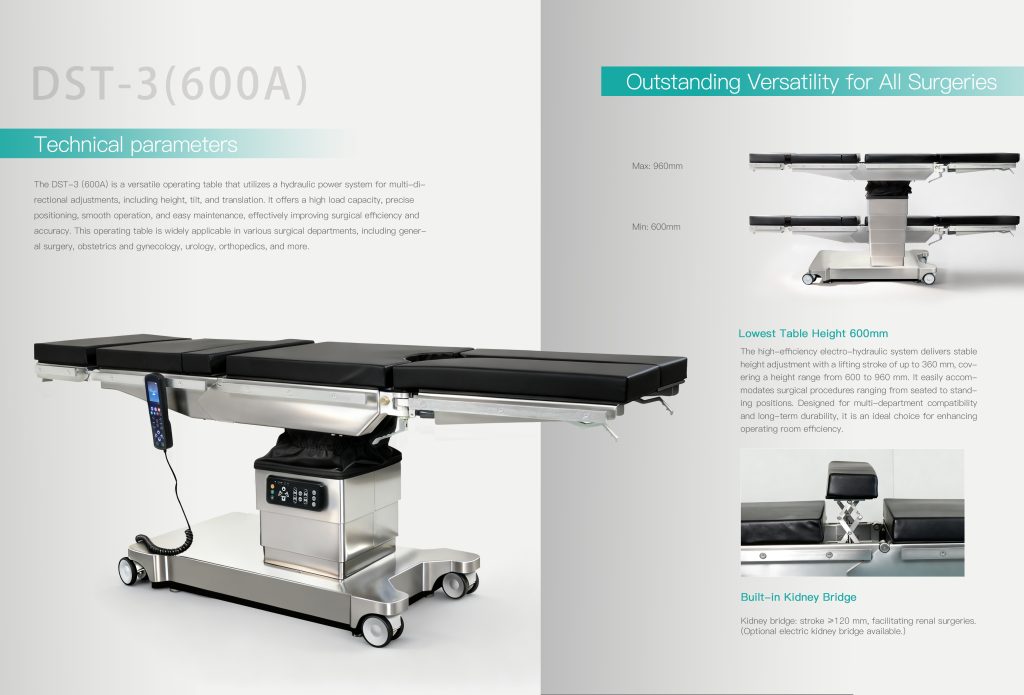

● Height range 600–960 mm with 360 mm stable lifting stroke.
● High load capacity up to 560 kg, suitable for bariatric patients.
● Integrated kidney bridge ≥120 mm for renal surgery, electric optional.

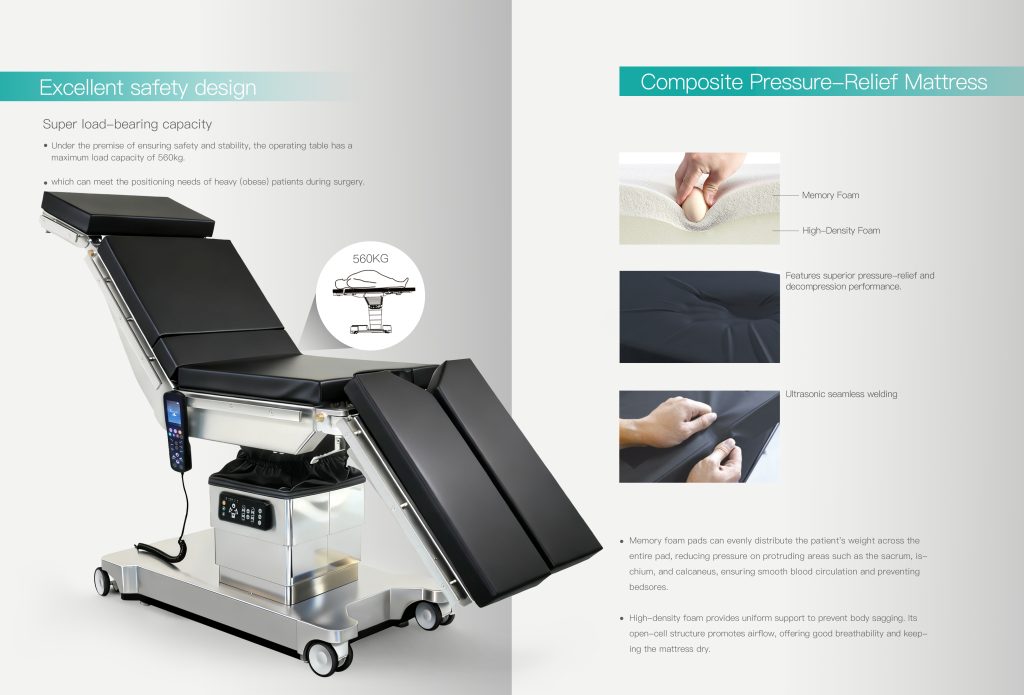

● Memory foam mattress for pressure relief and improved patient comfort.
● Dual control system with handset and backup panel for continuous operation.

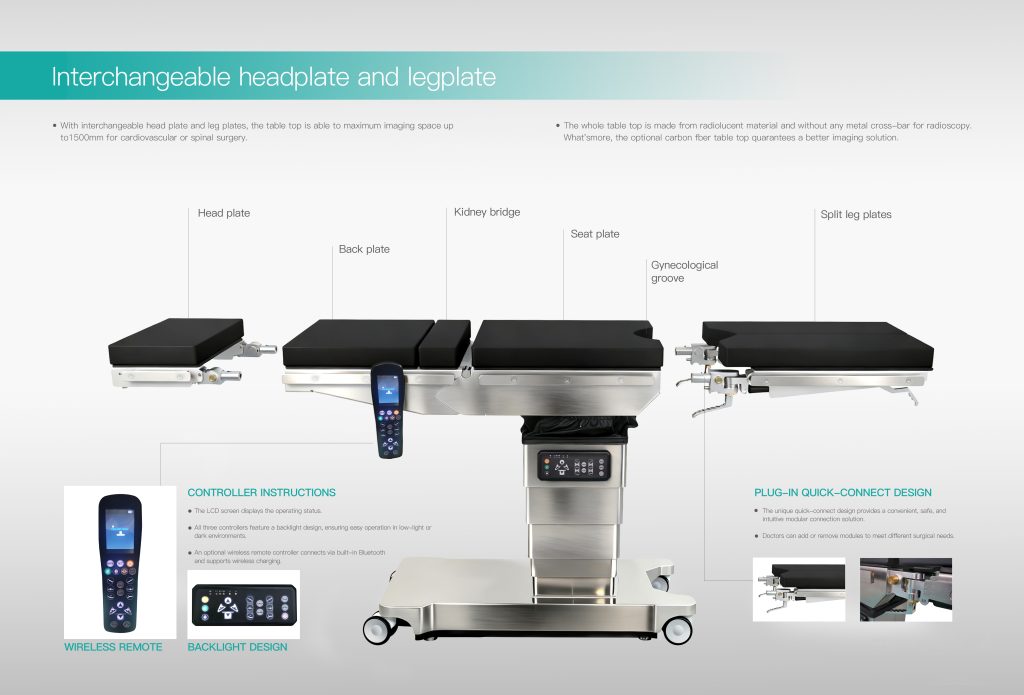

● Quick-release modular design for flexible head and leg section configuration.

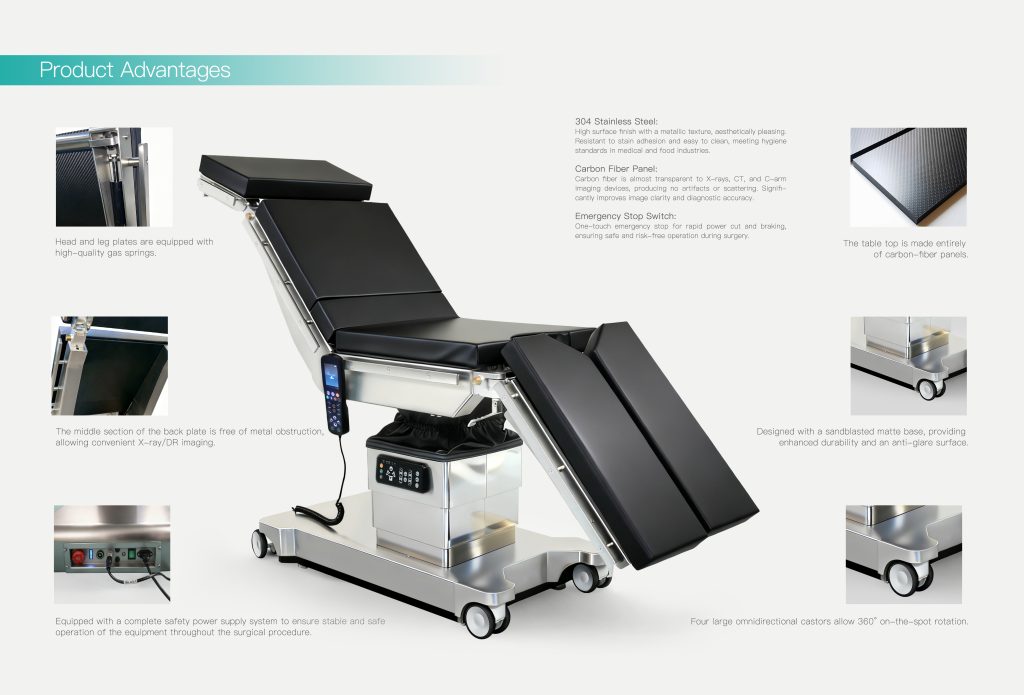

● Durable 304 stainless steel with matte anti-glare, easy-clean surface.
● Optional carbon fiber tabletop for artifact-free imaging with X-ray and C-arm.
● Up to 1500 mm radiolucent imaging space for cardiovascular and complex procedures.
PARAMETER
| Parameter | Specification |
|---|---|
| Tabletop Dimensions | 2170 × 520 mm |
| Height Adjustment Range | 600–960 mm (excluding mattress) |
| Trendelenburg / Reverse Trendelenburg | 36° |
| Lateral Tilt (Side Tilt) | 26° |
| Back Section Adjustment | Up 80° / Down 40° |
| Leg Section Adjustment | Up 35° / Down 90° / Abduction 90° (manual) |
| Head Section Adjustment | Up 60° / Down 90° (manual) |
| Kidney Bridge Elevation | 120 mm (manual) |
| Longitudinal Slide | 350 mm |
| Maximum Load Capacity | 560 kg |
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
