DESCRIPTION

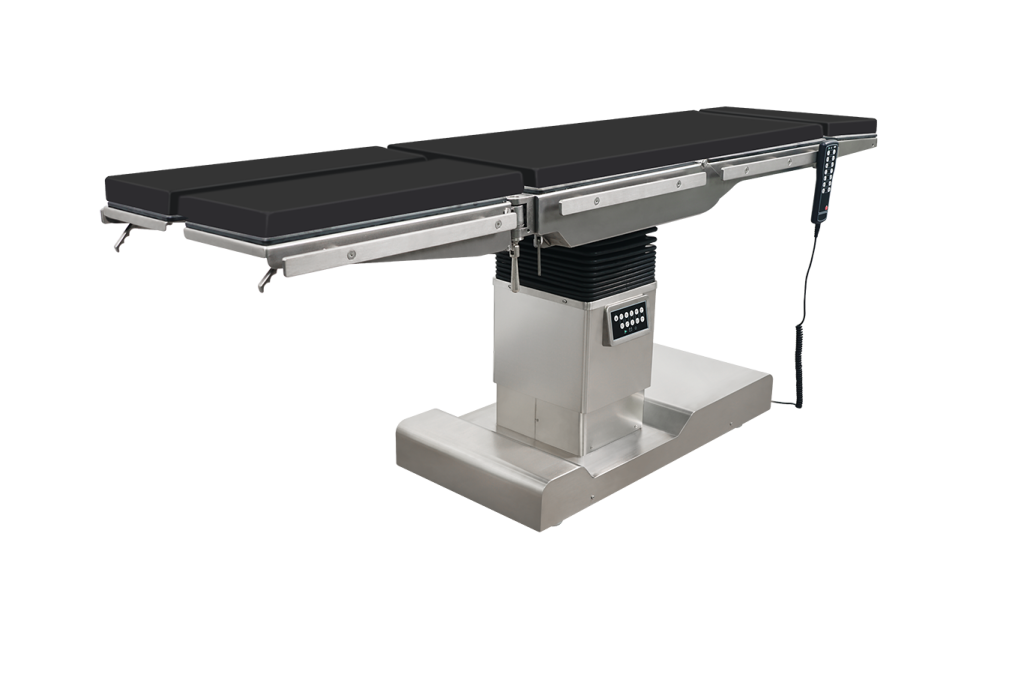

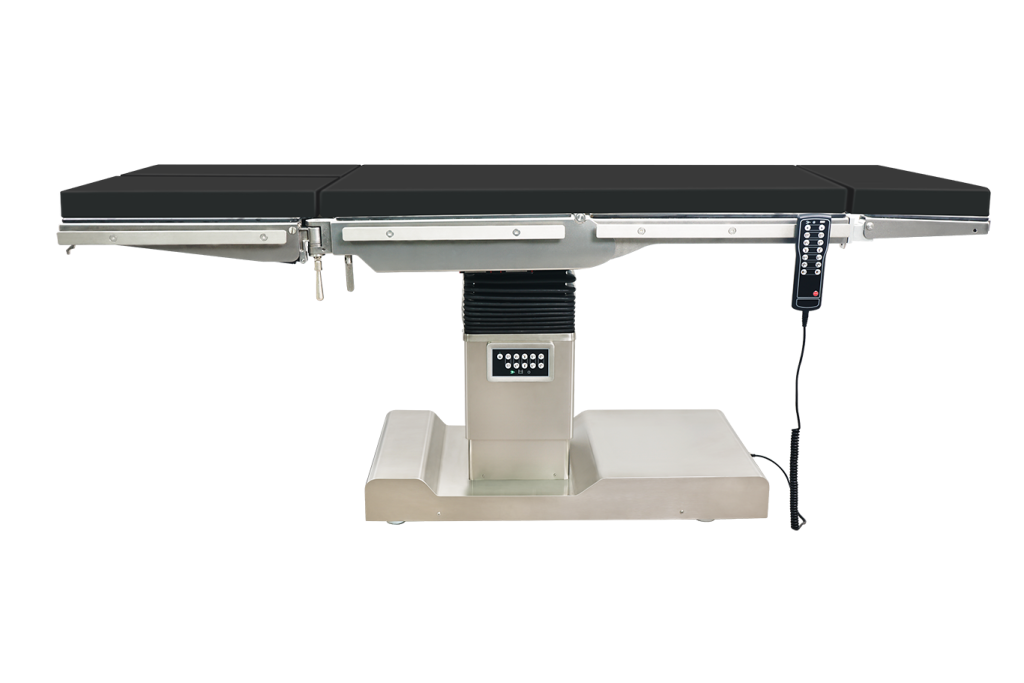

● Precision medical micro-motor with gear-driven structure for smooth, stable, and reliable operation.
● Rigid structure ensures steady speed, accurate positioning, and long-term durability.
● 304 stainless steel frame, corrosion-resistant and easy to clean.

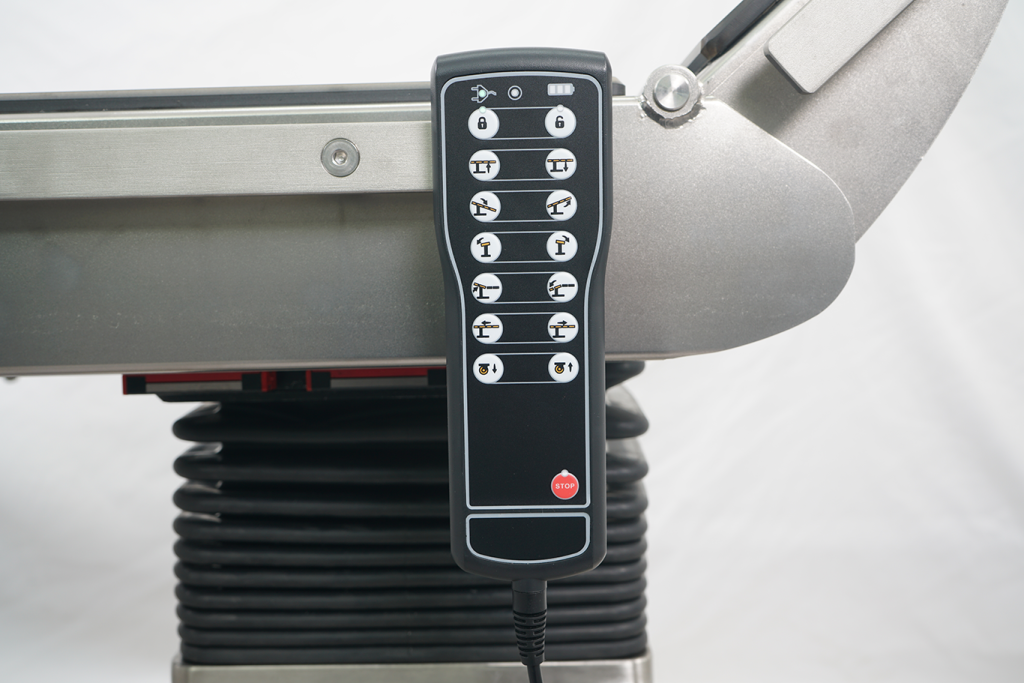

● Dual-controller system for convenient operation and backup control.

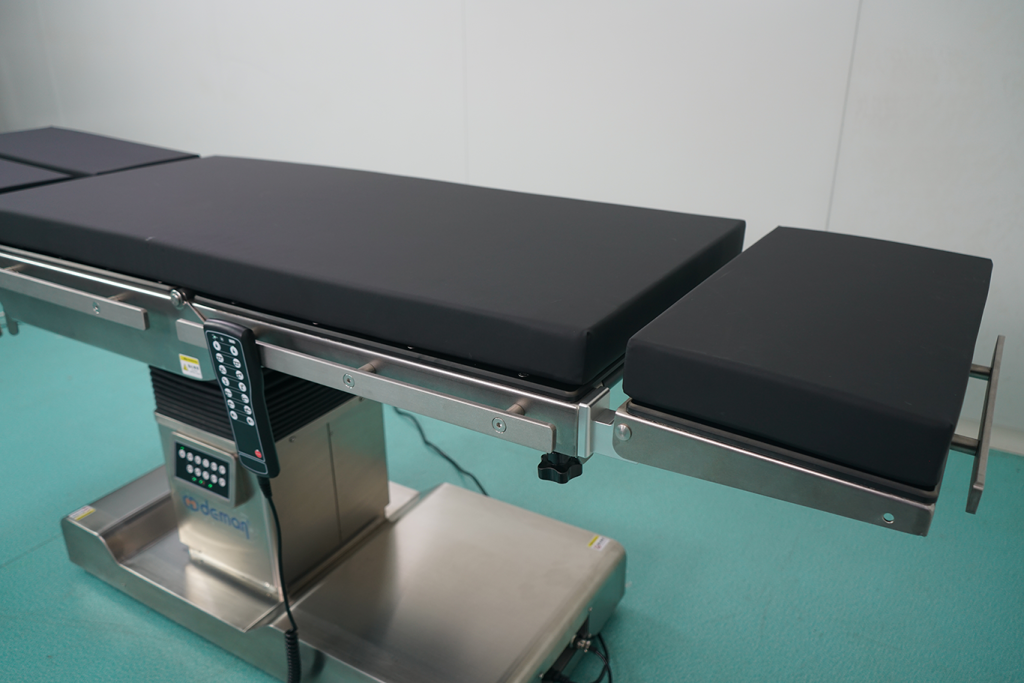

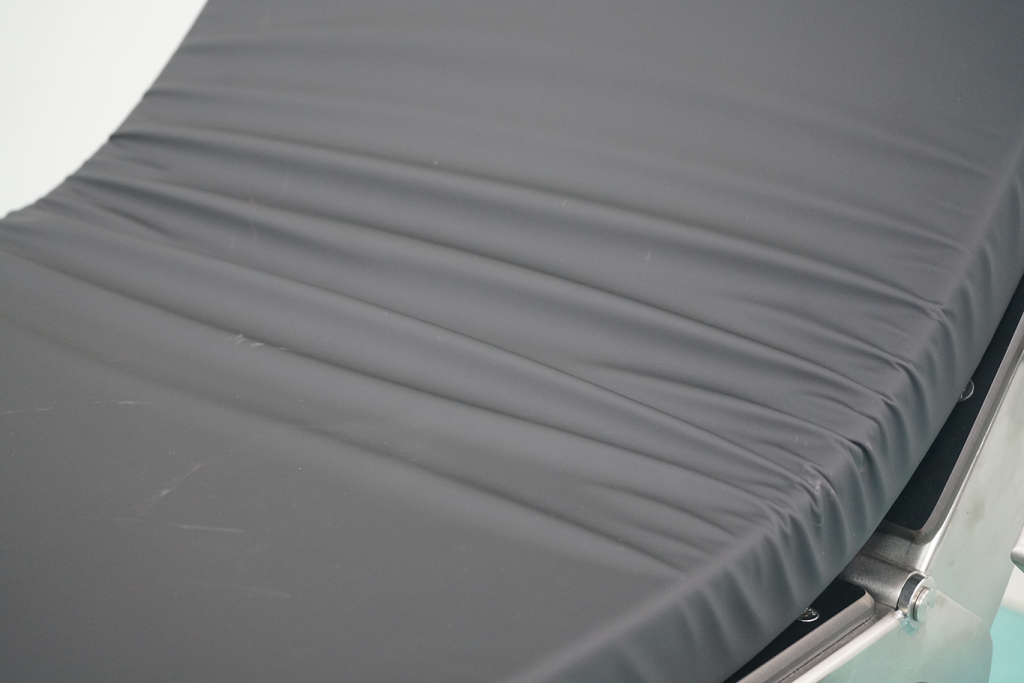

● HPL tabletop with excellent resistance to impact, heat, and chemicals.
● Electric braking system for secure and stable positioning.
PARAMETER
| Product Model | Parameters |
|---|---|
| Tabletop Specifications | 2100mm×540mm |
| Tabletop Height | 670~970mm |
| Height Adjustment Range | 300mm (Electric) |

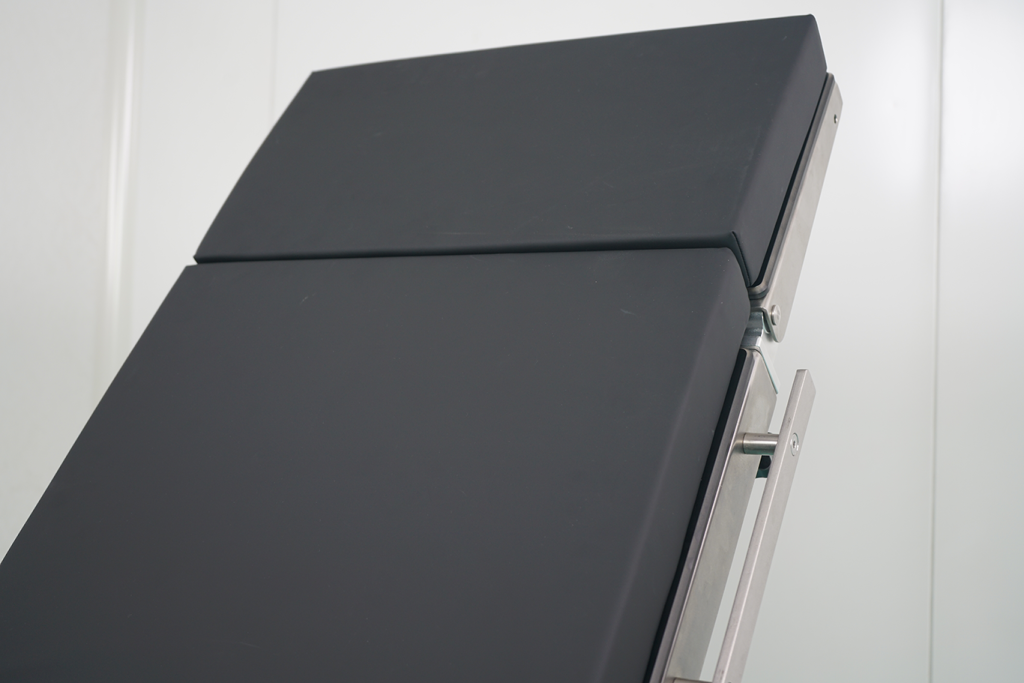

| Head Section | Upward fold: 25°±2°, Downward fold: 90°±2° (Manual) |

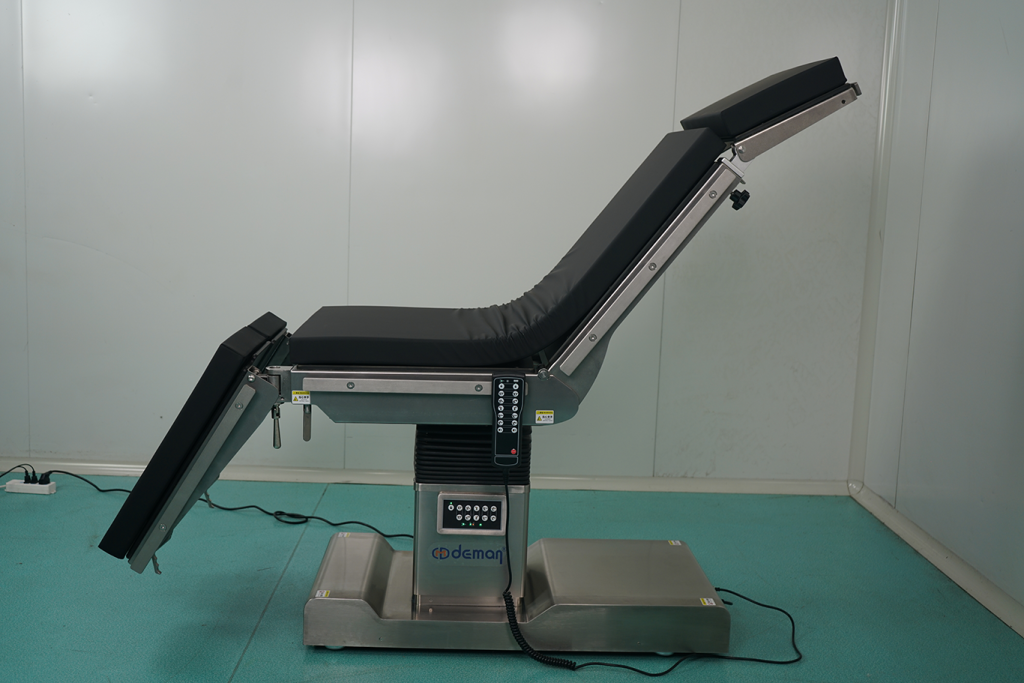

| Back Section | Upward fold: 70°±2°, Downward fold: 35°±2° (Electric); |

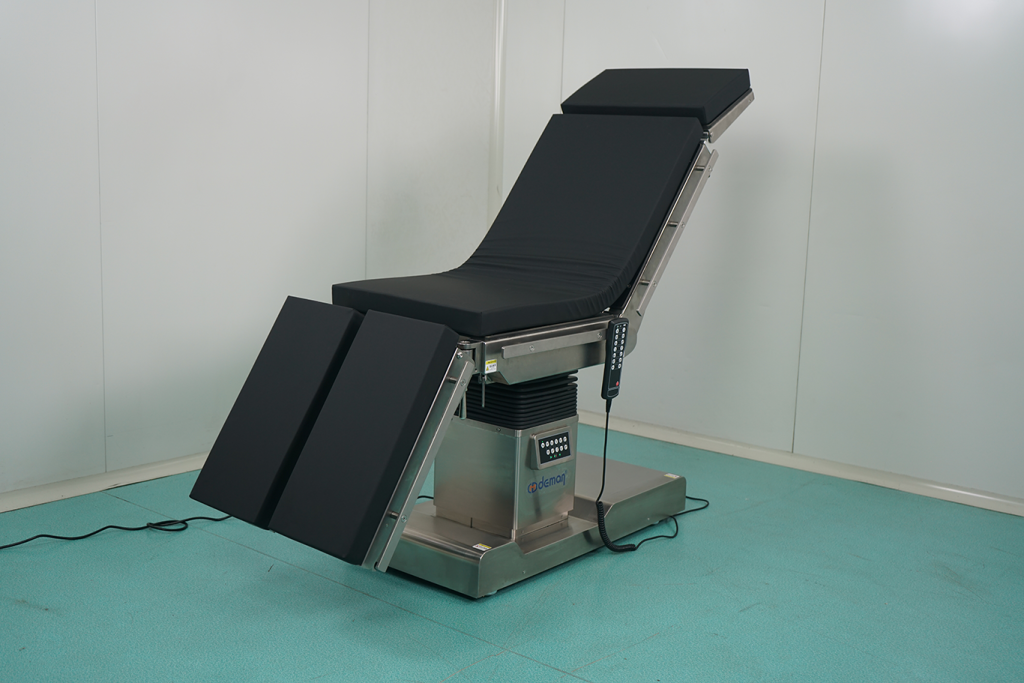

| Leg Section | Upward fold: 25°±2°, Downward fold: 90°, Horizontal outward extension: 90° (Manual) |
| Trendelenburg / Reverse Trendelenburg Angle | Head-down tilt: 25°±2° (Electric) |
| Trendelenburg / Reverse Trendelenburg Angle | Foot-down tilt: 25°±2° (Electric) |
| Lateral Tilt Angle | Left tilt: 25°±2° (Electric) |
| Lateral Tilt Angle | Right tilt: 25°±2° (Electric) |
| Kidney Bridge Elevation | 120mm (Manual) |
| Longitudinal Travel | 300±20mm (Electric) |
| Maximum Load Capacity | 300KG |
| Power Supply | 220V 50HZ 750VA |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
