DESCRIPTION

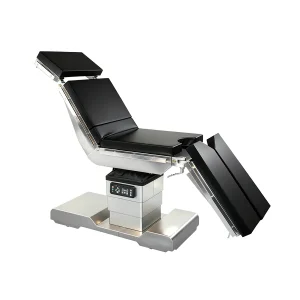

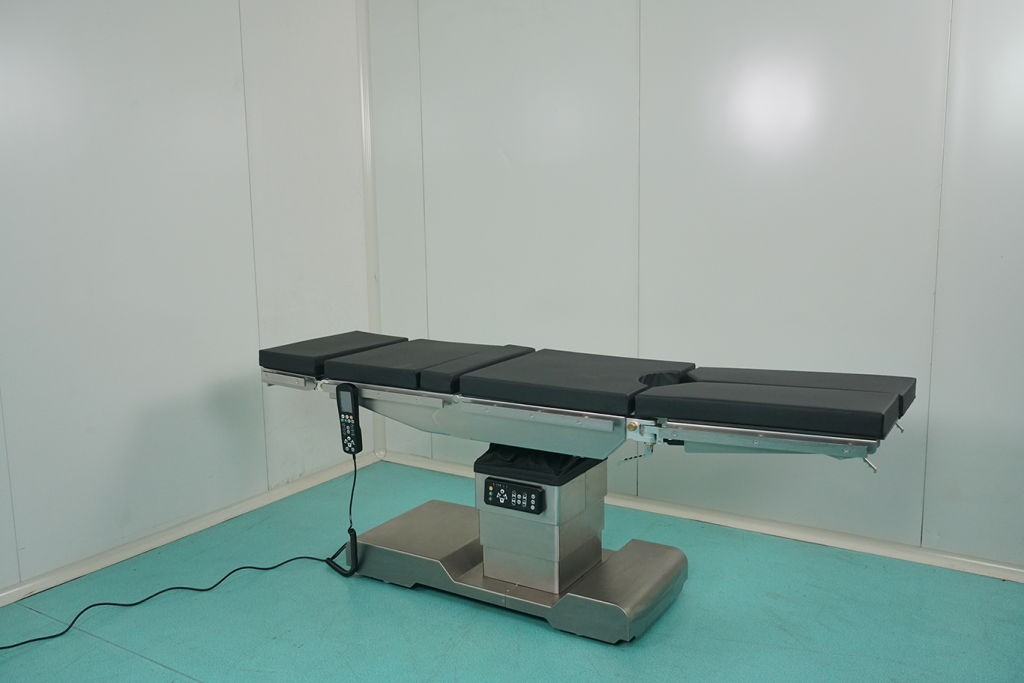

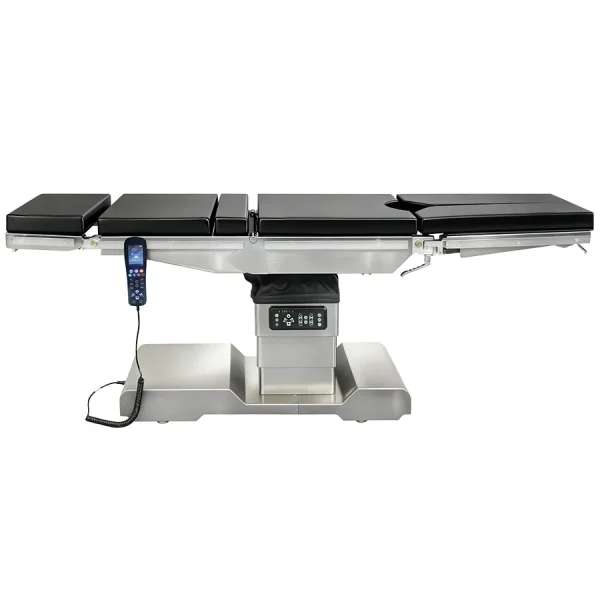

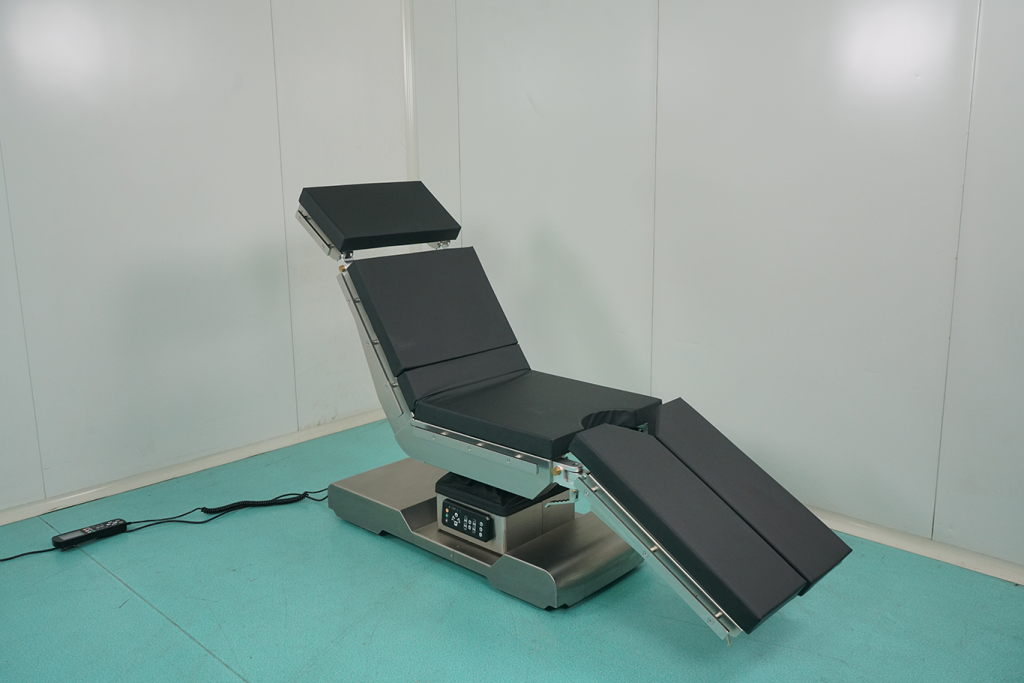

● Electric-hydraulic system with 360 mm lift range and 600–960 mm height adjustment for versatile surgical positioning.
● High load capacity up to 560 kg, suitable for bariatric patients.

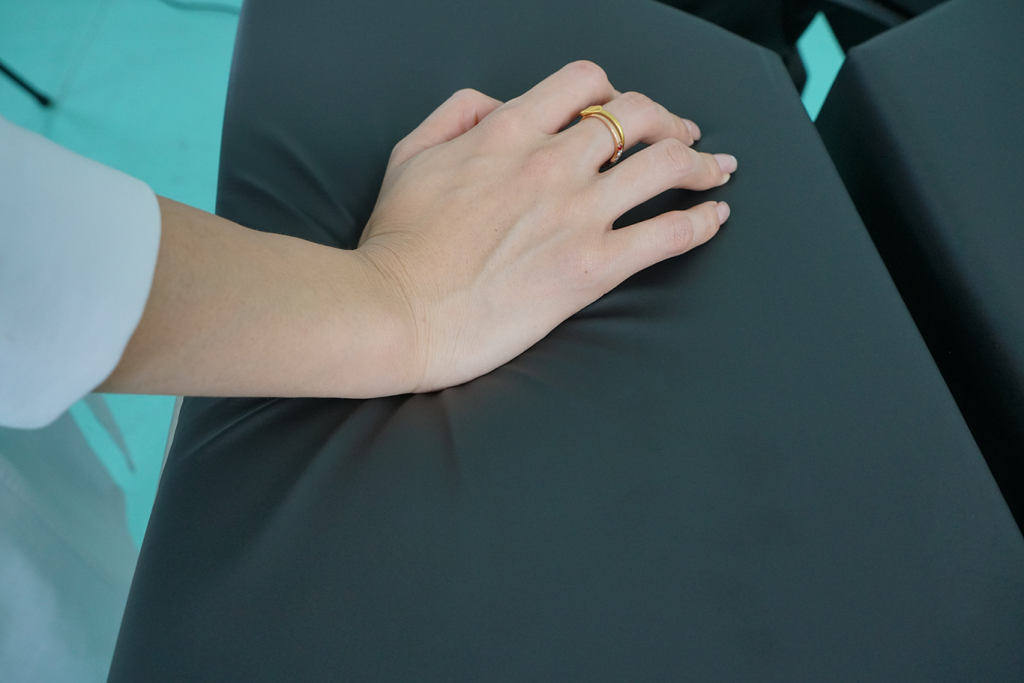

● Memory foam mattress evenly distributes pressure to prevent pressure sores.
● High-density breathable sponge ensures comfort and prevents body sagging.

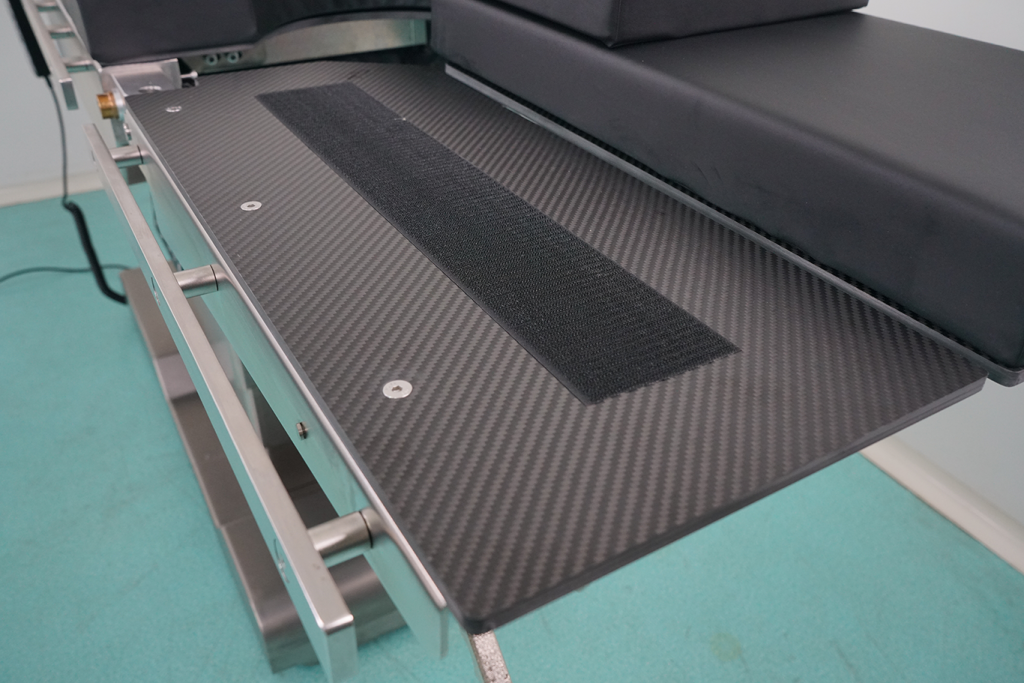

● Carbon fiber tabletop provides high strength with full X-ray transparency.
● Interchangeable head and leg sections offer up to 1500 mm imaging space for C-arm/DR use.

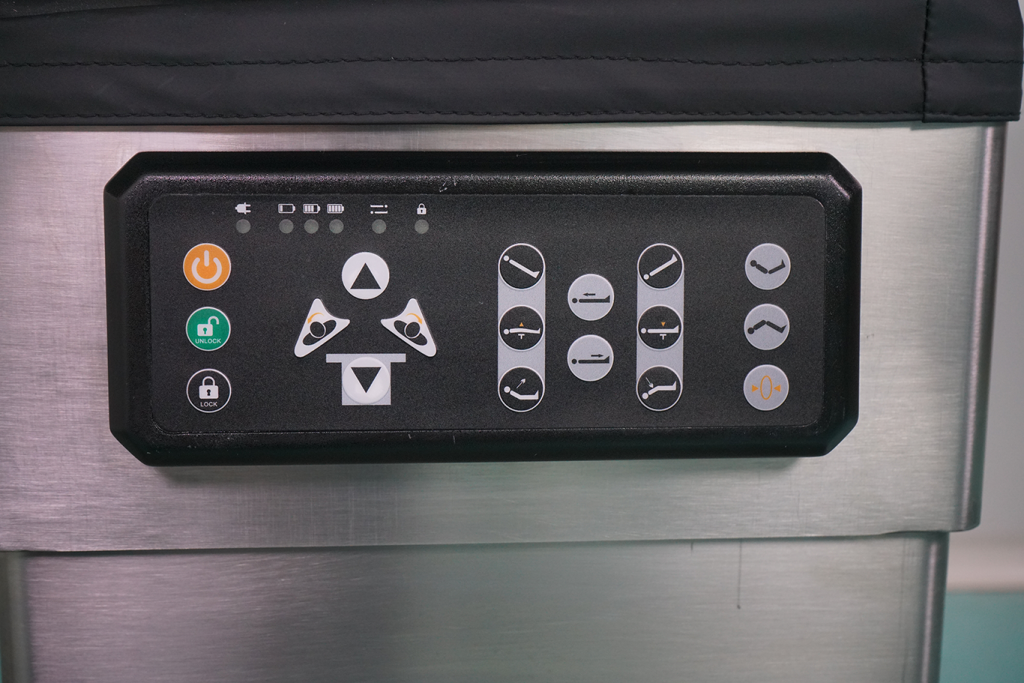

● LCD display with backlit controls for clear operation in low-light environments.

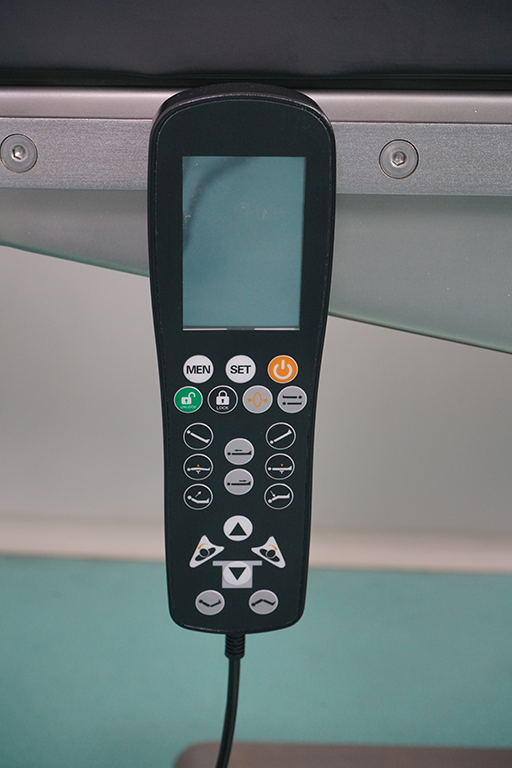

● Optional wireless remote with Bluetooth connection and wireless charging.

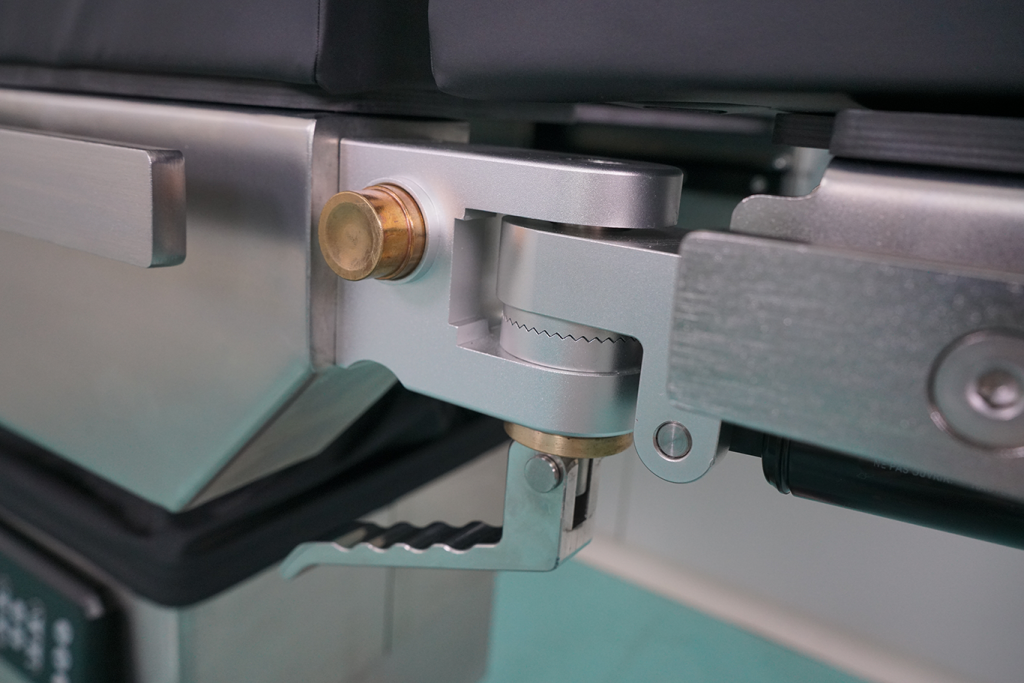

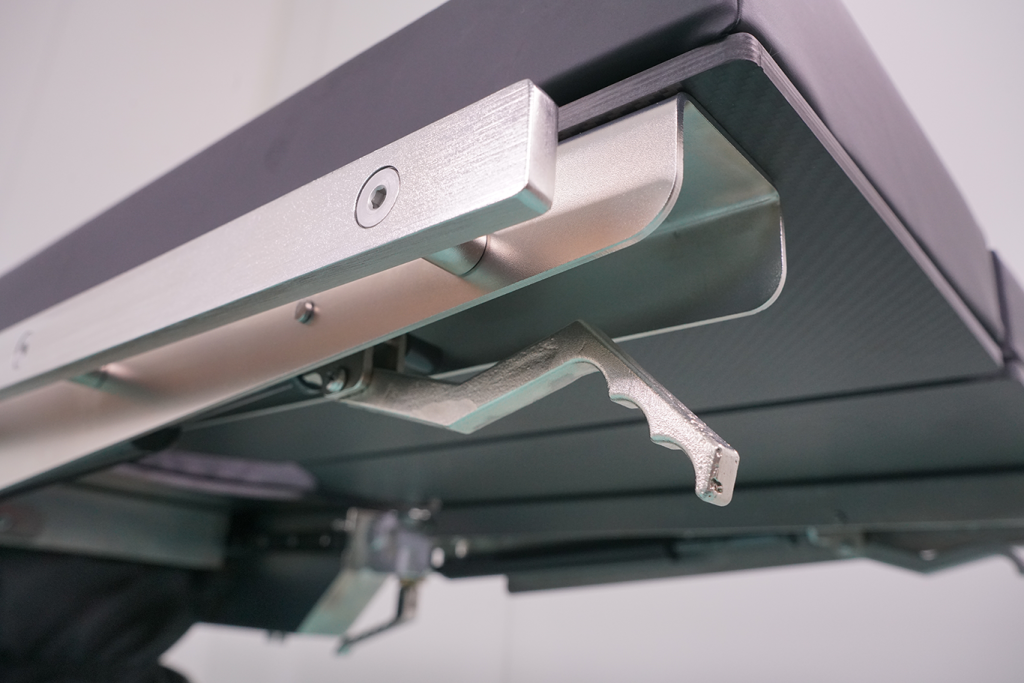

● Modular quick-connect design for easy and safe attachment or removal of components.

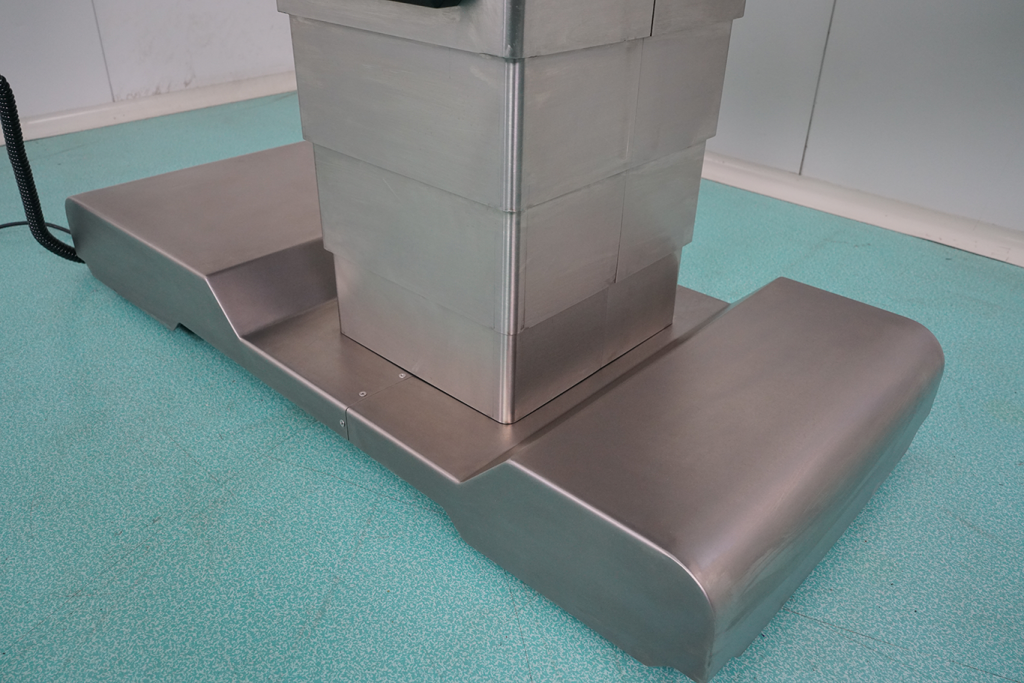

● Durable 304 stainless steel with matte finish, easy to clean, non-reflective, and compliant with medical standards.
PARAMETER
| Item | Specifications |
|---|---|
| Tabletop Dimensions | 2170 × 520 mm |
| Tabletop Height (without mattress) | 600–960 mm |
| Trendelenburg / Reverse Trendelenburg | 36° |
| Lateral Tilt Angle | 26° |

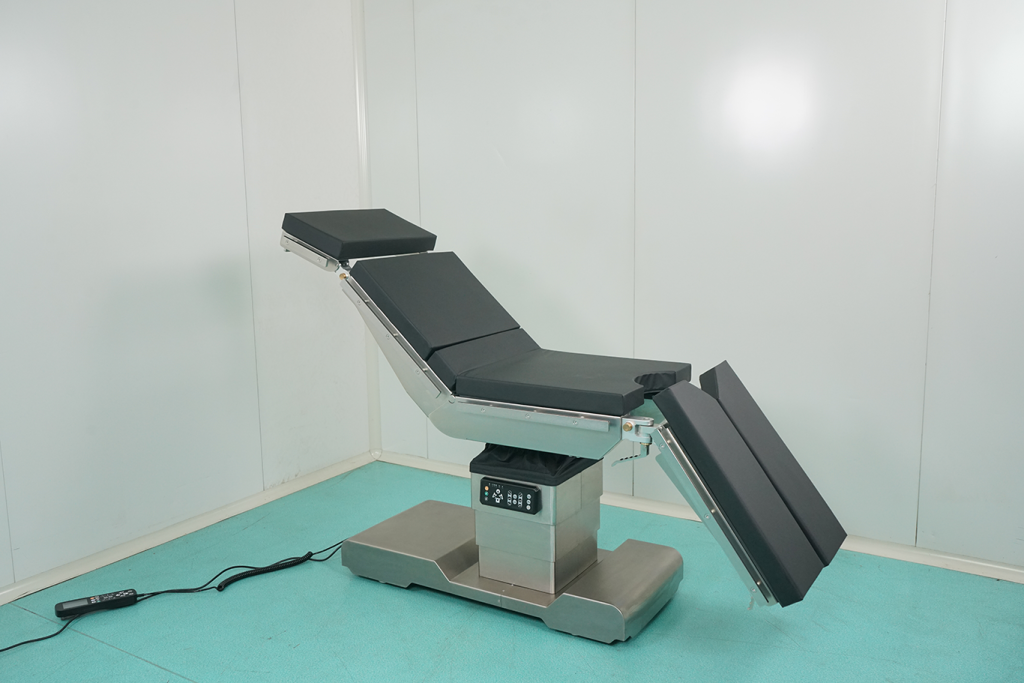

| Back Section | Up 80° / Down 40° |
| Leg Section | Up 35° / Down 90° / Abduction 90° (Manual) |
| Head Section | Up 60° / Down 90° (Manual) |
| Kidney Bridge Travel | 120 mm (Manual) |
| Longitudinal Travel | 350 mm |
| Maximum Load Capacity | 560 kg |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
