DESCRIPTION
● Equipped with precision medical micro-motors and an electric gear-driven mechanical structure for smooth operation.
● Five programmable memory positions allow the table to return to preset surgical positions at any time.
● ABS engineering plastic base cover with anti-glare treatment reduces eye fatigue and allows easy cleaning and disinfection.

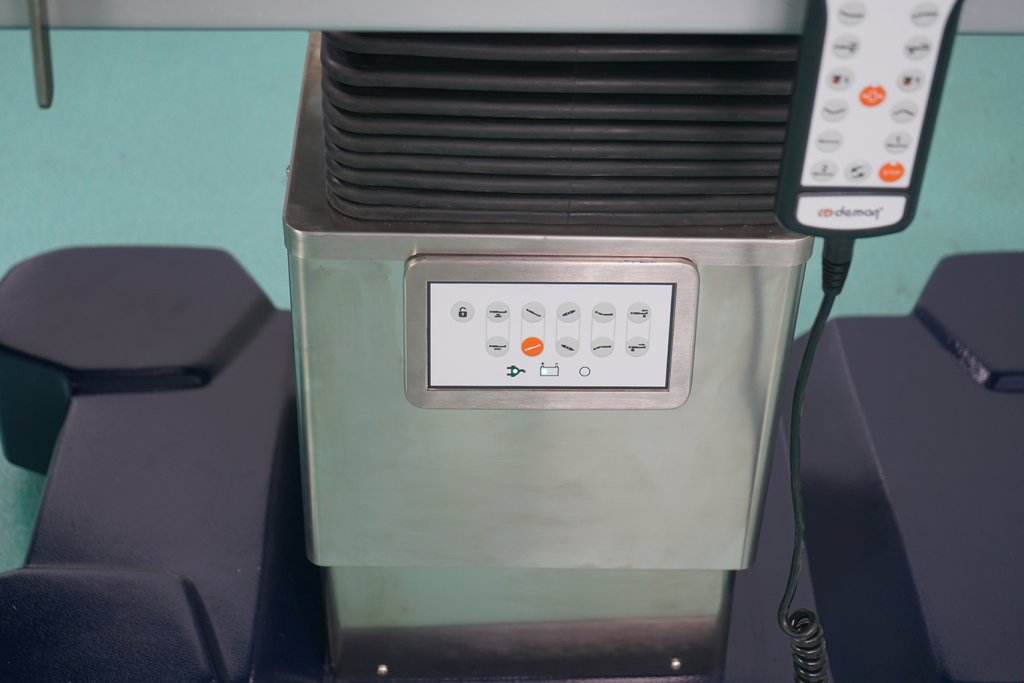

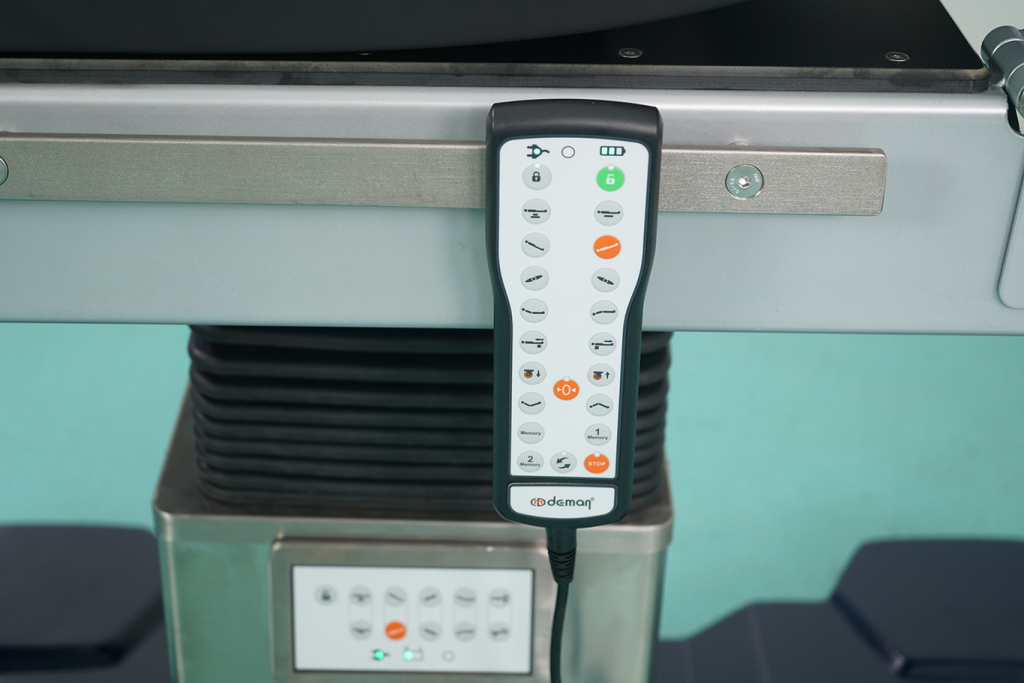

● Dual-controller operating system enables one controller to be used while the other serves as backup for greater convenience.
● Tabletop made of high-strength Compact Laminate (HPL) with excellent resistance to impact, water, chemicals, heat, and abrasion.
● Mattress made of high-density, soft seamless sponge, reducing pressure points; waterproof, easy to clean, and detachable.
PARAMETER
| Product Model | Parameters |
|---|---|
| Tabletop Dimensions | 2100 mm × 540 mm |
| Tabletop Height | 670–920 mm |
| Height Adjustment Range | 250 mm (Electric) |
| Head Section | Up 25° ±2°, Down 90° ±2° (Manual) |
| Back Section | Up 70° ±2°, Down 35° ±2° (Electric) |
| Leg Section | Up 25° ±2°, Down 90°, Horizontal extension 90° (Manual) |
| Trendelenburg / Reverse Trendelenburg | Head-down: 25° ±2° (Electric) Foot-down: 25° ±2° (Electric) |
| Lateral Tilt Angle | Left: 25° ±2° (Electric) Right: 25° ±2° (Electric) |
| Longitudinal Travel | 300 ±20 mm (Electric) |
| Maximum Load Capacity | 300 kg |
| Kidney Bridge Elevation | 120 mm |
| Power Supply | 220V, 50Hz, 750VA |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
