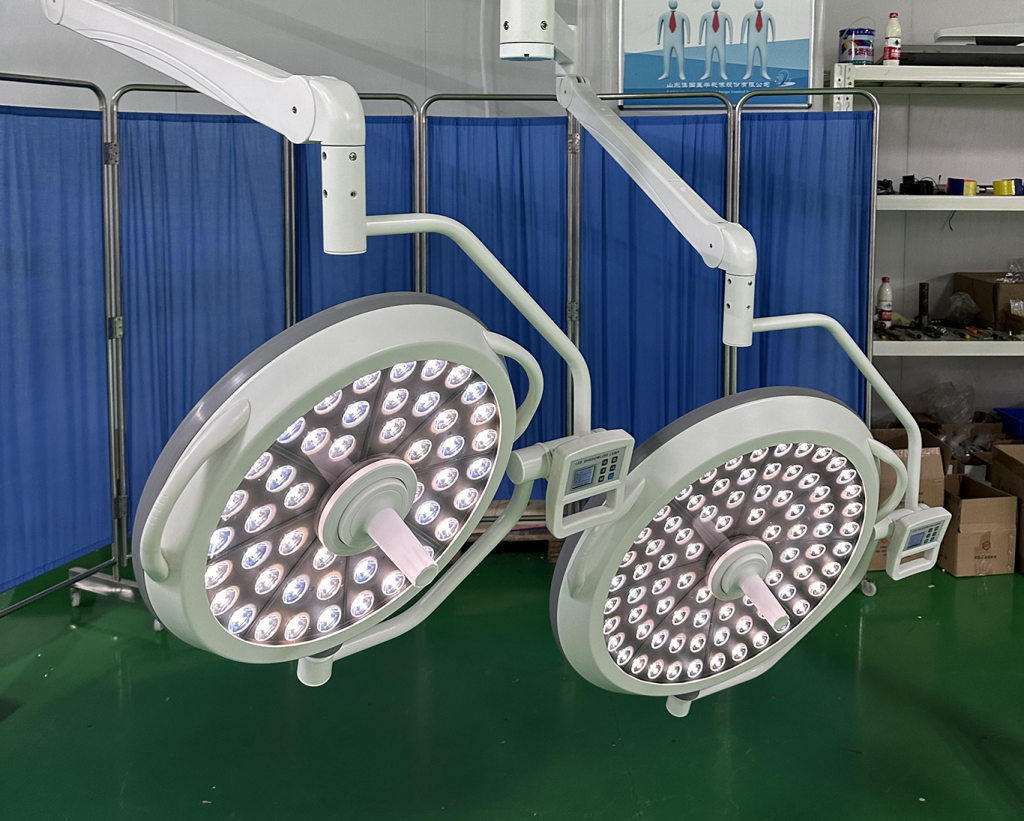

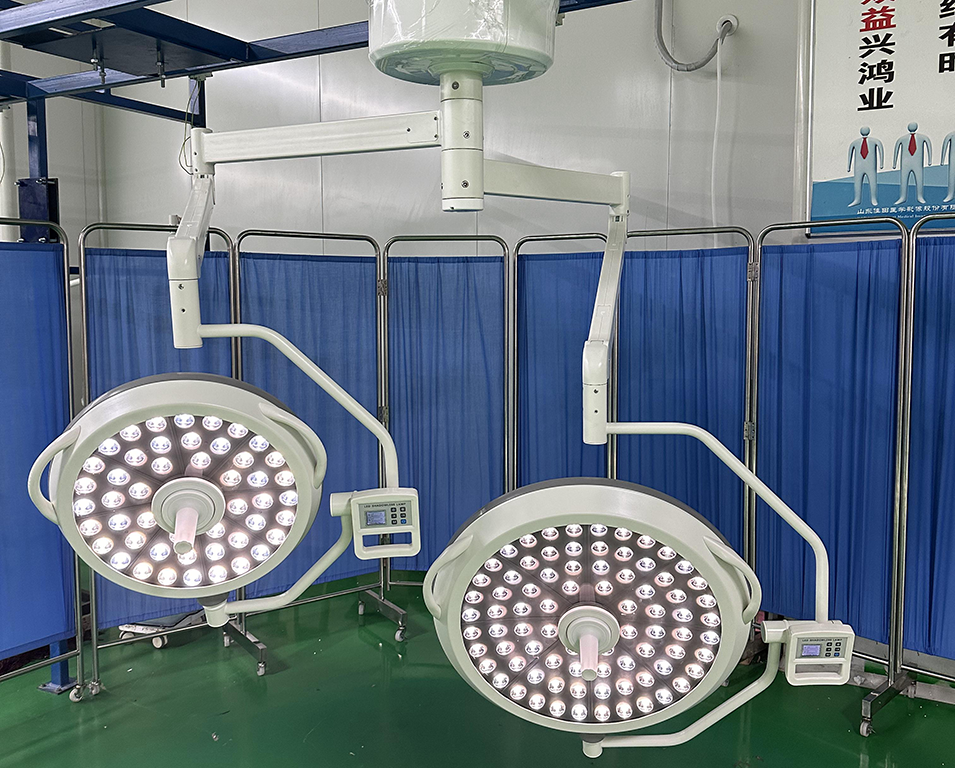

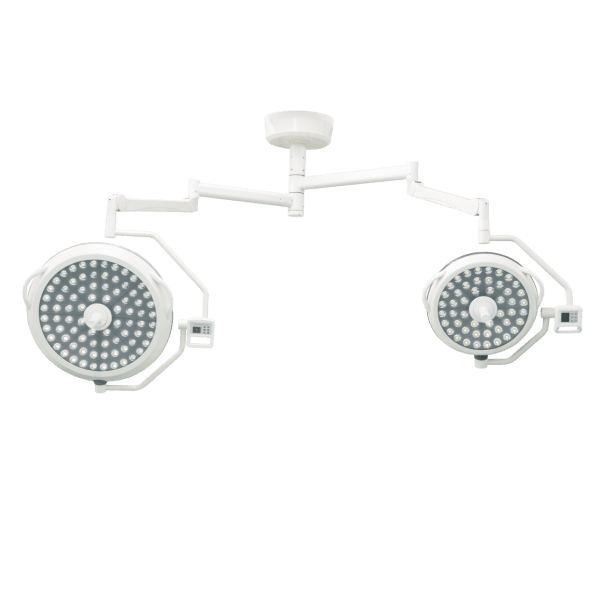

Star Array-Type Dual Head LED Surgical Operating Light YDE700/500

● Manual focus design with low heat and long service life.

● Laminar airflow compatibility with flexible positioning and sterilizable handle.

● OSRAM LED system with adjustable color temperature and bright, uniform illumination.

DESCRIPTION

● Equipped with premium OSRAM LED modules with adjustable color temperature (3000K–6700K) while maintaining CRI ≥90 for accurate tissue differentiation.

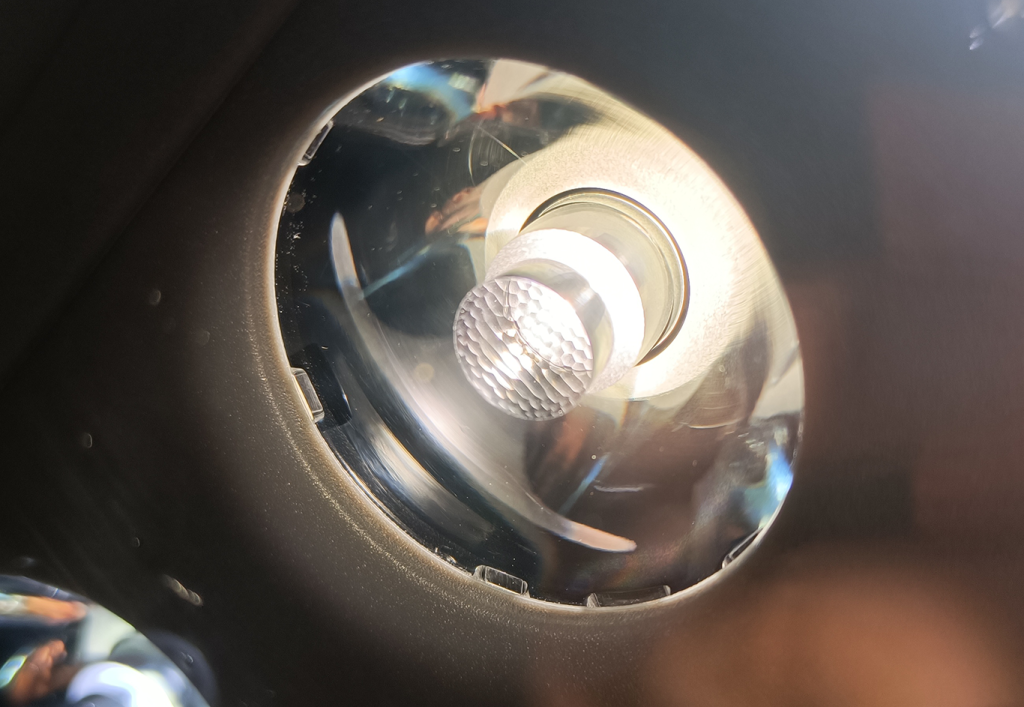

● Provides bright, uniform illumination up to 160,000 lux through high-performance optical lenses, with independent stepless digital brightness control for each lamp head.
● Features a highly reliable modular LED design, where each module has an independent electronic control system, ensuring continuous operation even if a single LED fails.
● The manual focusing system allows smooth spot size adjustment while maintaining excellent shadow-free illumination for both large open surgeries and minimally invasive procedures.
● Low heat generation with virtually no infrared or ultraviolet radiation, delivering safe cold light illumination with minimal thermal impact on tissues.
● Offers an ultra-long service life of up to 100,000 hours, significantly reducing replacement frequency and maintenance costs.
● Energy-efficient LED arrangement, optimized through 3D optical simulation for maximum performance with lower power consumption.
● The laminar airflow compatible design minimizes airflow disturbance while maintaining optimal operating temperature for extended LED lifespan.

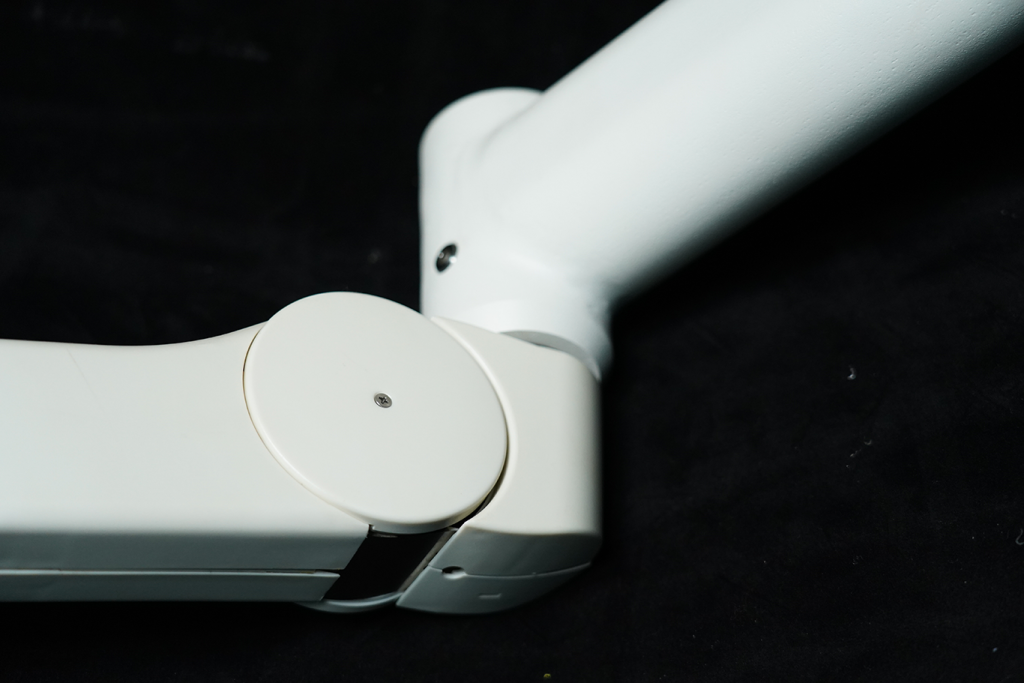

● Equipped with a premium spring arm suspension system, enabling smooth 340° rotation, flexible movement, and precise positioning.
● The removable sterilizable handle cover supports 135°C high-temperature sterilization and allows convenient adjustment of focus, position, and angle.

PARAMETER

Parameter Unit 700 Lamp Head 500 Lamp Head
Central Illuminance Lux 40,000–160,000 40,000–120,000
Color Temperature K 3000–6700 3000–6700
Color Rendering Index (CRI, Ra) ≥90 ≥90
Light Field Depth mm ≥1100 ≥1100
Irradiance at Wavelength <400 nm W/m² ≤0.006 ≤0.006
Focus Adjustment Manual Focusing Manual Focusing
LED Configuration W / pcs 1 W × 80 LEDs 1 W × 48 LEDs
Power Supply AC 220 V, 50 Hz AC 220 V, 50 Hz
Input Power W 100 80
Average LED Service Life h 100,000 100,000
Minimum Installation Height m 2.8 2.8

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
