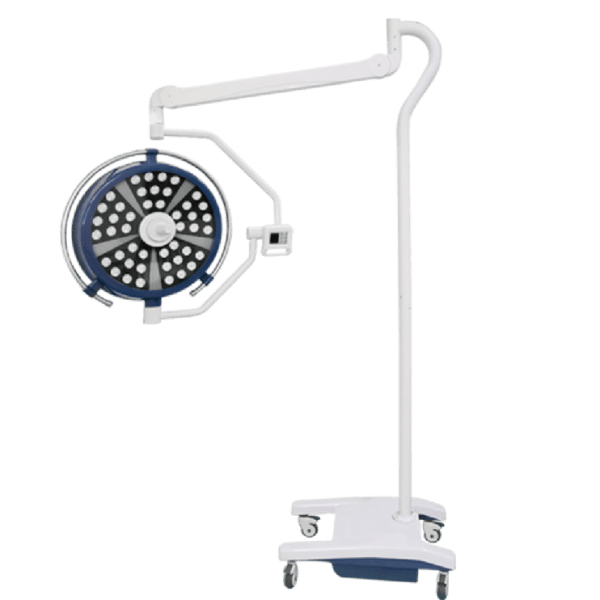

Aluminum-Type LED Surgical Operating Light YDE500D

● Electric focus design with low heat, energy-saving performance and long service life.

● Mobile floor-standing structure with flexible positioning and sterilizable handle.

● OSRAM LED system with adjustable color temperature and uniform 120,000 lux illumination.

DESCRIPTION

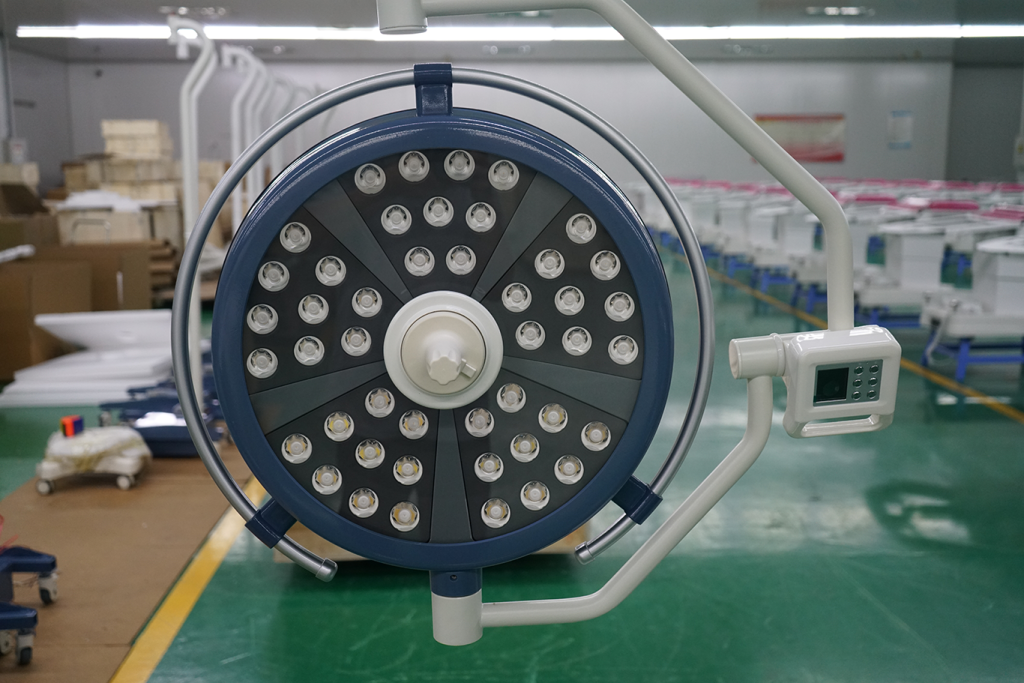

● Equipped with premium OSRAM LED modules featuring adjustable color temperature from 3000K–6700K while maintaining CRI ≥90 for accurate tissue differentiation.
● Provides bright and uniform illumination up to 120,000 lux through high-performance optical lenses, with independent stepless digital brightness adjustment for each lamp head.

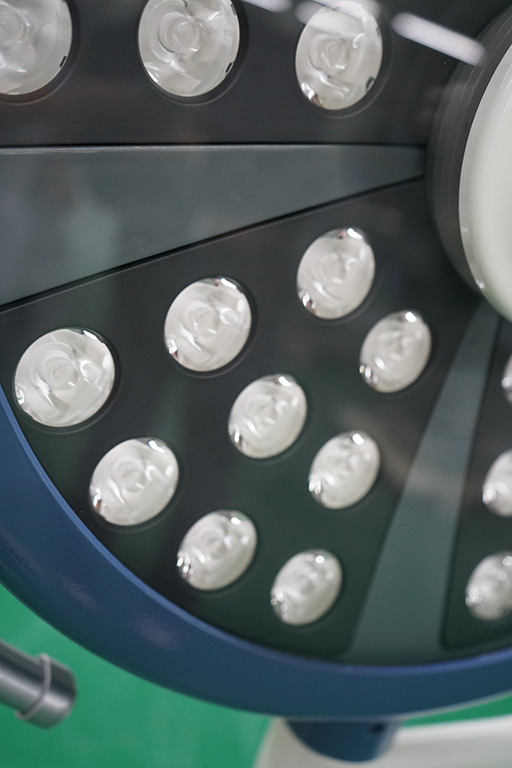

● Features a highly reliable modular LED design, where each module has an independent electronic control system to ensure continuous operation even if a single LED fails.
● The electric focusing system delivers uniform shadow-free illumination with adjustable spot size, suitable for both major open surgeries and minimally invasive procedures.
● LED cold light technology produces minimal heat with virtually no infrared or ultraviolet radiation, improving surgical comfort and tissue safety.
● Offers an ultra-long service life of up to 100,000 hours, reducing maintenance and replacement frequency.
● Energy-efficient LED arrangement optimized through 3D optical simulation achieves high lighting performance with lower power consumption.

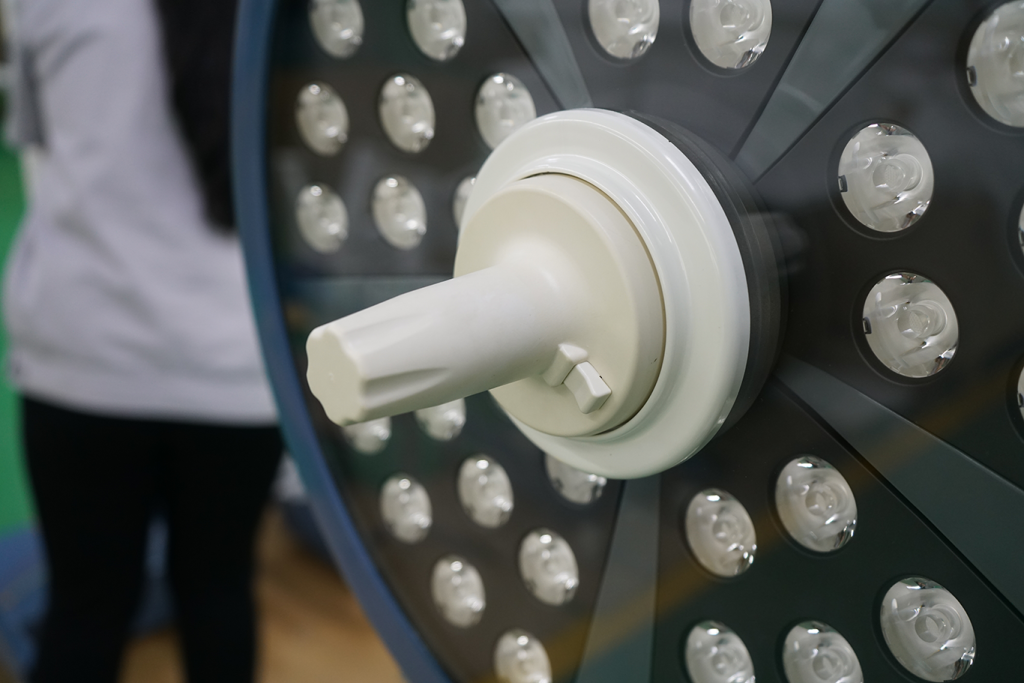

● The removable handle cover supports 135°C high-temperature sterilization and allows convenient adjustment of lamp position and angle.

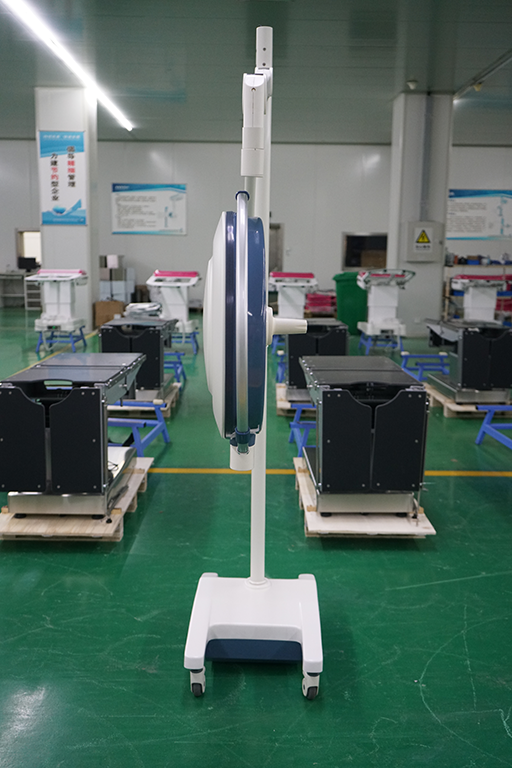

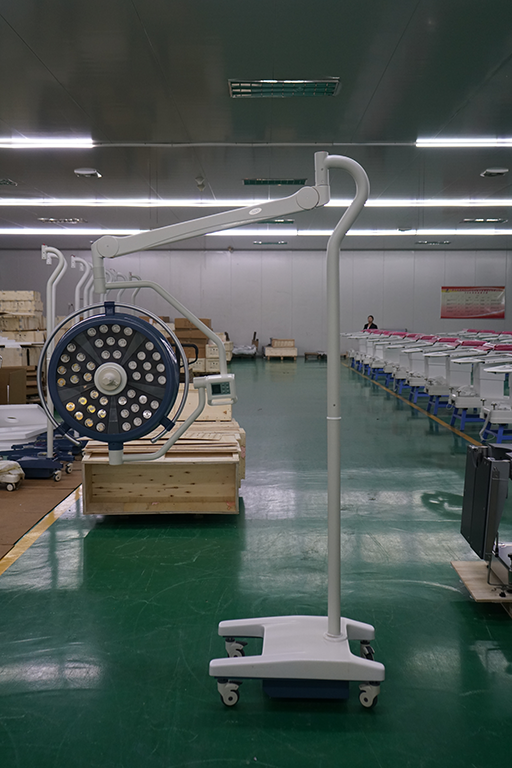

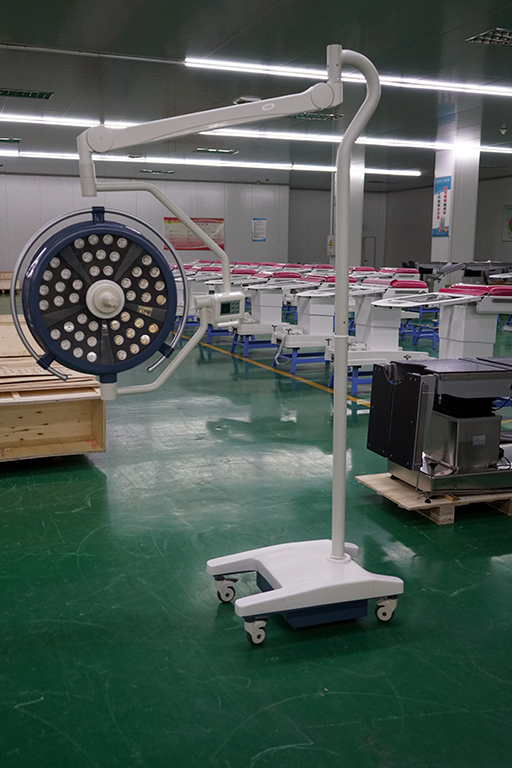

● Mobile floor-standing design with flexible movement and modern appearance, suitable for ENT, urology, gynecology, and auxiliary operating room illumination applications.

PARAMETER

Parameter Unit 500 Lamp Head
Central Illuminance Lux ≤120,000
Color Temperature K 3000–6700
Color Rendering Index (CRI, Ra) ≥90
Light Field Depth mm 1100
Irradiance at Wavelength <400 nm W/m² ≤0.006
Focus Adjustment Motorized Focusing
LED Configuration W / pcs 1 W × 45 LEDs
Power Supply AC 220 V, 50 Hz
Input Power W 80
Average LED Service Life h 100,000

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
