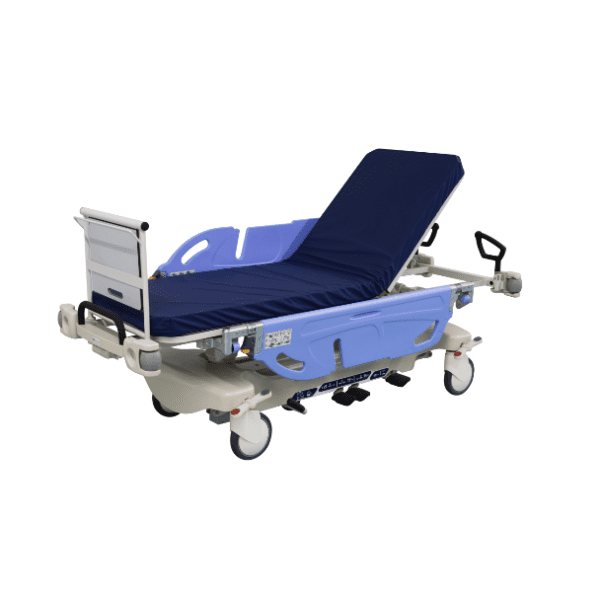

DESCRIPTION
- The stretcher is constructed from high-quality steel with an advanced powder-coated finish, providing excellent durability, corrosion resistance, and long-term performance in demanding medical environments.
- The platform is made of high-pressure compact laminate (HPL) material, offering superior strength, deformation resistance, and reliable support for patient transport.
- Foldable side rails can be positioned horizontally for convenient IV pole access and support loads up to 10 kg. The T-shaped design helps secure tubing and prevents slippage during patient transfer.
- The stretcher is equipped with Ø200 mm central-locking silent casters and four corner control pedals, allowing healthcare professionals to easily engage or release the braking system.
- A fifth central wheel provides enhanced maneuverability and allows seamless switching between directional steering mode and free-movement mode for improved transport control.
- An ergonomic control handle operates a silent gas spring system, enabling smooth and effortless backrest angle adjustment for patient comfort and clinical positioning.
- An integrated lower storage tray is installed beneath the stretcher frame and can accommodate oxygen cylinders or medical supplies, with a load capacity of up to 10 kg.
- The side rails feature an integrated angle indicator for direct observation of the backrest position, while Trendelenburg and reverse Trendelenburg angle indicators are provided on both sides of the stretcher for accurate patient positioning.
- A dual-safety locking mechanism is incorporated into the side rails to prevent accidental operation. Additional IV pole holders, drainage hooks, and accessory mounting points are integrated into both sides of the frame for enhanced clinical functionality.
- The stretcher is fitted with Ø100 mm protective bumper wheels on all four corners to reduce collision damage during transport. An L-shaped folding push handle at the head end and a U-shaped push handle at the foot end feature a comfortable coated grip. The 70 mm thick mattress is made of high-density foam and covered with a waterproof, breathable fabric to maximize patient comfort.
