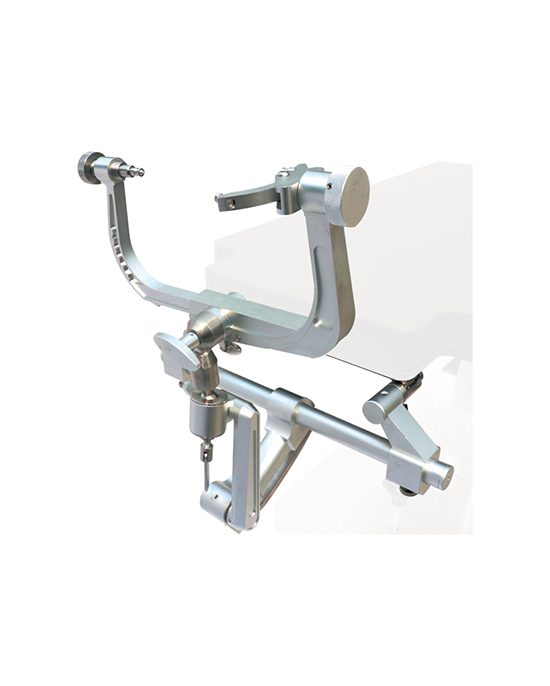

DESCRIPTION
- The headrest components are precision CNC machined from high-grade aluminum-magnesium alloy profiles, with no cast parts, ensuring lightweight yet high-strength construction.
- Stainless steel load-bearing components are integrated into the system, providing durability and robust structural integrity.
- The base allows lateral headrest movement up to 450 mm, accommodating a wide range of patient head positions.
- Width adjustment is achieved via a connecting rod, allowing a range of 80–555 mm to fit different patient anatomies.
- The universal ball joint enables 360° horizontal rotation and 90° vertical tilt, constructed from 304 stainless steel for corrosion resistance and strength.
- A clamping ring lock engages with a planar gear mechanism, offering secure and reliable fixation during surgical procedures.
- The ergonomic locking handles are designed to operate without obstruction, allowing the headrest to be firmly locked at any angle.
- The head clamp features a three-point fixation system, providing stable and secure cranial support during surgery.
- The head clamp’s vertical working depth is 130 mm, and lateral working width is adjustable from 70–230 mm, offering precise positioning flexibility.
- Dual pressure indicators display up to 360 N (80 lbs) of applied cranial force, enabling accurate pressure monitoring to minimize trauma and ensure patient safety.
