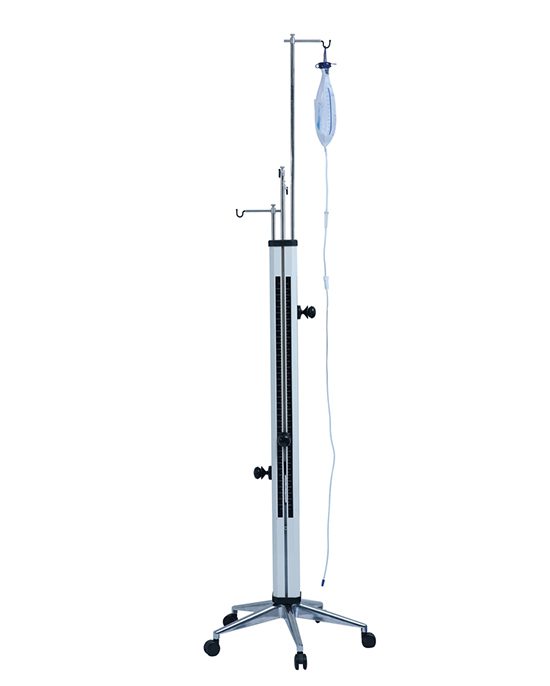

DESCRIPTION
- The main structure is manufactured from medical-grade aluminum-magnesium alloy and 304 stainless steel, providing excellent strength, durability, and corrosion resistance for clinical environments.
- The aluminum-magnesium alloy components feature an anodized surface treatment, ensuring a lightweight structure while facilitating easy cleaning and disinfection.
- The lifting column is constructed from high-quality No. 45 steel linear shaft material and is equipped with all-metal upper and lower covers for enhanced durability and stability.
- The IV pole features a dual-hook symmetrical design made of stainless steel, allowing secure suspension of infusion bags and fluid containers.
- The hooks support horizontal extension adjustment up to 30 mm and provide a height adjustment range of 1550–2250 mm with a total lifting travel of 700 mm (±20 mm tolerance).
- The lifting mechanism is capable of smoothly raising and lowering loads up to 10,000 cc (10 kg), ensuring reliable performance during clinical use.
- The five-star base, measuring 300 ± 5 mm in diameter, is made of high-strength aluminum-magnesium alloy to provide excellent stability and durability.
- An integrated counterweight system, combined with a large-diameter five-star base and medical-grade silent swivel casters, enhances load-bearing capacity while preventing tipping and ensuring smooth mobility.
- The all-metal ergonomic release button is designed for long-term durability without deformation, fading, or cracking, allowing the pole to lock securely at the desired height without requiring additional counterbalance devices.
- The IV pole utilizes a purely mechanical assisted lifting system that requires no electrical power. Clear centimeter and inch scale markings enable precise height adjustment, while the design allows easy cleaning, disinfection, maintenance, and routine servicing.
