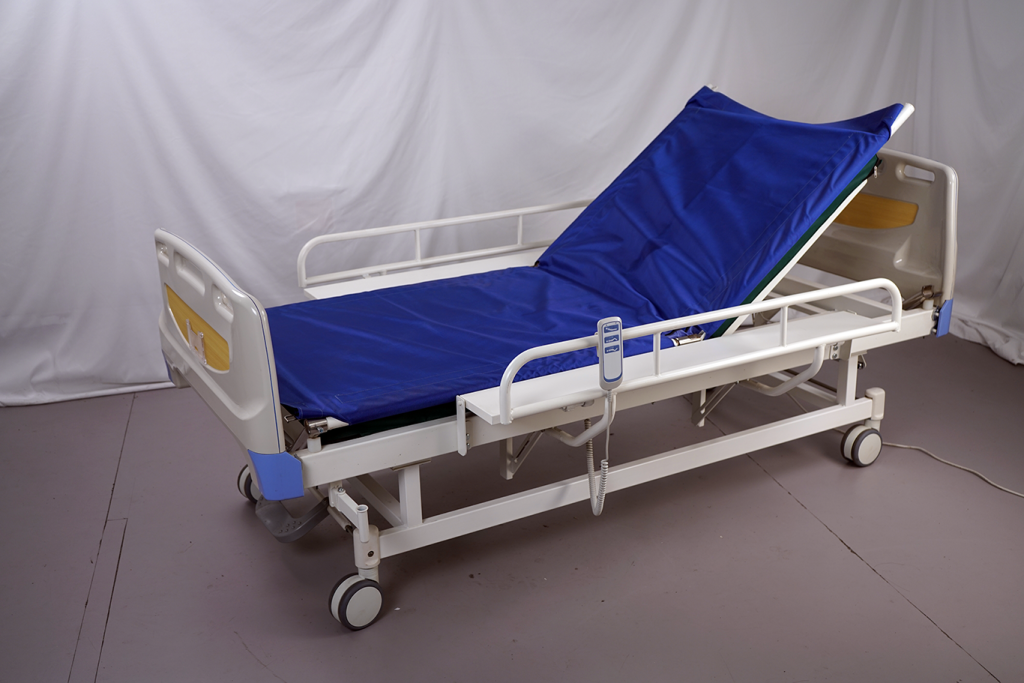

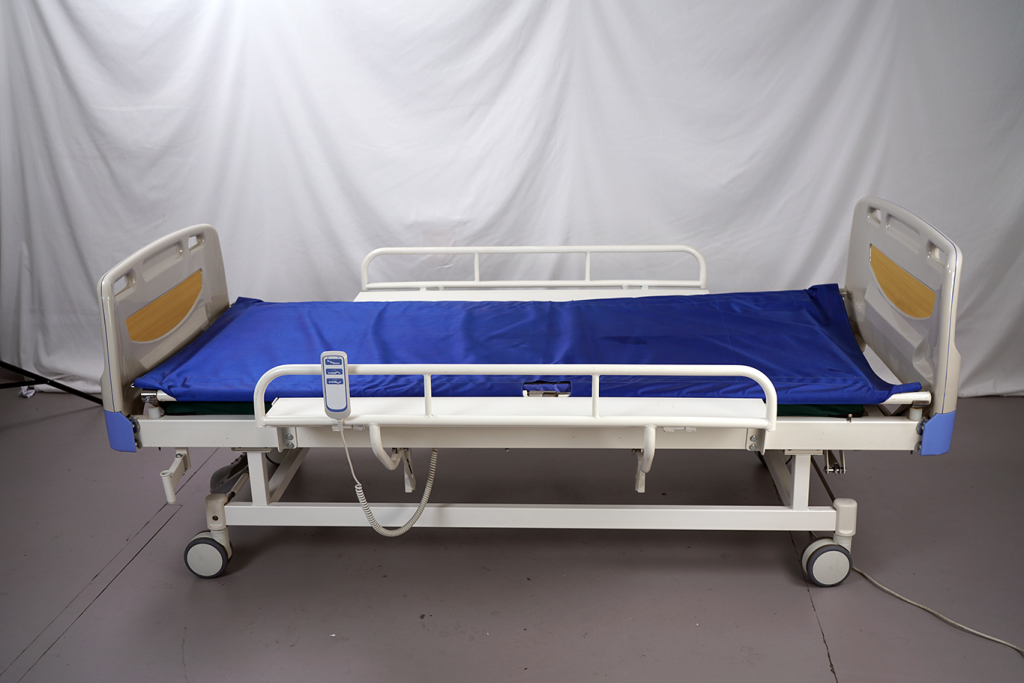

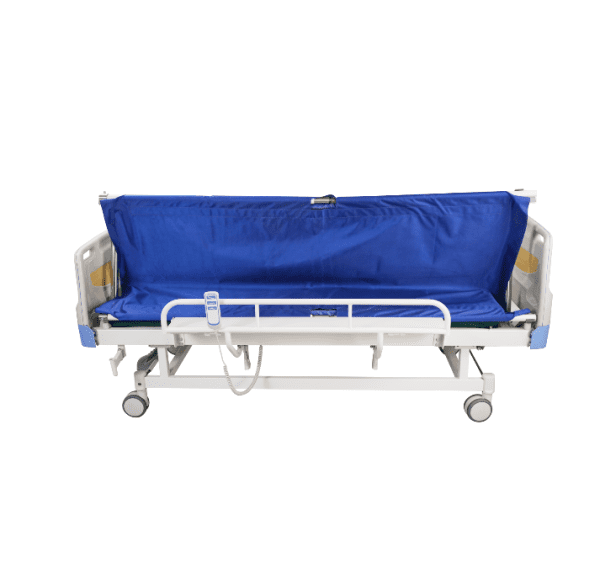

Electric Lateral Rotation Hospital Bed DHC-II (FS01)

● Electric left/right turning function for ICU and long-term care patients.

● 24V ultra-quiet motor system with handheld controller operation.

● ABS head/foot boards with foldable side rails and central braking system.

DESCRIPTION

● Dimensions: 2250 × 1340 × 500 mm.
● The electric turning bed is specially designed to assist disabled and long-term bedridden patients with automatic lateral repositioning to improve comfort and microcirculation.

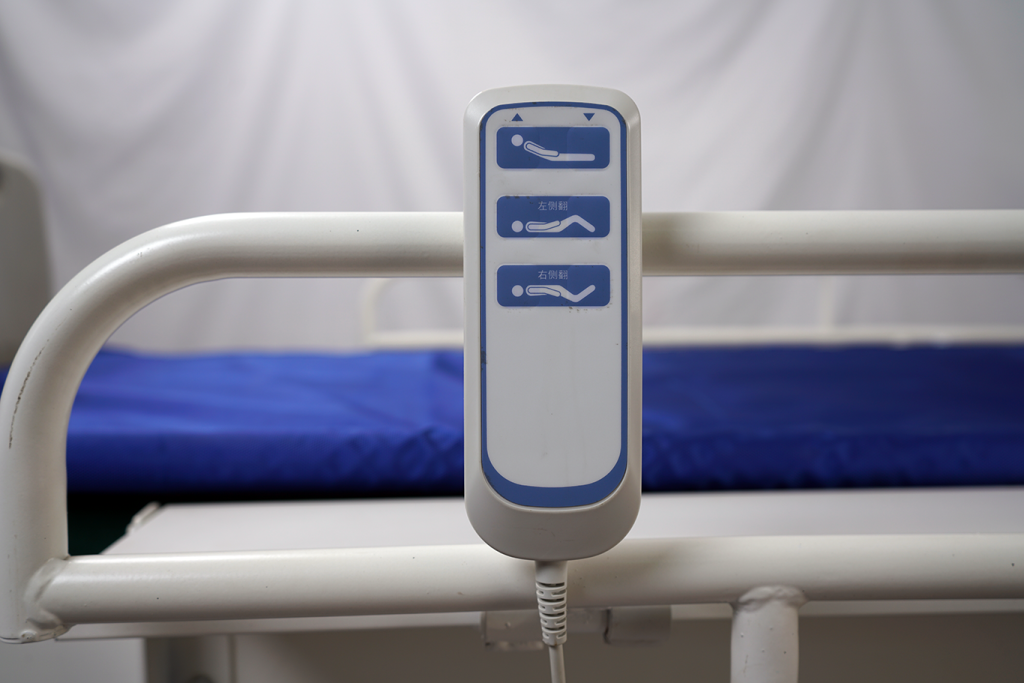

● Equipped with a handheld controller, allowing smooth left and right turning adjustment through dual-motor drive system operation.

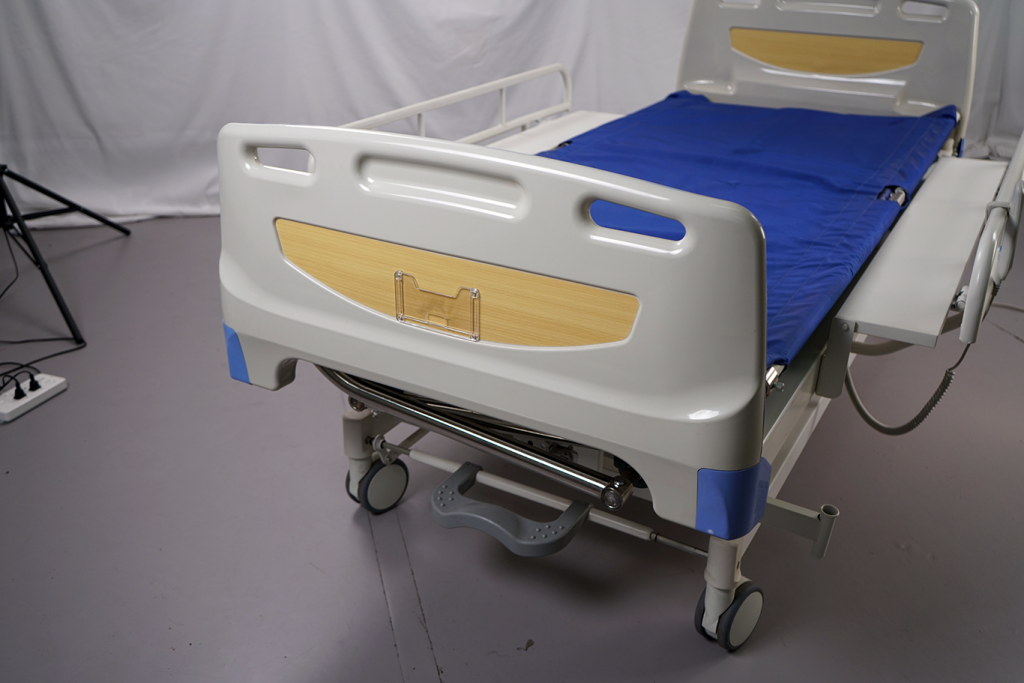

● Features one-piece molded ABS headboard and footboard for durability and easy cleaning.
● Powered by a 24V DC motor system with ultra-low noise performance, waterproof and dustproof design.

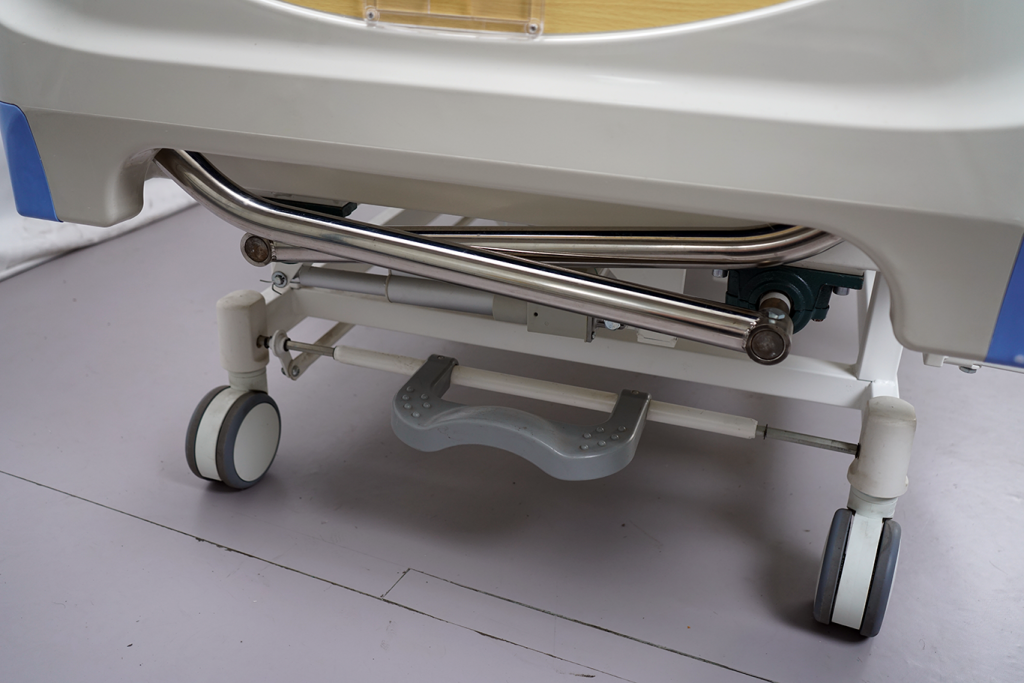

● Hidden central braking caster system provides stable positioning and convenient mobility.

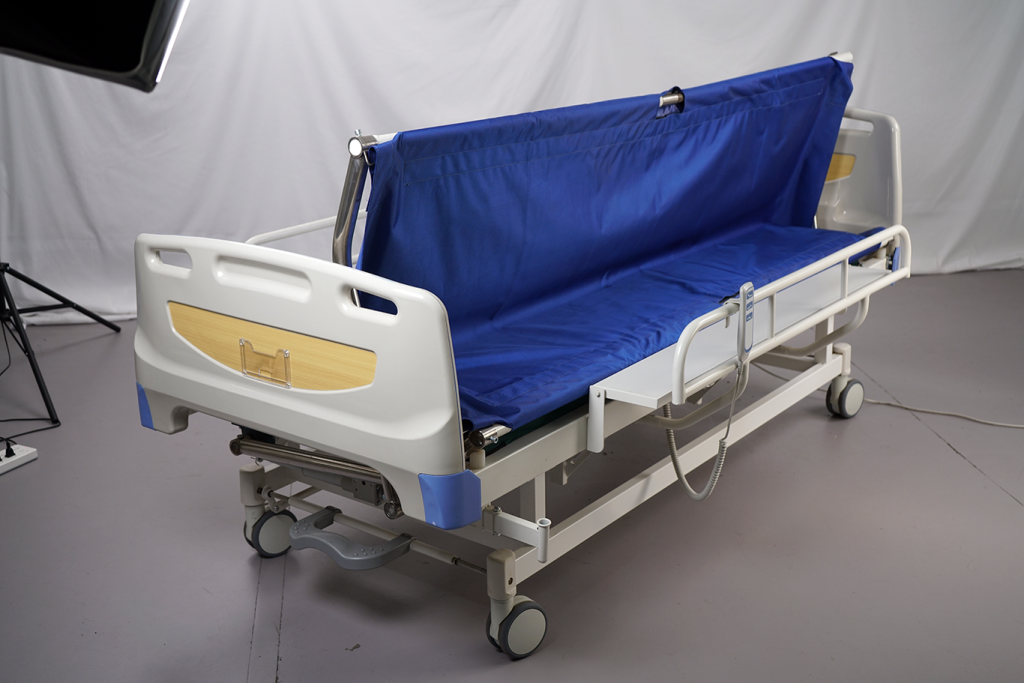

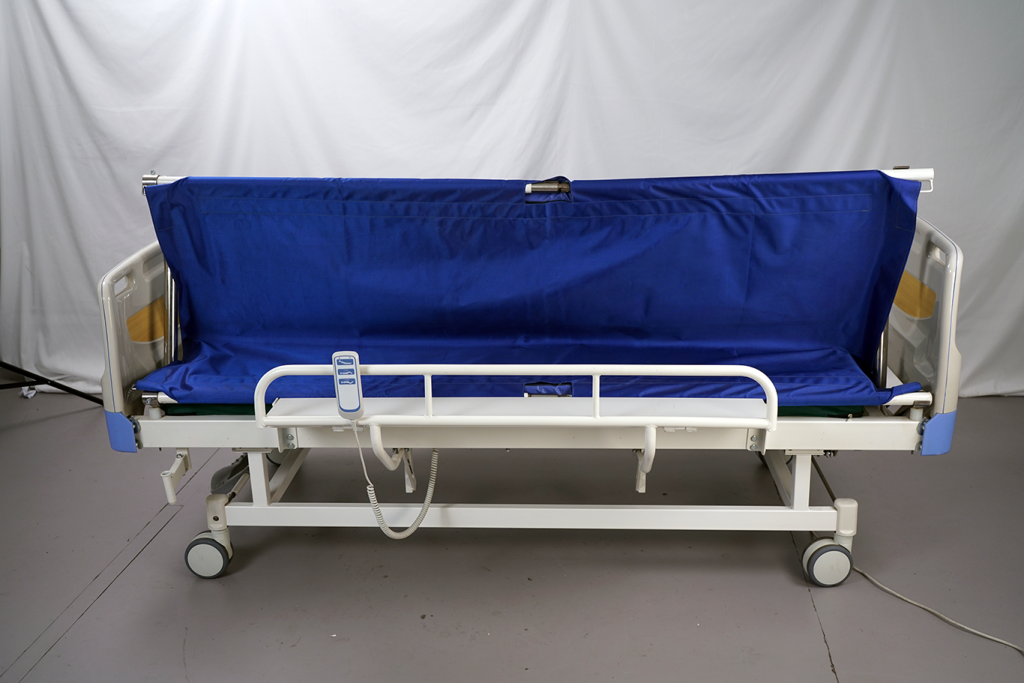

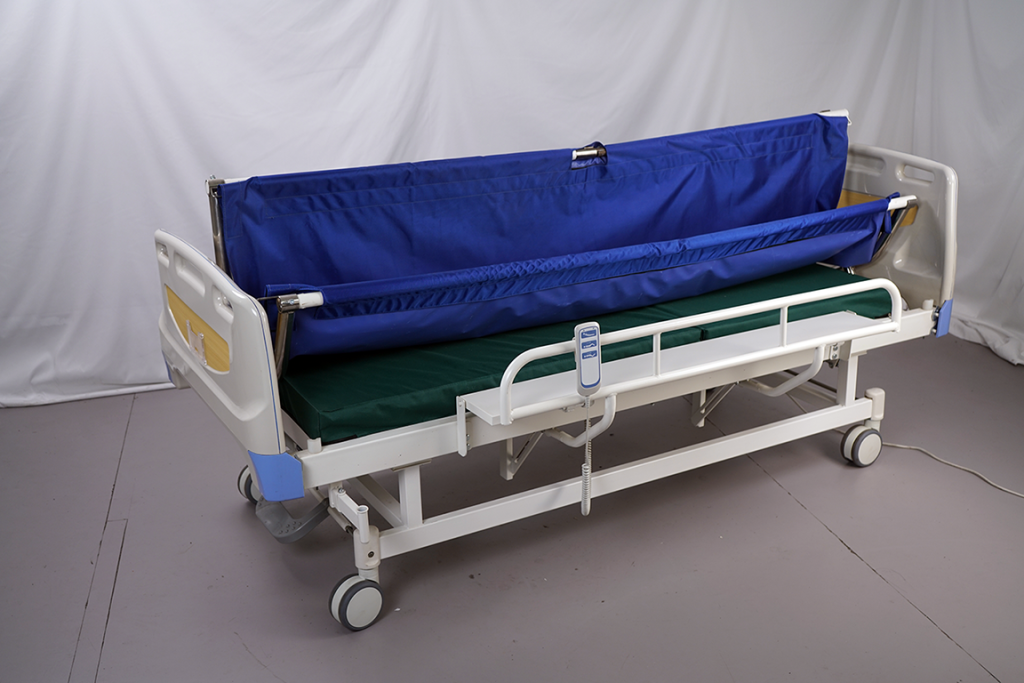

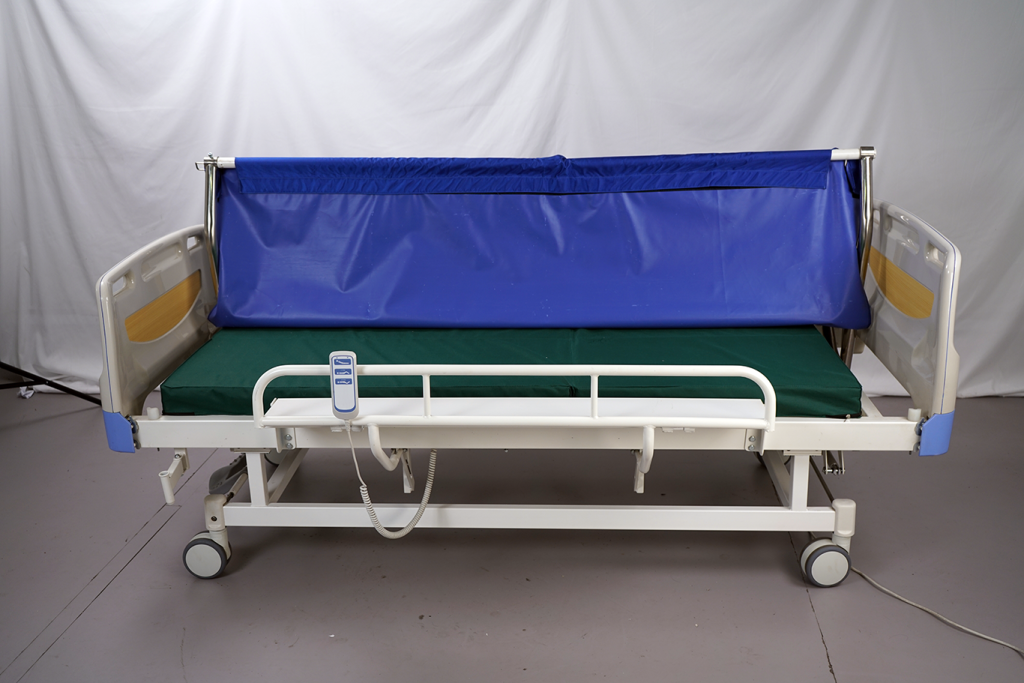

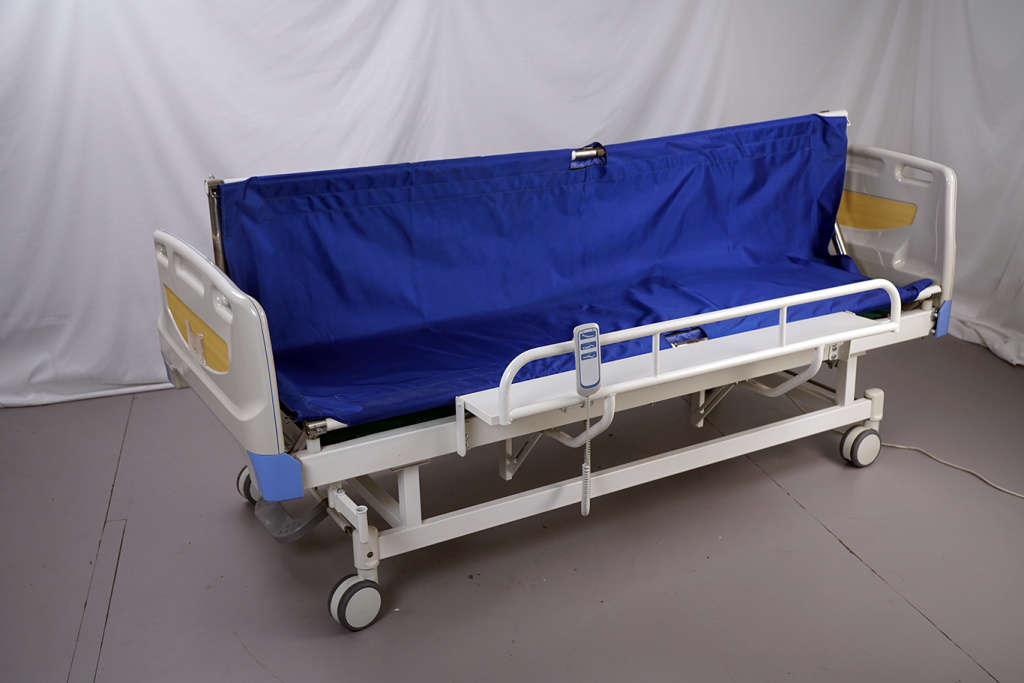

● The bed supports flexible left and right turning functions, making it suitable for ICU and burn care patients.

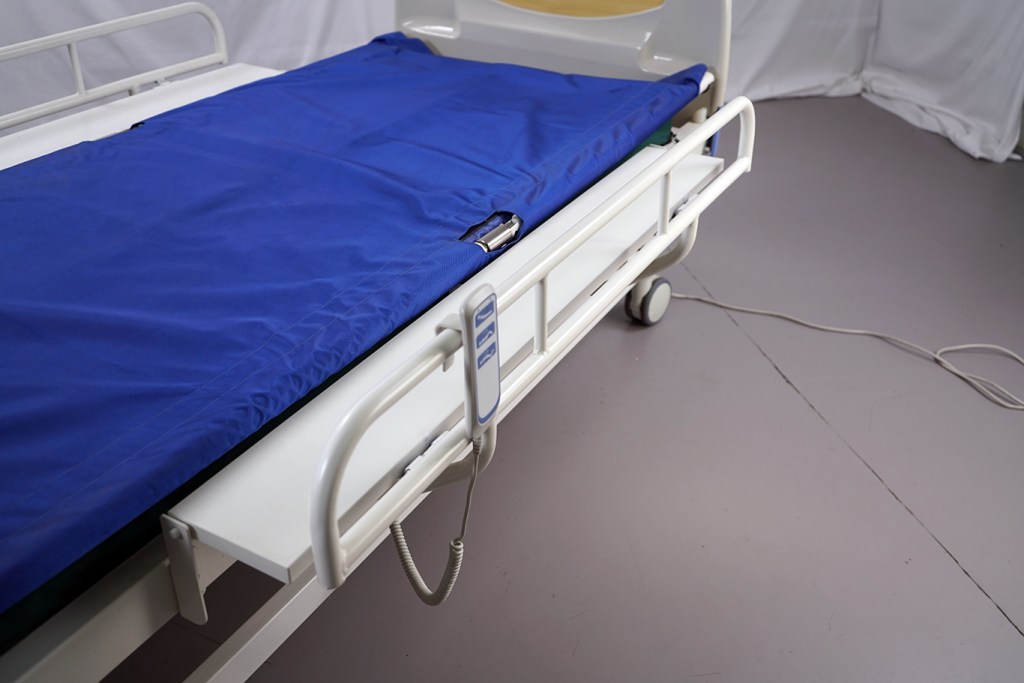

● Equipped with foldable powder-coated steel side rails for enhanced patient safety and caregiver convenience.

PARAMETER

Parameter Specification

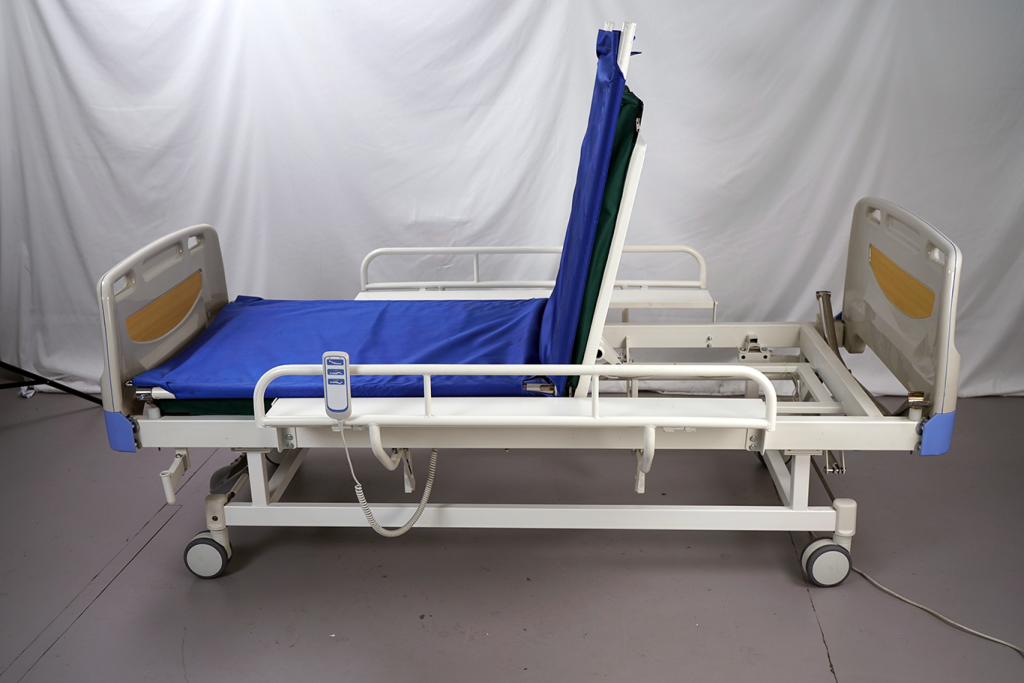

Back Section Adjustment 75° ±3°
Left Lateral Turning Angle 80° ±3°
Right Lateral Turning Angle 80° ±3°
Overall Width 1340 ±20 mm
Overall Length 2250 ±20 mm
Platform Height (excluding mattress) 500 ±20 mm

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
