DESCRIPTION

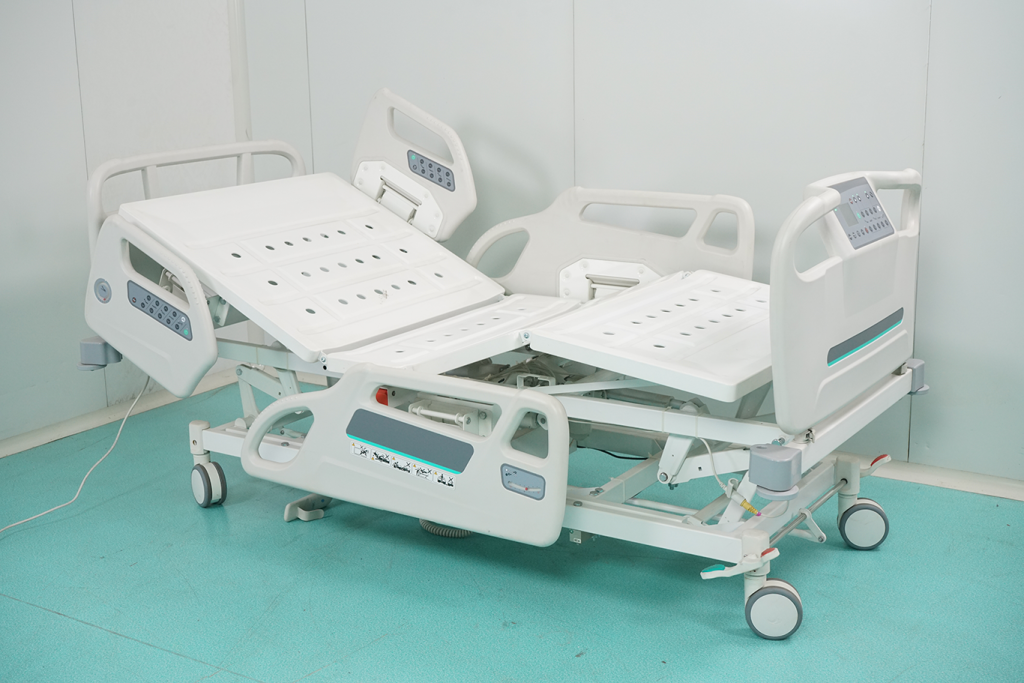

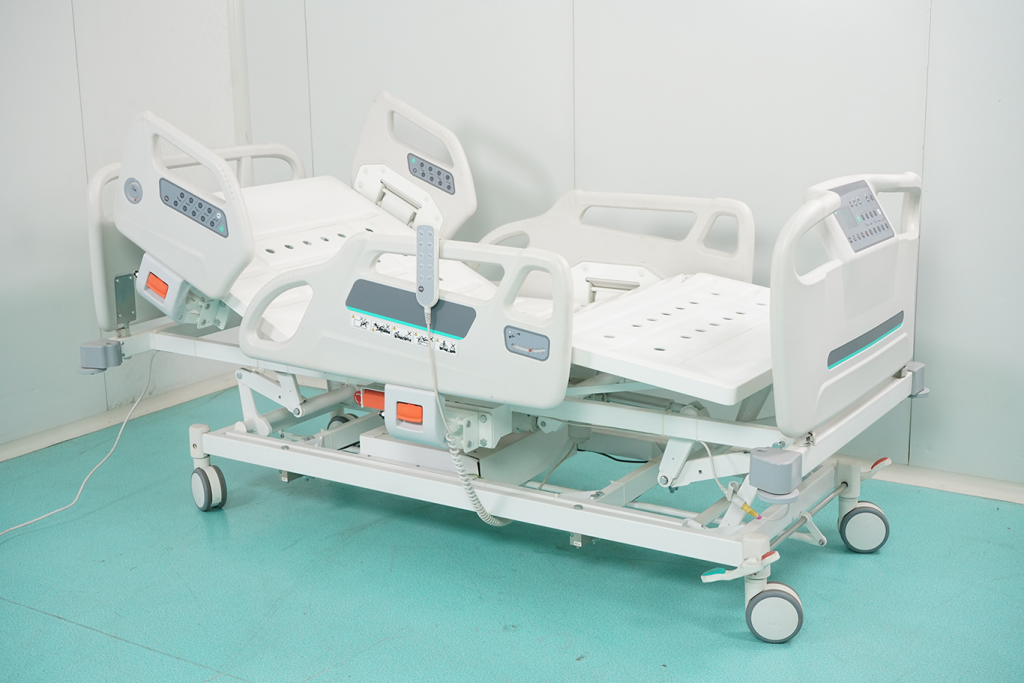

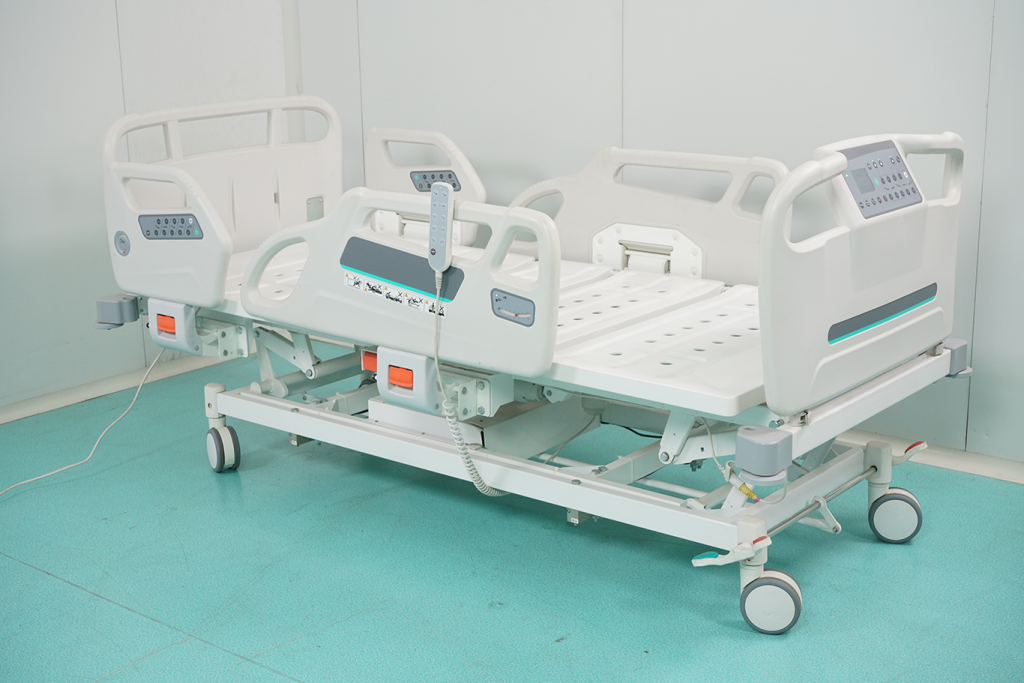

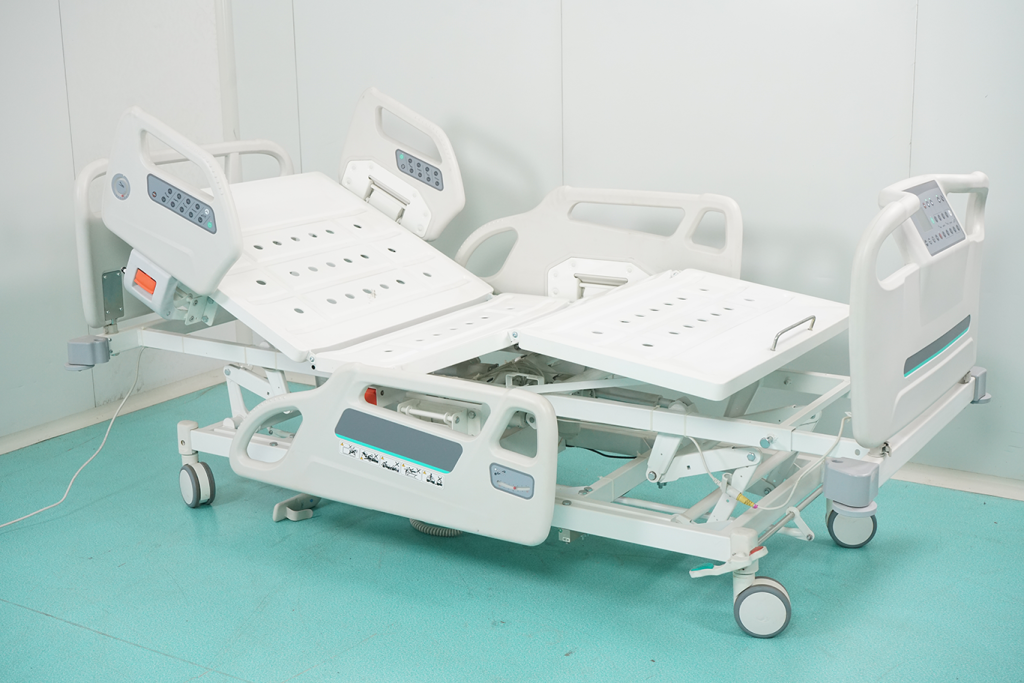

● The bed frame is constructed from 60×30×1.5 mm formed steel tubing with advanced welding technology, ensuring high structural strength and a safe working load of ≥240 kg.
● The bed platform is made of 1.2 mm cold-rolled steel sheet with stamped concave shaping and multiple ventilation holes for improved breathability and anti-slip performance.
● The bed surface is finished with antibacterial electrostatic powder coating, providing environmental protection, corrosion resistance, and antibacterial performance.

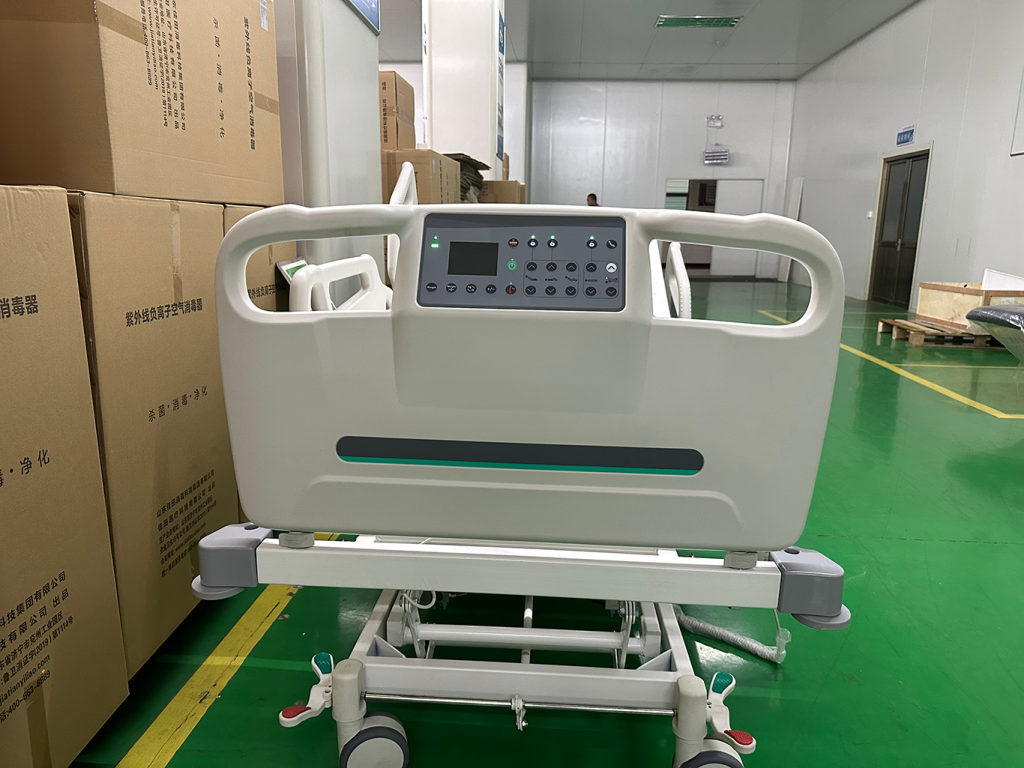

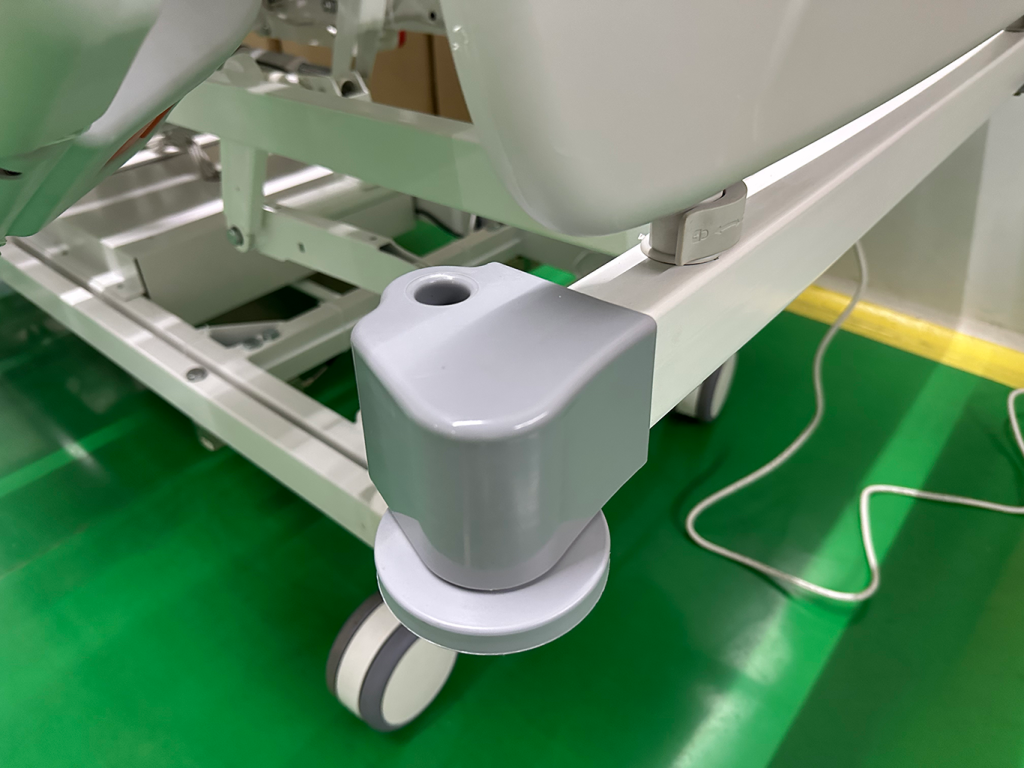

● The ABS headboard and footboard are one-piece injection molded with detachable plug-in design for easy removal and cleaning, equipped with replaceable corner bumpers for wall protection.
● Features four-section ABS side rails with built-in damping devices for smooth, quiet operation, offering durability, safety, and convenient handling.

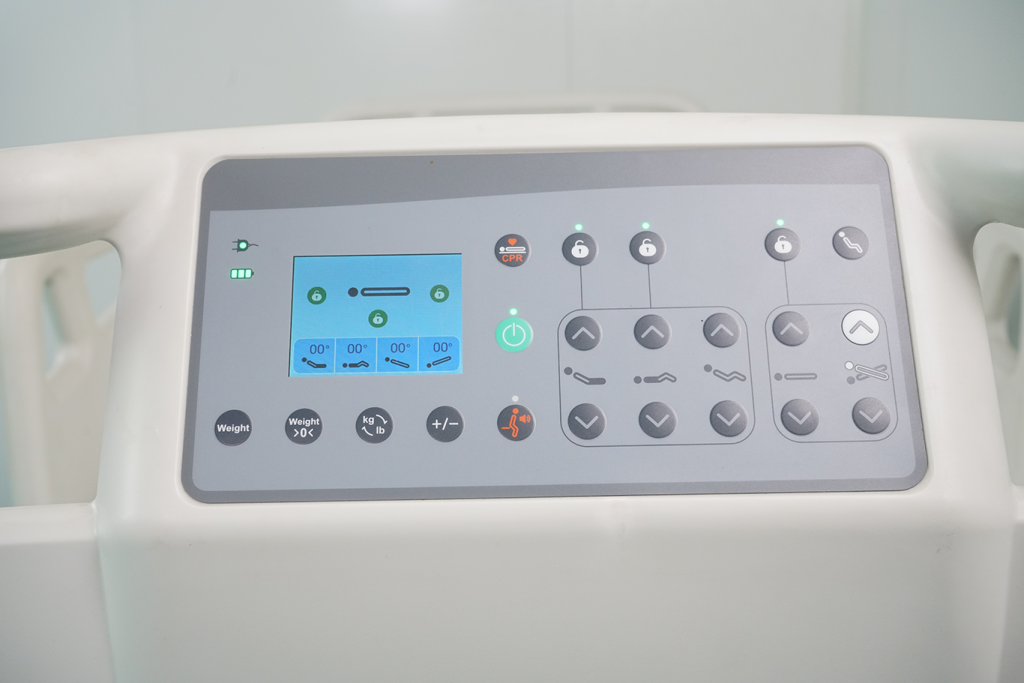

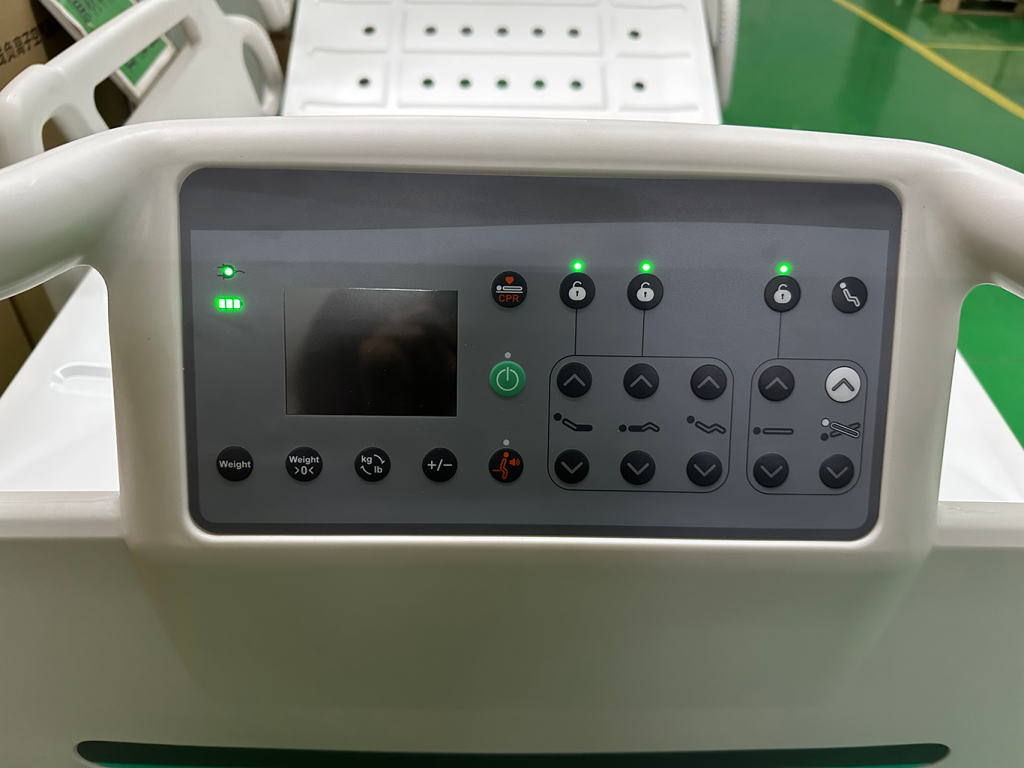

● Integrated control panels on both the inner and outer sides of the backrest rails allow separate operation by caregivers and patients for backrest, leg section, and height adjustments.

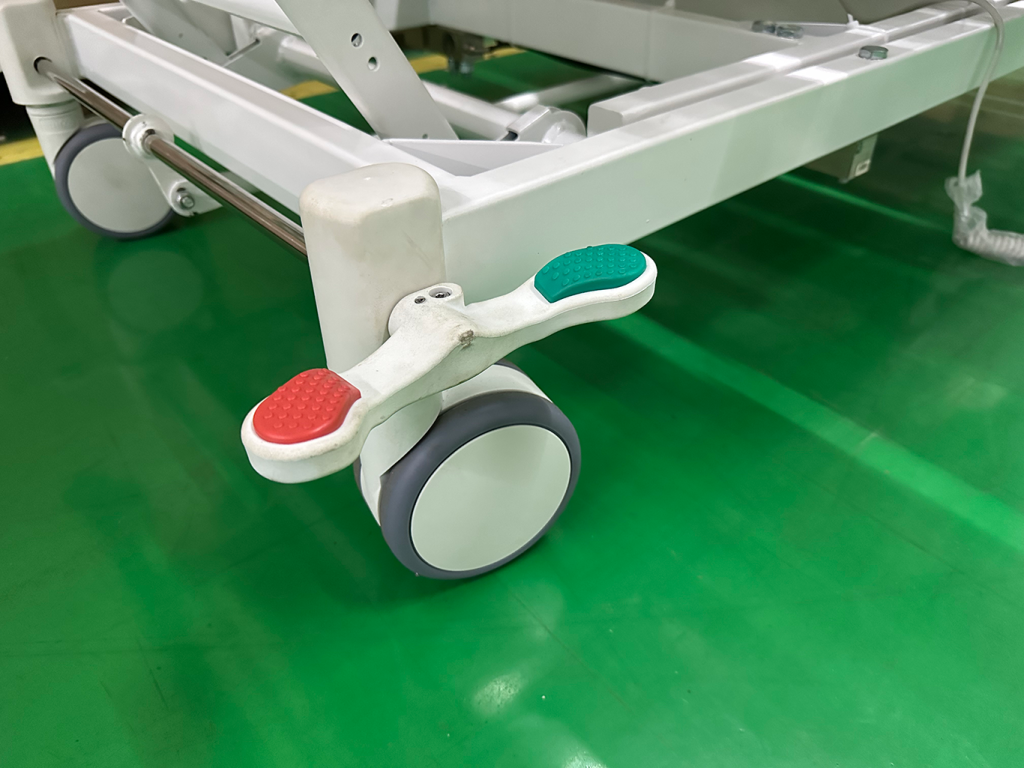

● Equipped with dual-sided central locking casters (Ø125 mm) with lock, directional, and free-movement modes, providing quiet operation, strong braking force, and high stability.
● Manual CPR quick-release levers on both sides enable rapid emergency positioning, with integrated drainage hooks for clinical convenience.

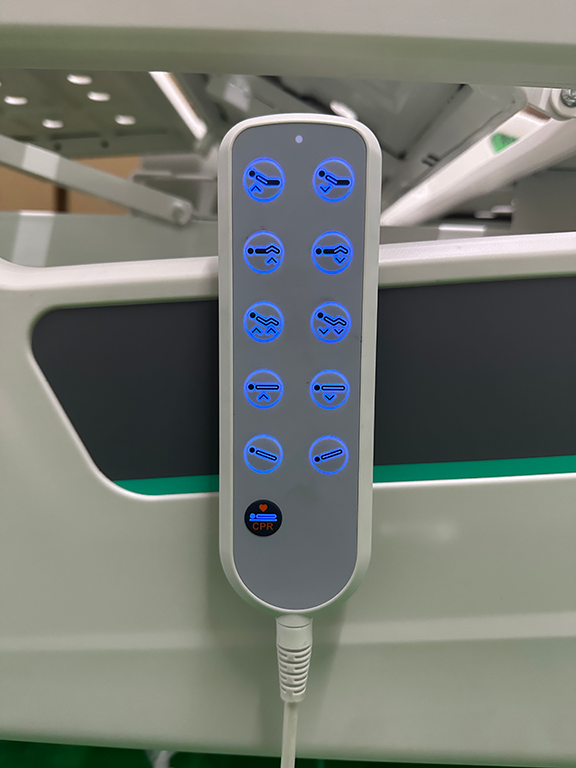

● Powered by medical-grade ultra-quiet DC motors, supporting one-touch cardiac chair position, one-touch CPR position, and examination position functions.

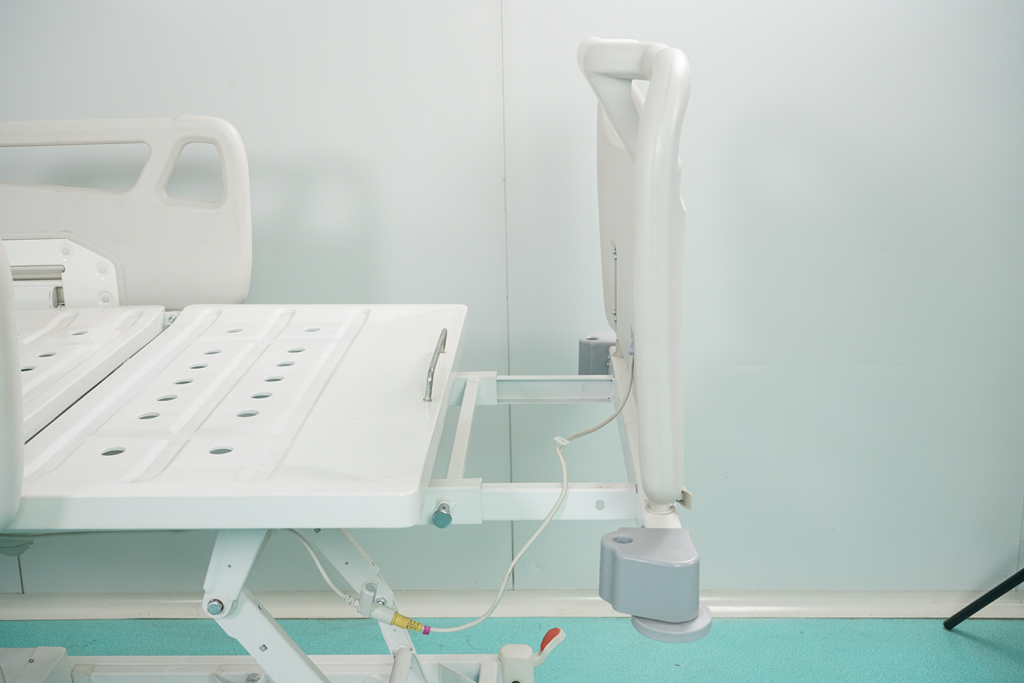

● Includes an extendable bed frame up to 2350 mm with adjustable two-section calf rest for enhanced lower limb comfort.
● Four IV pole sockets and drainage hook positions are provided, with optional IV pole configuration available.
● Integrated high-precision weighing system with accuracy of ≤100 g, enabling real-time patient weight monitoring and bed-exit alarm function regardless of patient position.
