DESCRIPTION

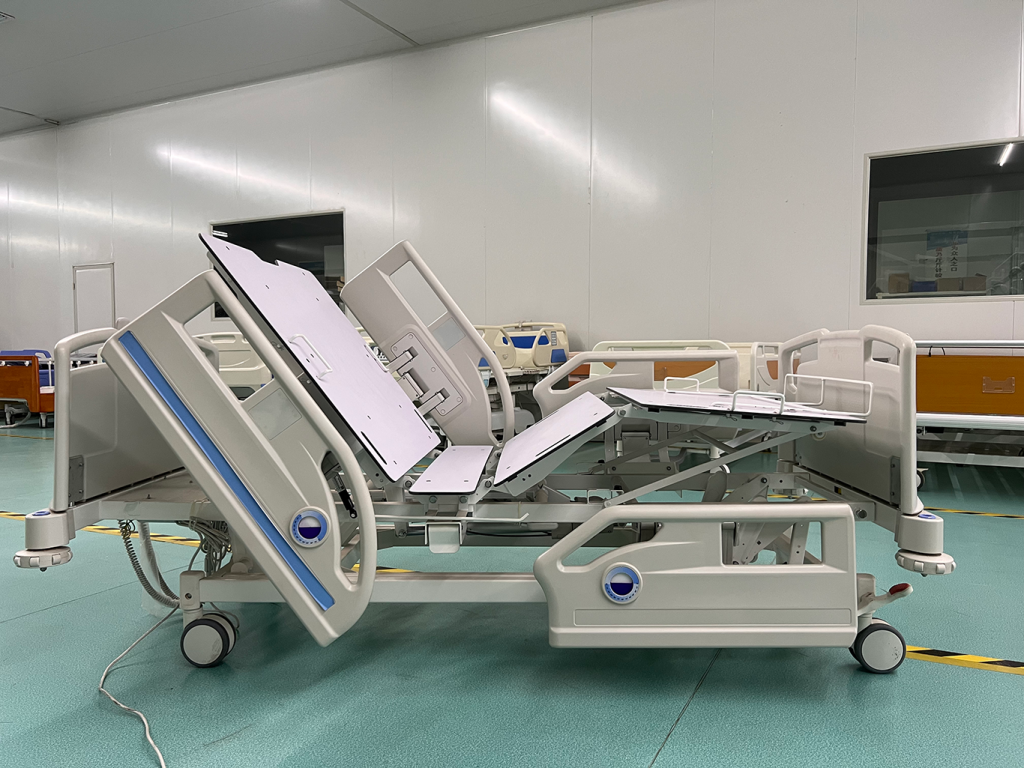

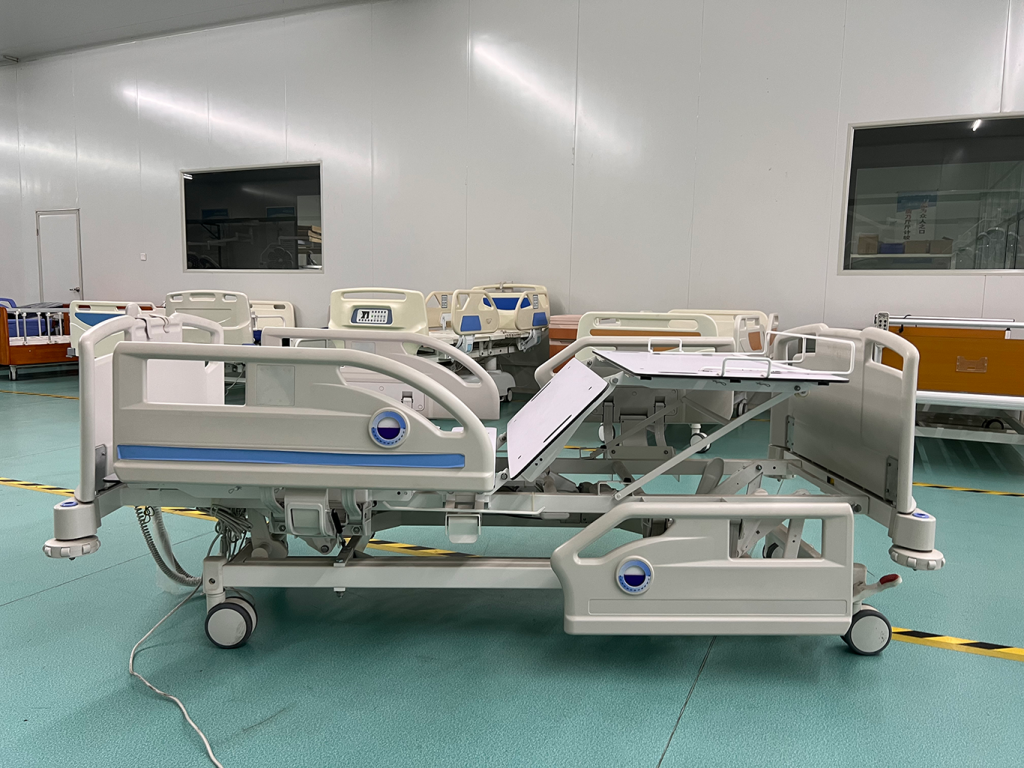

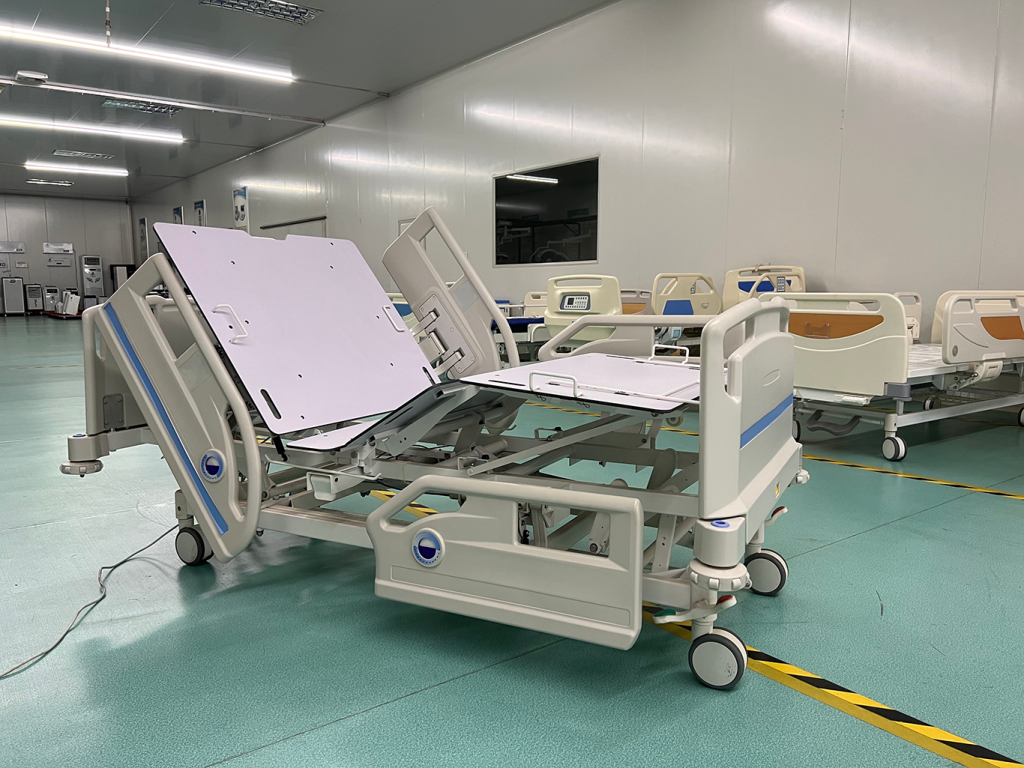

● Backrest adjustment ≥70°, leg section adjustment ≥40°, and Trendelenburg / Reverse Trendelenburg tilt ≥12° for versatile patient positioning.
● Equipped with European-style four-section folding side rails and premium central locking casters with lock, directional, and free-movement modes for enhanced mobility and safety.
● Manual CPR quick-release function on both sides enables rapid emergency positioning for critical care situations.
● Radiolucent HPL bed platform allows full-body X-ray imaging, with integrated cassette holder for upper-body radiography without patient transfer.
● Bed frame constructed from high-quality cold-drawn rectangular steel tubing (60×30×1.5 mm) with a safe working load capacity of 240 kg.
● Surface finished with eco-friendly antibacterial electrostatic powder coating, providing excellent corrosion resistance, anti-rust protection, and easy cleaning.
● Headboard and footboard made of imported medical-grade PE resin, blow-molded in one piece, impact-resistant, easy to disinfect, and designed with replaceable corner bumpers for wall protection.

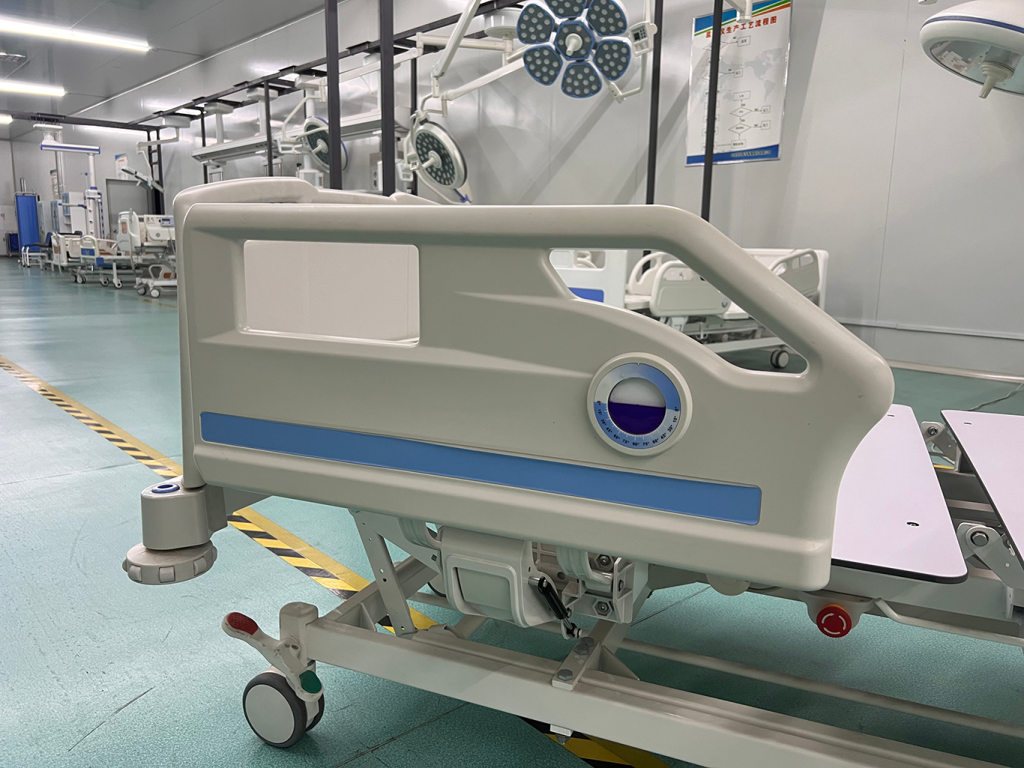

● PE molded side rails with built-in damping system ensure smooth, quiet operation and comply with IEC safety standards.

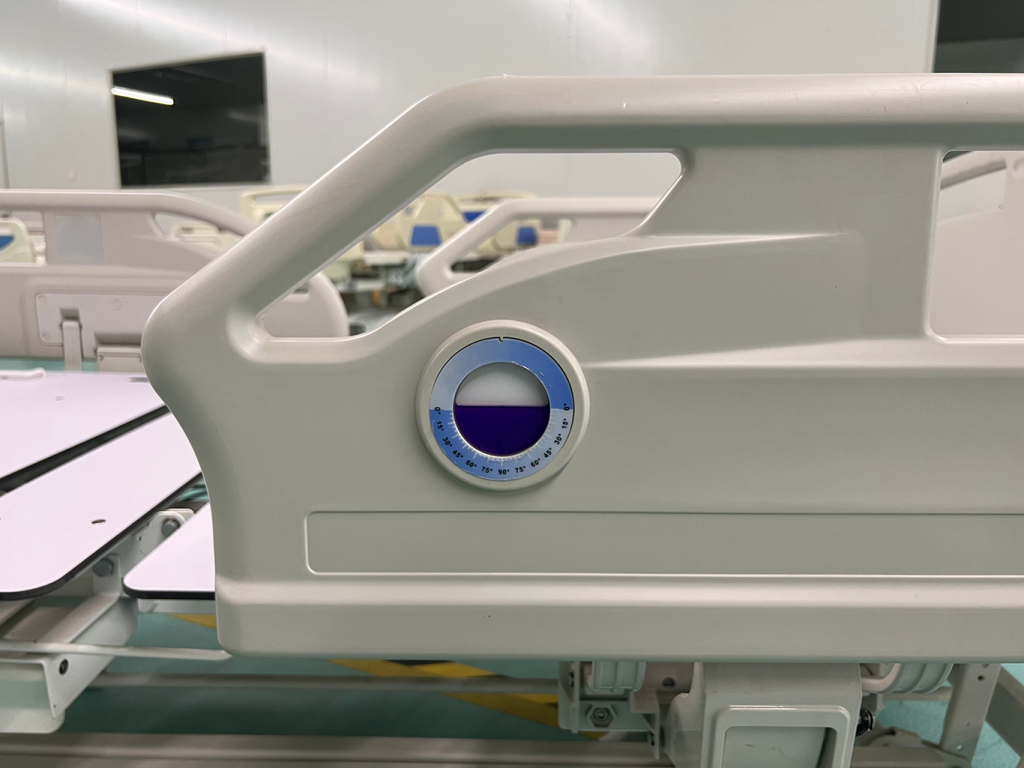

● Integrated angle indicators on side rails clearly display backrest elevation and bed tilt angles, including a 30° reference mark for clinical positioning support.
● Features an extendable bed frame up to 2350 mm, adjustable two-section calf rest, anti-slip mattress retainers, restraint belt fixing points, and drainage hooks for improved patient care convenience.
