DESCRIPTION

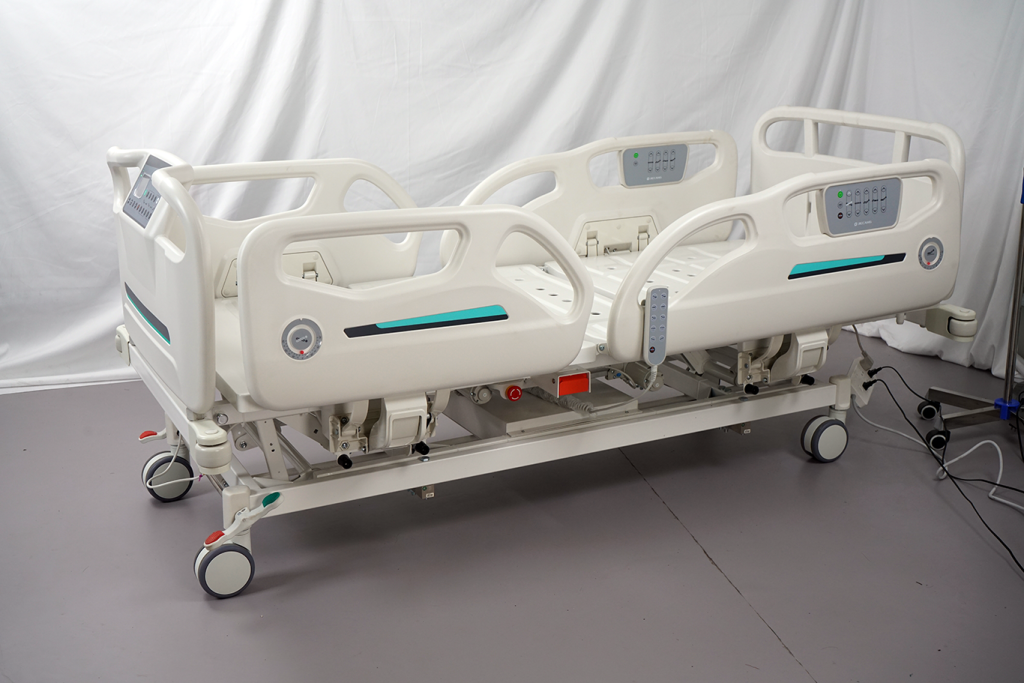

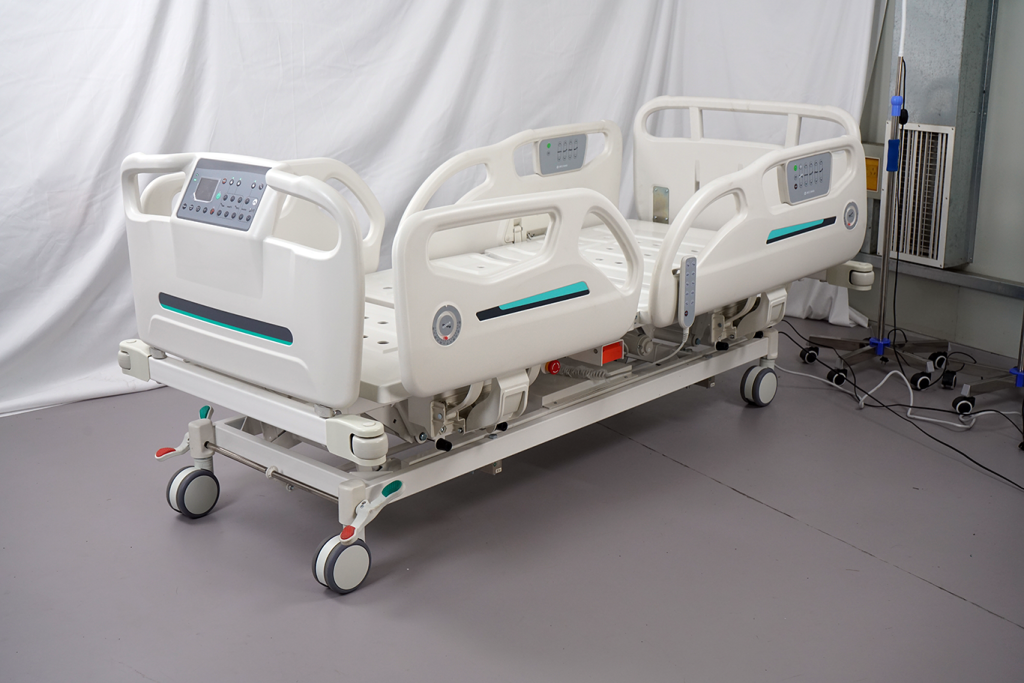

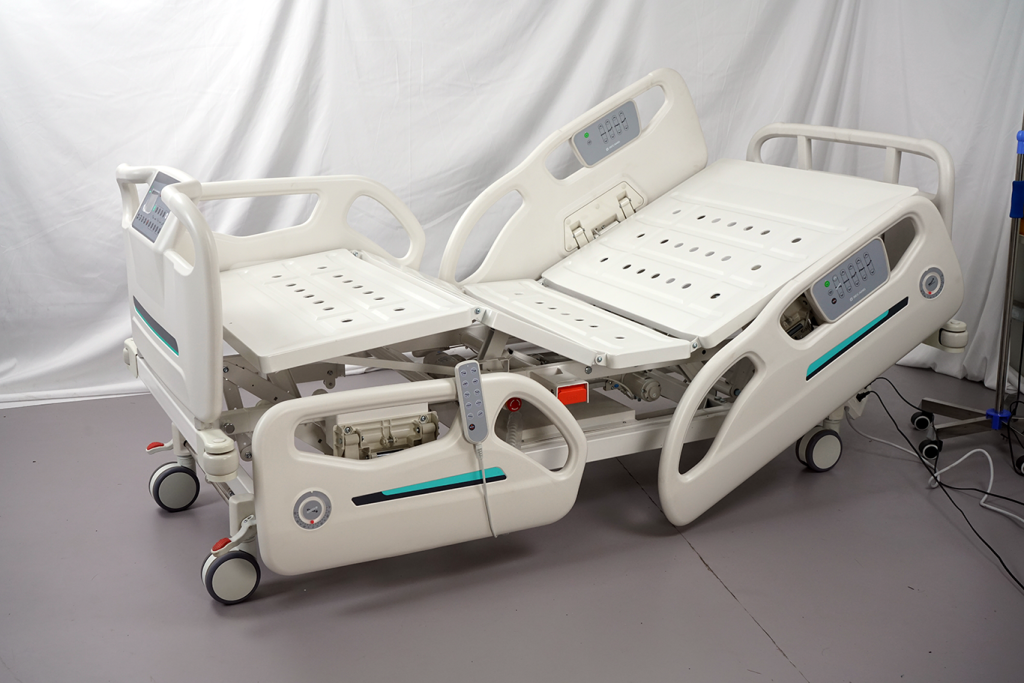

● The bed frame is constructed from 60×30×1.5 mm formed steel tubing with advanced welding technology, ensuring excellent durability and a safe working load of ≥240 kg.
● The mattress platform is made of 1.2 mm cold-rolled steel sheet with stamped concave shaping and multi-ventilation hole design for improved breathability and anti-slip performance.
● The bed surface is finished with antibacterial electrostatic powder coating, providing corrosion resistance, environmental protection, and antibacterial performance.

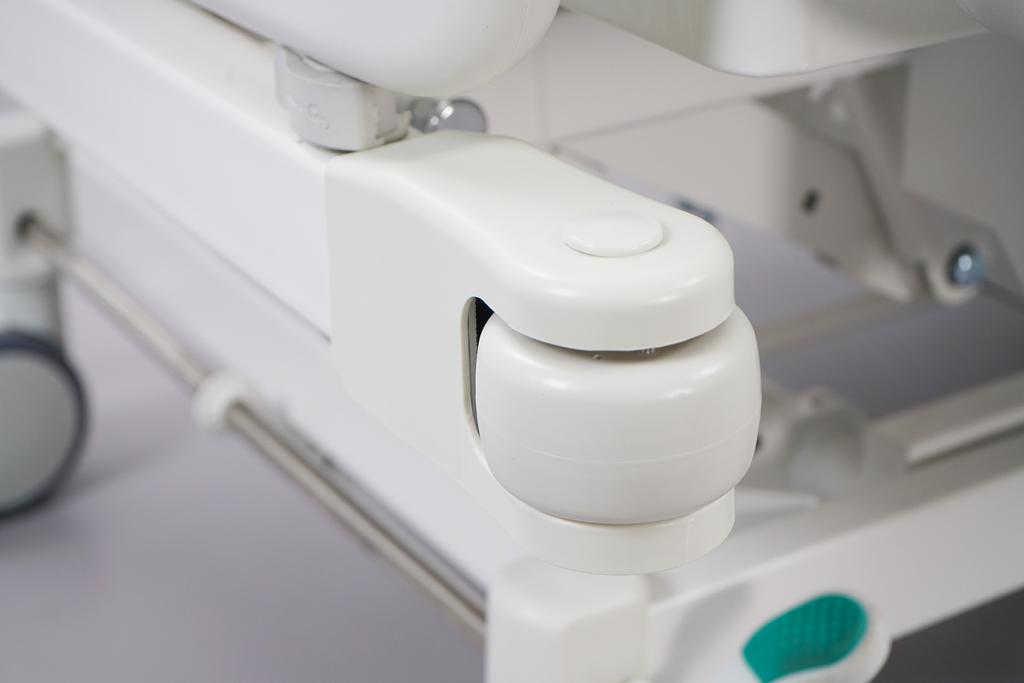

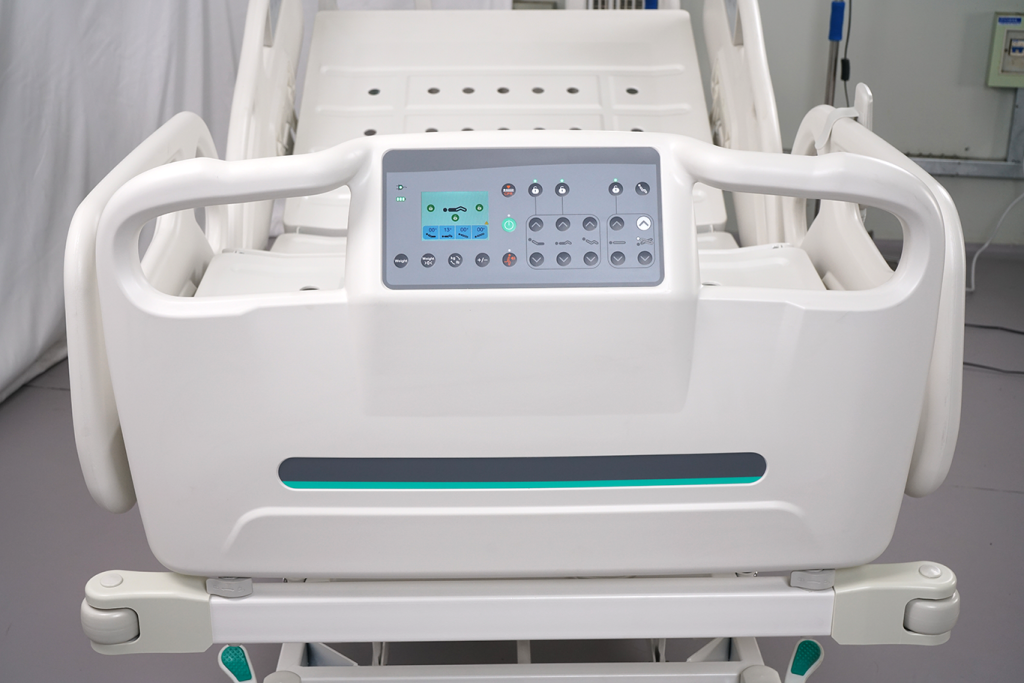

● The ABS headboard and footboard are one-piece injection molded with detachable plug-in design, featuring replaceable corner bumpers for effective wall protection during movement.
● Equipped with four-section ABS side rails with built-in damping devices for smooth, quiet operation, ensuring safety, durability, and convenient handling.

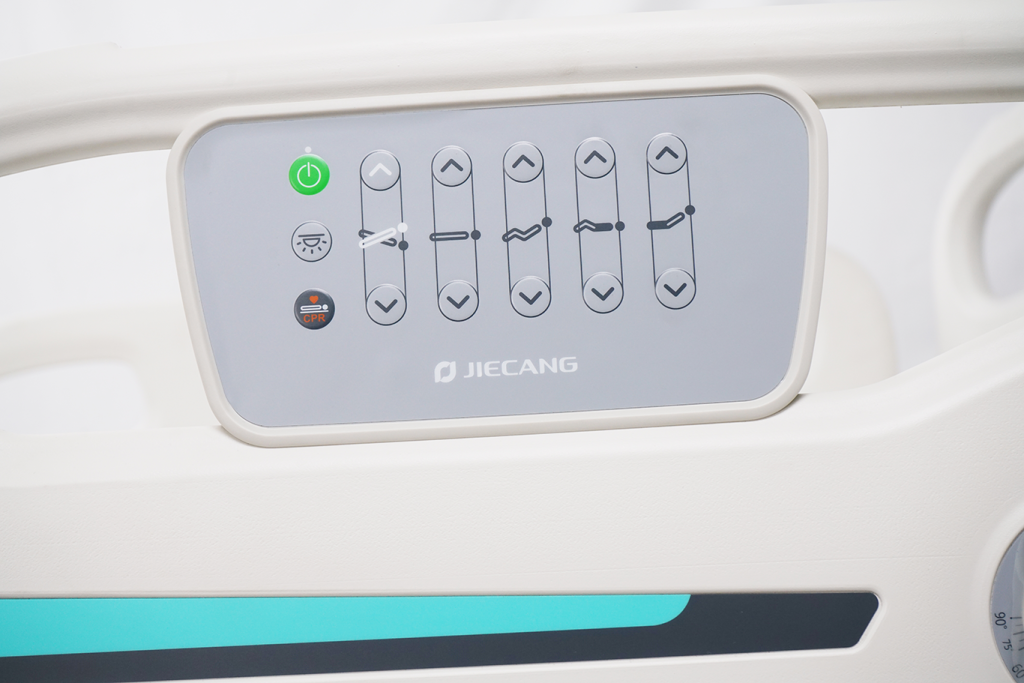

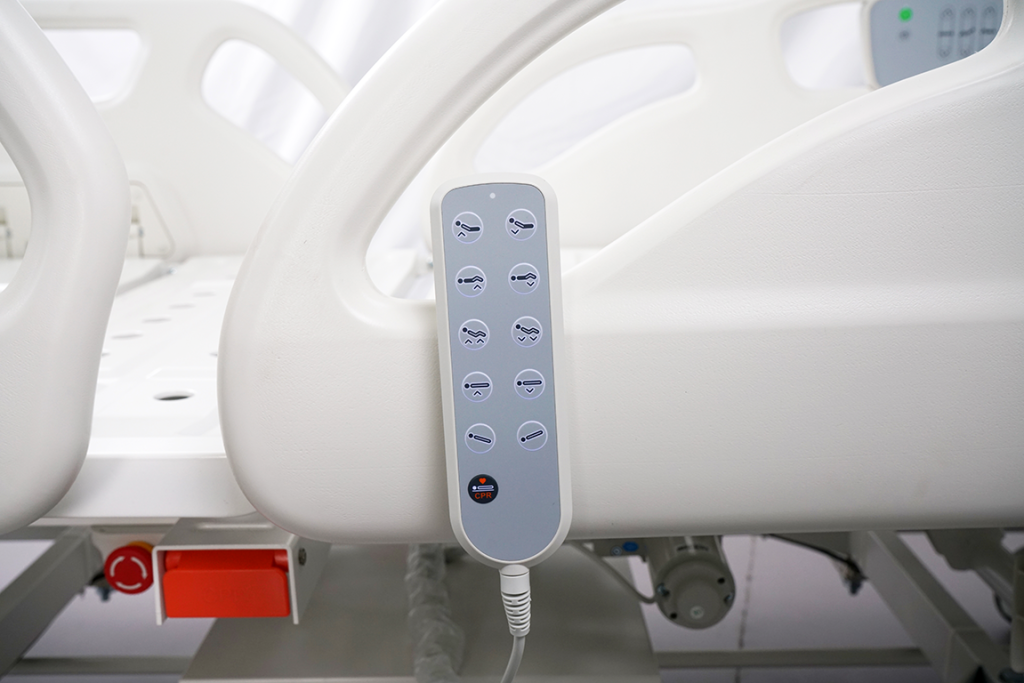

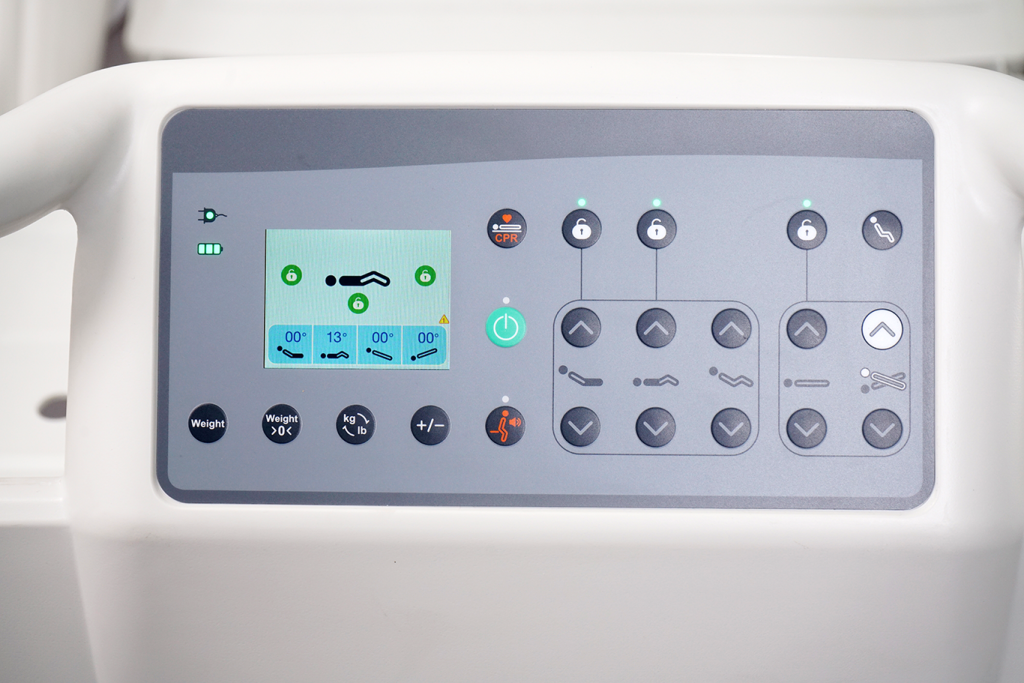

● Integrated control panels on both inner and outer sides of the backrest rails allow separate operation by caregivers and patients for height, backrest, and leg section adjustments.

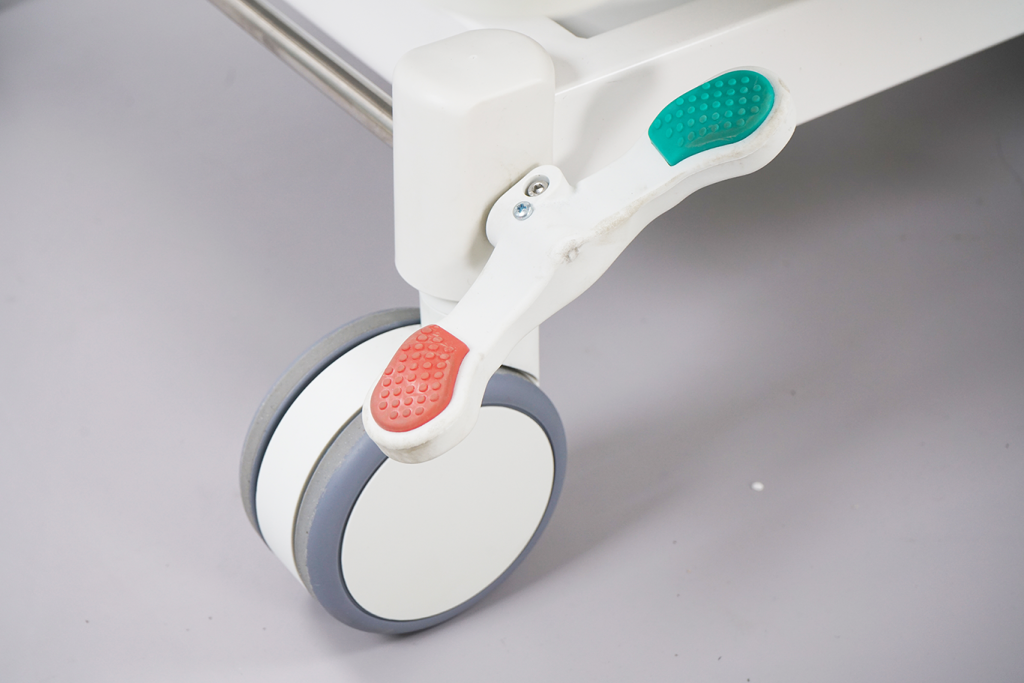

● Features dual-sided central locking casters (Ø125 mm) with lock, directional, and free-movement modes, offering silent movement, strong braking force, and high stability.

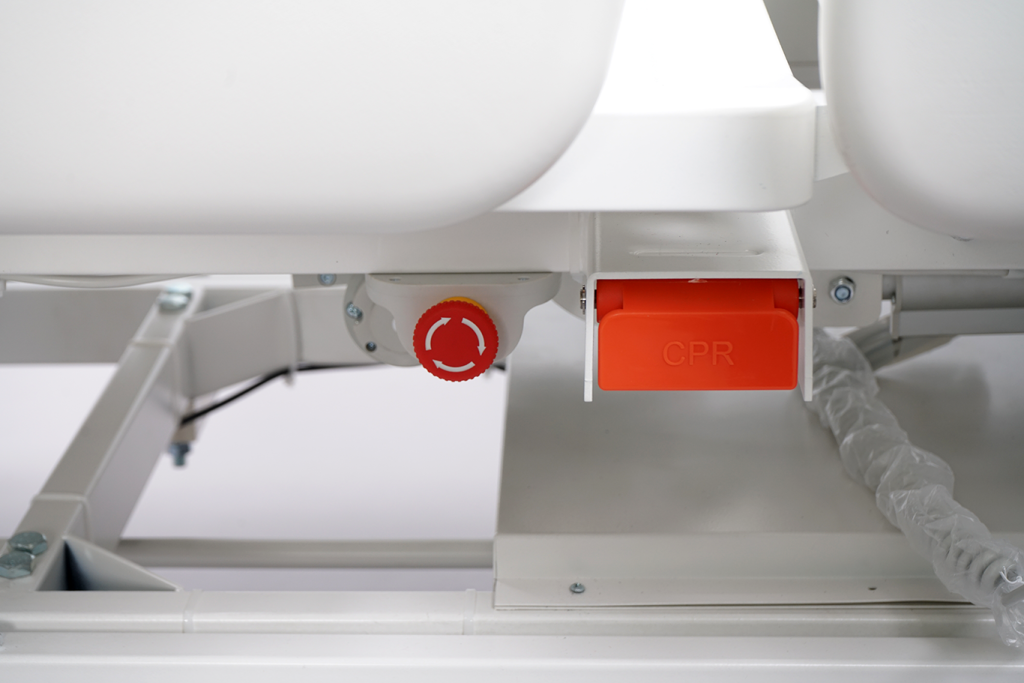

● Manual CPR quick-release levers on both sides allow rapid emergency positioning, while drainage hooks provide additional clinical convenience.

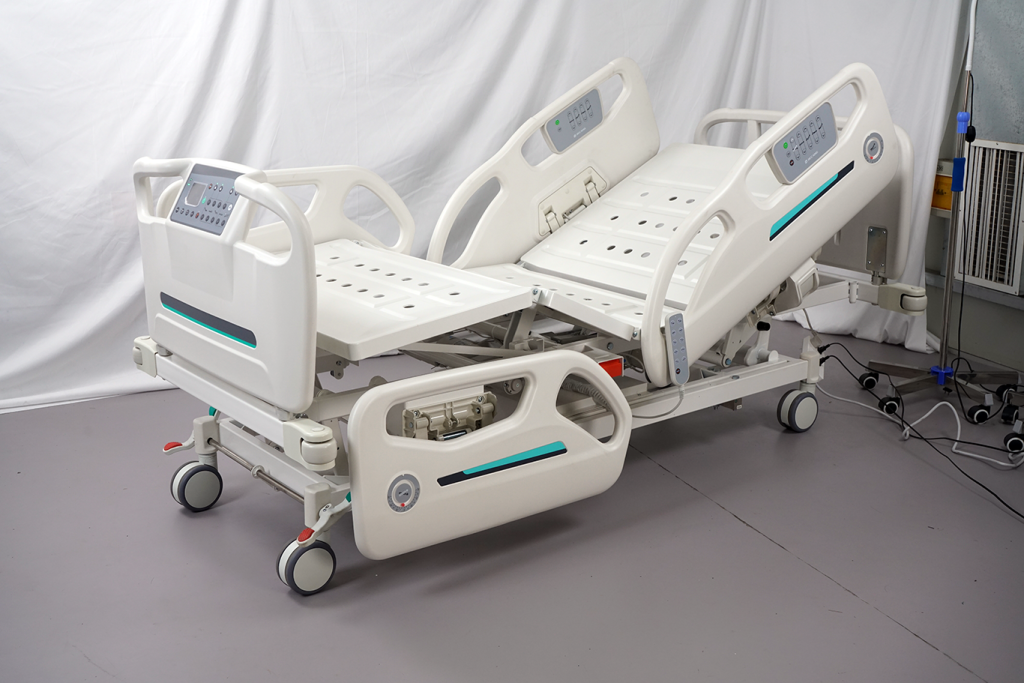

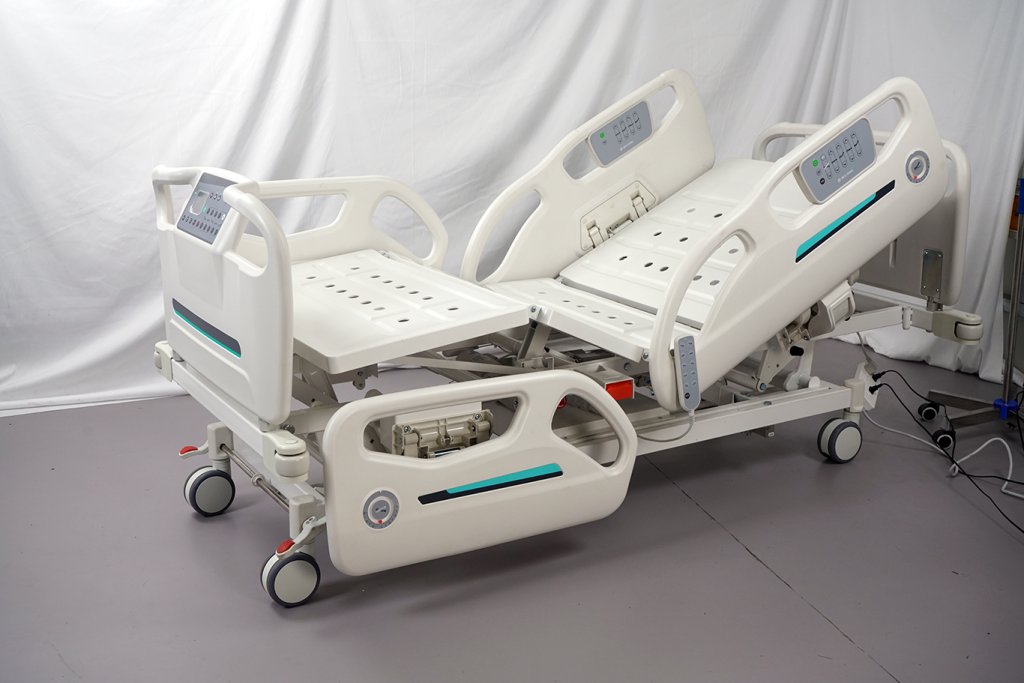

● Powered by medical-grade ultra-quiet DC motors, supporting one-touch cardiac chair position, CPR position, and examination position functions.
● Includes an extendable bed frame up to 2350 mm and adjustable two-section calf rest for enhanced lower limb comfort.
● Four IV pole sockets and drainage hook positions are provided, with optional IV pole configuration available.
● Integrated high-precision weighing system with accuracy of ≤100 g, enabling real-time patient weight monitoring and bed-exit alarm functionality regardless of patient position.
