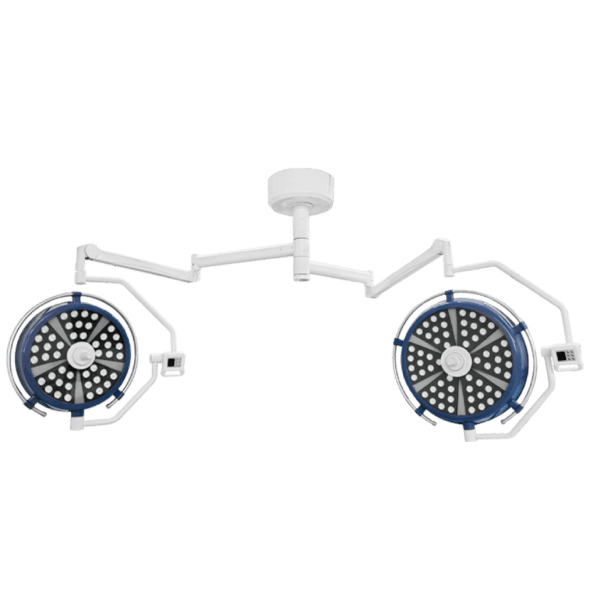

Aluminum-Type LED Surgical Operating Light YDE700/500

● Electric focusing with low heat, energy-saving and long service life.

● Laminar airflow design with flexible 360° positioning and sterilizable handle.

● OSRAM LED system with adjustable color temperature and bright, uniform illumination.

DESCRIPTION

● Adjustable color temperature with premium OSRAM LED modules, offering a range of 3000K–6700K while maintaining CRI ≥90 for accurate tissue recognition.
● Bright, uniform illumination through high-performance optical lenses, delivering up to 160,000 lux with independent stepless digital brightness adjustment for each lamp head.
● Highly reliable modular LED design, where each module operates with an independent electronic control system, ensuring continuous performance even if a single LED fails.
● Electric focusing system provides flexible spot size adjustment while maintaining high illuminance for both large open procedures and minimally invasive surgeries.
● Low heat emission with virtually no infrared or ultraviolet radiation, minimizing thermal impact on tissues and improving surgical comfort.
● Long service life up to 100,000 hours, significantly reducing maintenance frequency compared with traditional halogen lighting systems.
● Energy-efficient optical design optimized through 3D simulation for maximum lighting performance with lower power consumption.
● Laminar airflow compatible design minimizes airflow disturbance and maintains optimal operating temperature for extended LED lifespan.
● Premium spring arm suspension system enables smooth 360° rotation, flexible movement and precise positioning in various operating room layouts.
● Removable sterilizable handle cover supports 135°C high-temperature sterilization for enhanced hygiene and infection control.

PARAMETER

Parameter Unit 700 Lamp Head 500 Lamp Head
Central Illuminance Lux ≤160,000 ≤120,000
Color Temperature K 3000–6700 3000–6700
Color Rendering Index (CRI, Ra) ≥90 ≥90
Light Field Depth mm 1100 1100
Irradiance at Wavelength <400 nm W/m² ≤0.006 ≤0.006
Focus Adjustment Motorized Focusing Motorized Focusing
LED Configuration W / pcs 1 W × 60 LEDs 1 W × 45 LEDs
Power Supply AC 220 V, 50 Hz AC 220 V, 50 Hz
Input Power W 100 80
Average LED Service Life h 100,000 100,000
Minimum Installation Height m 2.8 2.8

VIDEO

WARRANTY

We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
