DESCRIPTION
● Precision medical micro-motor with gear-driven structure for smooth and stable operation.
● Strong, rigid structure ensures steady movement, accurate positioning, and long-term durability.
● 304 stainless steel frame, corrosion-resistant and easy to clean.

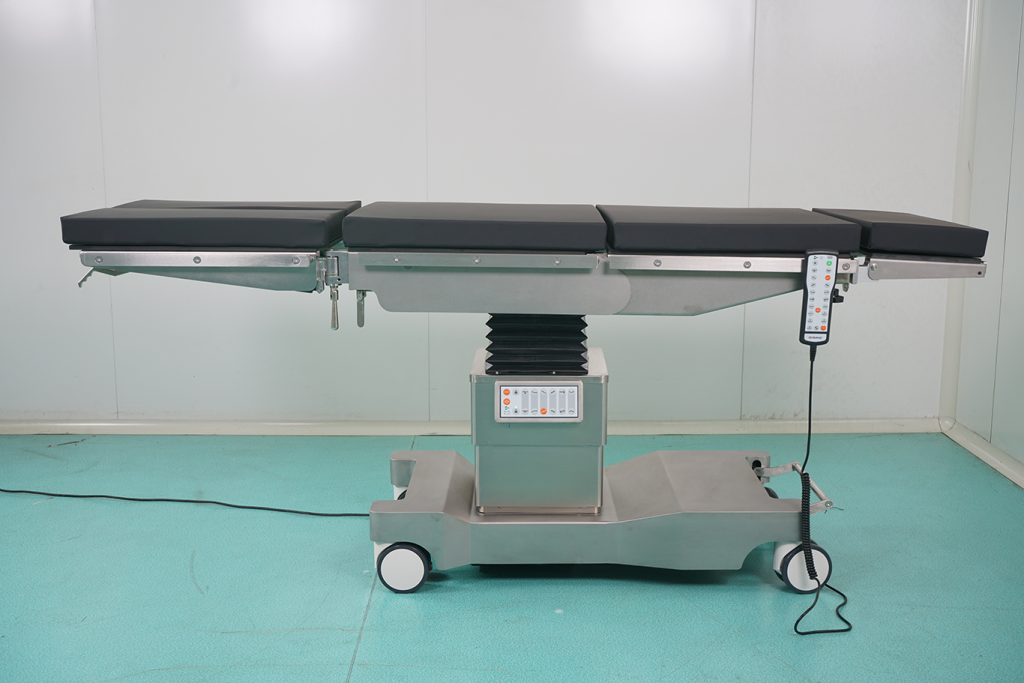

● 350 mm motorized horizontal travel for precise C-arm positioning.
● High-strength Compact Laminate tabletop with excellent durability and resistance.
● Scientifically designed base allows ample C-arm space while maintaining stability.
PARAMETER
| Product Model / Item | Parameter |
|---|---|
| Bed Body Dimensions | (2125 × 550) ± 10 mm |
| Bed Surface Height from Ground (without Mattress) | Minimum Height: (670 ± 20) mm
Maximum Height: (970 ± 20) mm |
| Lifting Stroke | (300 ± 20) mm (Electric) |
| Longitudinal Movement Stroke of Bed Surface | (350 ± 20) mm (Electric) |
| Head/Foot Tilt Angle | Head Tilt: 25° ± 2° (Electric)
Foot Tilt: 25° ± 2° (Electric) |
| Lateral Tilt Angle | Left Tilt: 22° ± 2° (Electric)
Right Tilt: 22° ± 2° (Electric) |

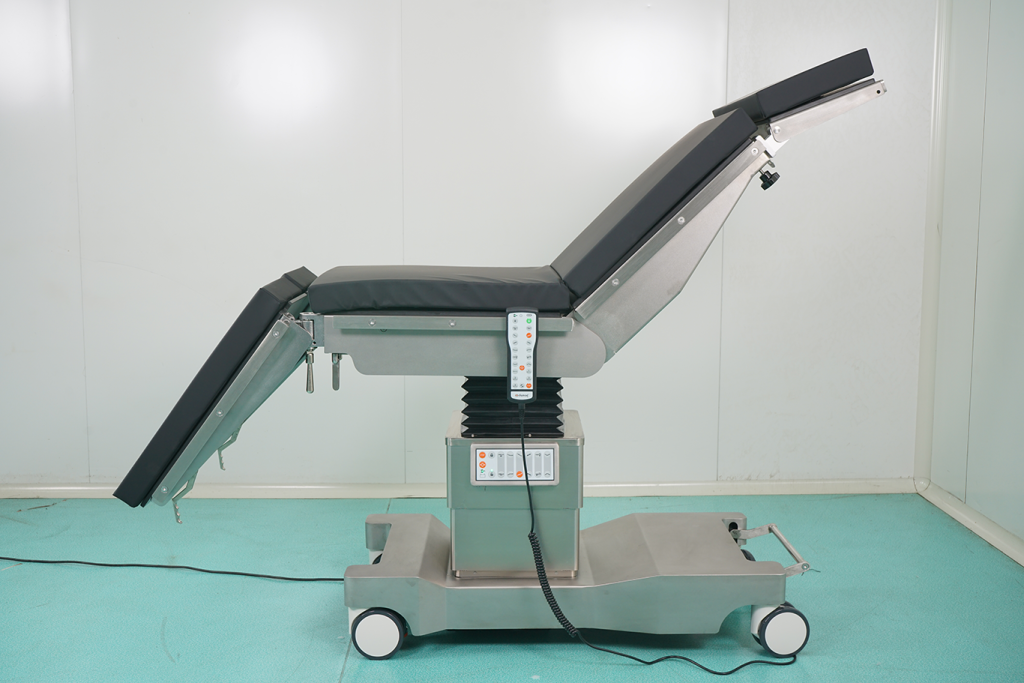

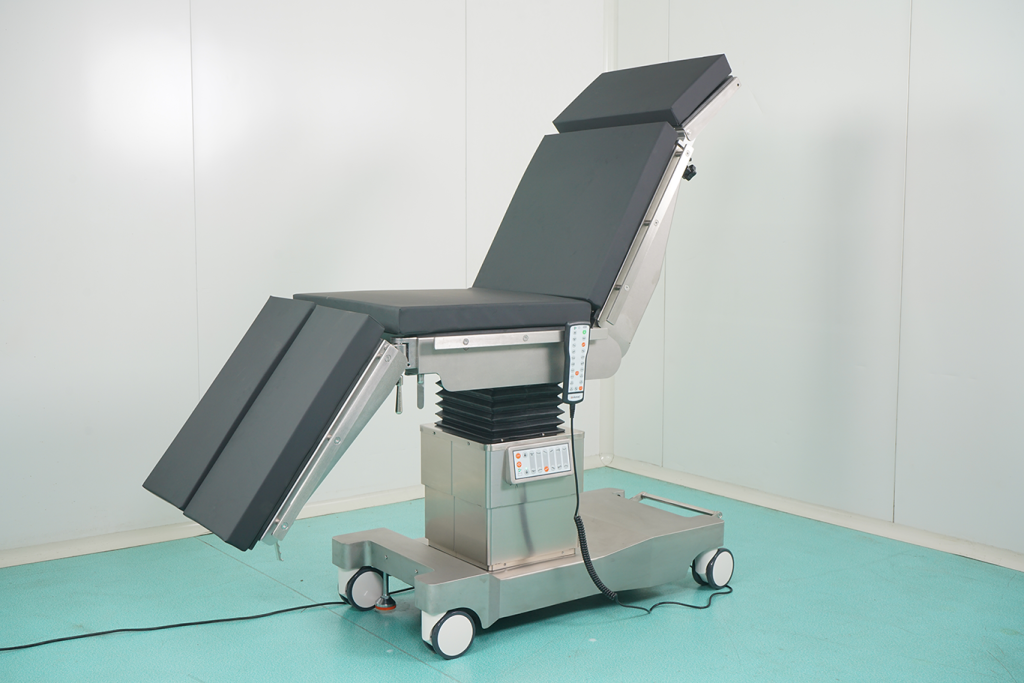

| Backrest Folding Angle | Upward Folding: 75° ± 2° (Electric)
Downward Folding: 35° ± 2° (Electric) |
| Leg Rest Folding Angle | Upward Folding: 20° ± 5° (Manual)
Downward Folding: 90° ± 5° (Manual) Outward Extension: 90° ± 5° (Manual) |
| Headrest Folding Angle | Upward Folding: 40° ± 5° (Manual)
Downward Folding: 90° ± 2° (Manual) |
| Lumbar Bridge Stroke | 120 mm (Manual) |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
