DESCRIPTION
● High-precision integrated weighing system with accuracy of ≤100 g, featuring one-touch measurement and real-time weight display on the nurse control panel, regardless of patient position.
● Heavy-duty steel frame construction with advanced welding technology, providing excellent structural stability and a safe working load of 240 kg.

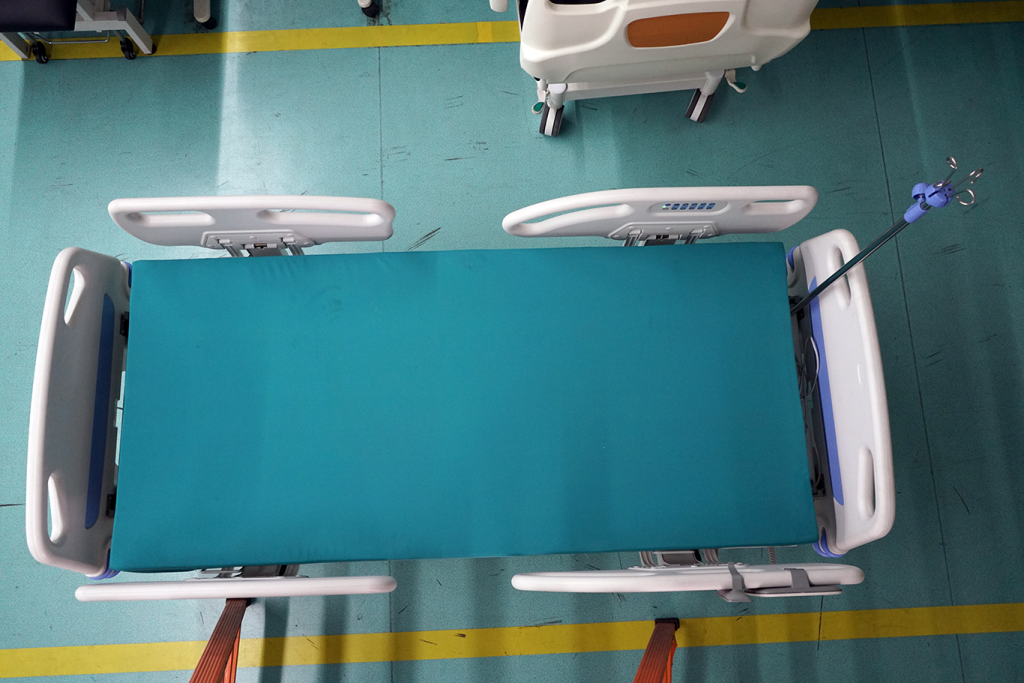

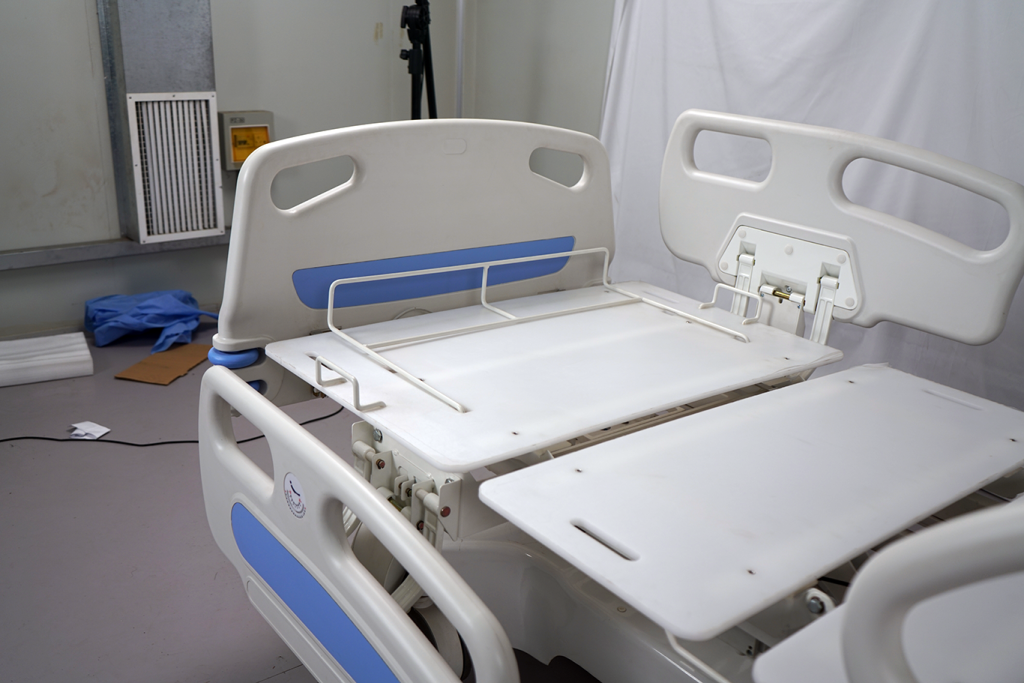

● Radiolucent acrylic bed platform offers high transparency, heat resistance, corrosion resistance, and full-body X-ray compatibility, with integrated cassette holder for upper-body imaging.
● Surface finished with eco-friendly antibacterial electrostatic powder coating, ensuring corrosion resistance, anti-rust protection, and easy maintenance.

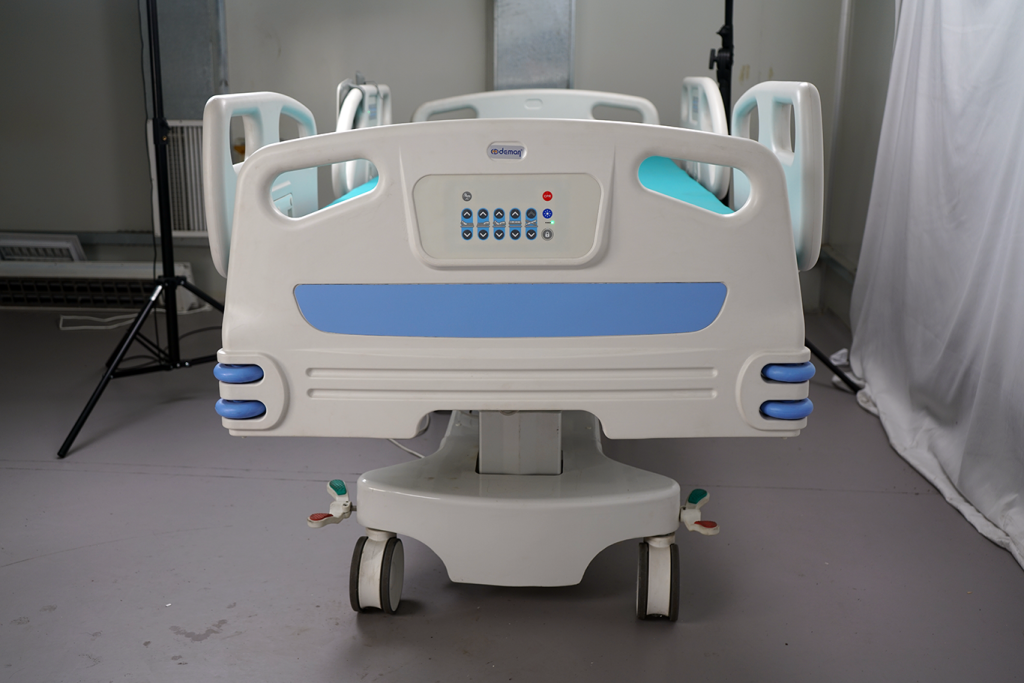

● HDPE headboard and footboard with quick-lock removable design, easy-clean textured surface, integrated nurse control panel, and protective corner bumpers for impact resistance.
● Four-section HDPE split side rails with built-in damping system for smooth, quiet operation, compliant with IEC safety standards for enhanced patient protection.

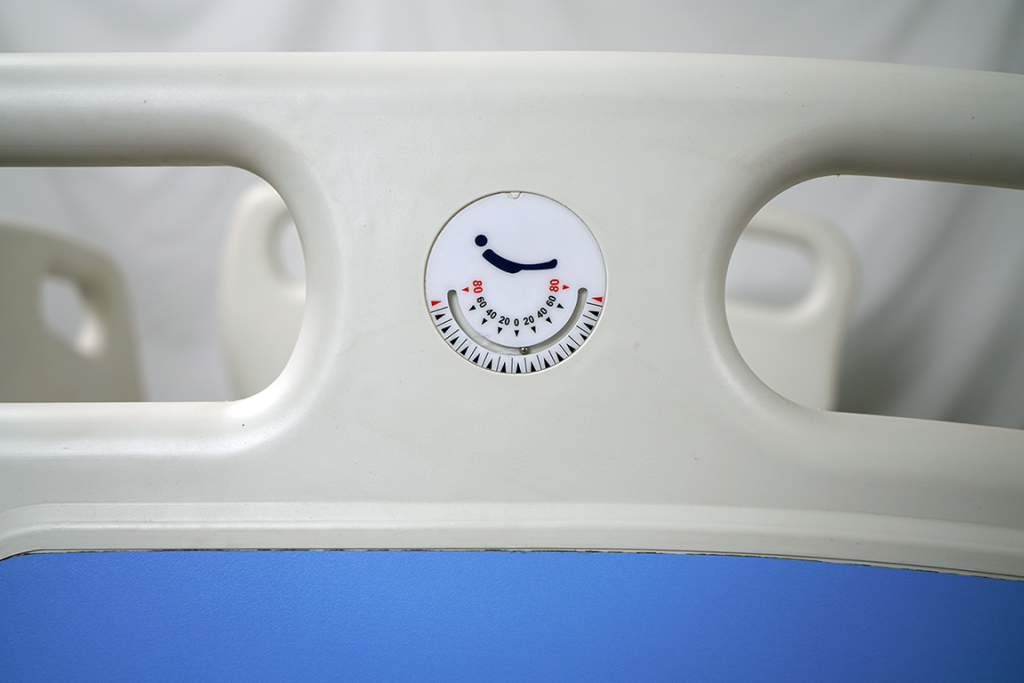

● Integrated angle indicators clearly display backrest elevation and bed tilt angles, while built-in patient and caregiver control panels provide convenient bedside operation.

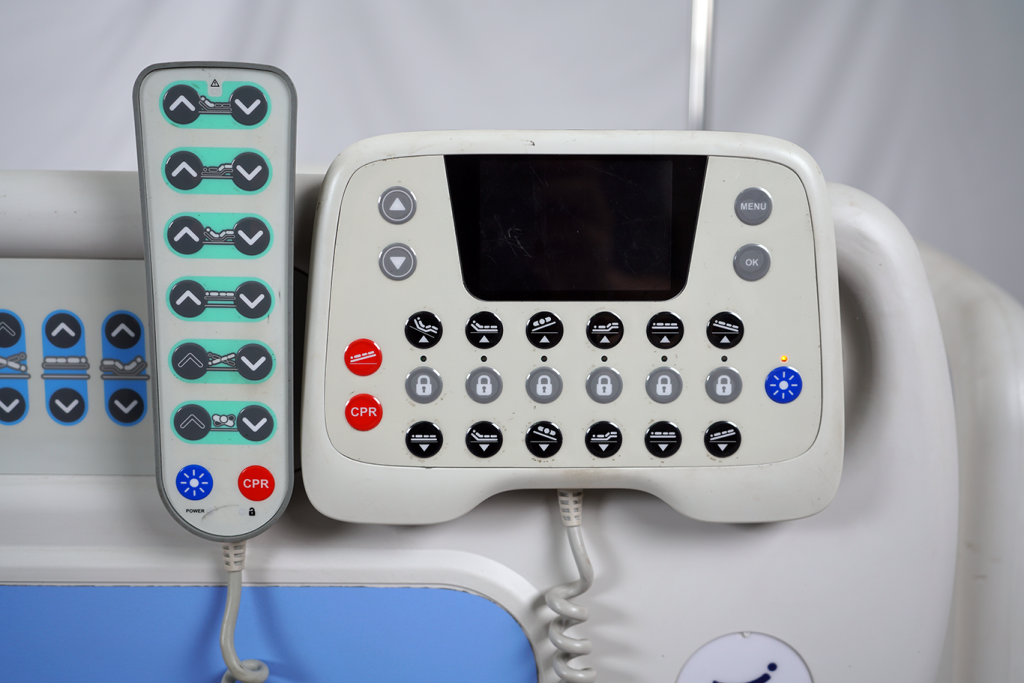

● Multiple control systems including footboard panel, nurse station panel, handset controller, and side rail control panels, with display of bed position, angles, height, and weighing data.

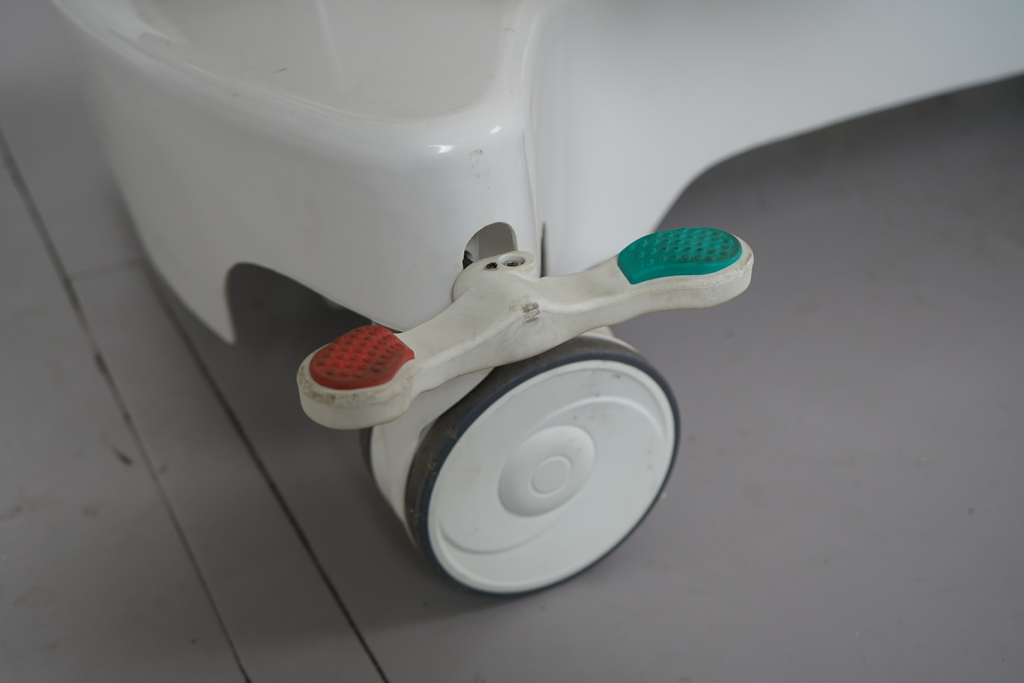

● Central locking dual-sided casters (Ø150 mm) with lock, directional, and free-movement modes, offering quiet movement, strong braking force, and excellent stability.
● Built-in ABS storage compartment under the bed provides convenient space for medical supplies and patient essentials.
● Extendable bed frame up to 2450 mm with adjustable two-section calf rest for improved leg support and patient comfort.
● Equipped with anti-slip mattress retainers, restraint belt fixing points, drainage hooks, and manual CPR release levers on both sides for enhanced safety and emergency response.
● Powered by medical-grade silent motors with smooth motion control, low noise operation, long service life, and high reliability for clinical use.
